17

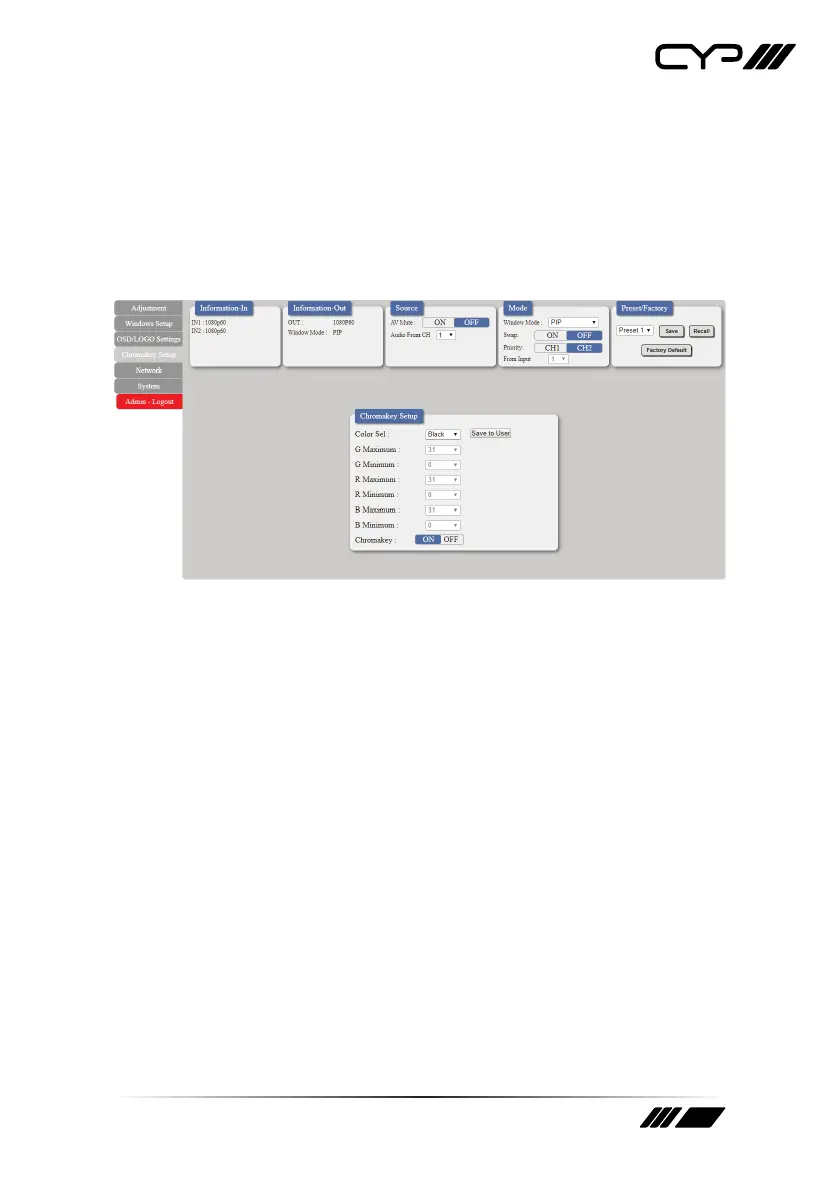

Chromakey Setup Tab
This tab allows for the activation and conguration of Chromakey mode.
Enabling the Chromakey mode will automatically switch to displaying
Input 1 underneath Input 2 with the selected key values applied to
Input 2’s source video. The unit comes with 8 pre-dened standard key
denitions (White, Yellow, Cyan, Green, Magenta, Red, Blue, Black) and a
User congurable denition set.
1) Chromakey Setup: This section provides all controls relating to the
chromakeying function of the unit.
■
Colour Set: Select from a list of pre-set chromakey ranges (White,
Yellow, Cyan, Green, Magenta, Red, Blue, Black) to perform simple,
hassle-free keying or select “User” to enter in custom keying value
ranges. Clicking “Save to User” will copy the currently selected pre-
set ranges into the “User” slot for editing.
■
G Maximum/Minimum: When “User” is selected, sets the
maximum and minimum range for the green component of the
chromakey (from 0-255).
■
R Maximum/Minimum: When “User” is selected, sets the
maximum and minimum range for the red component of the
chromakey (from 0-255).
■
B Maximum/Minimum: When “User” is selected, sets the
maximum and minimum range for the blue component of the
chromakey (from 0-255).
■
Chromakey: Enable or disable the chromakey function of the unit.
When chromakeying is enabled, the unit will automatically switch
