25
6.3.6 Multi-Zone Video Wall Layouts
Though this unit’s input is limited to a maximum resolution of 1080p, it is
possible to generate large, flexible, video walls from 4K, or larger, sources
by using a traditional 4K+ capable video wall splitter product with each
output of the video wall splitter generating a 1080p block of video
which is then further distributed to each group of Video Wall Rotation
Processors.
Note: It is not possible for a display to be used in more than one zone at a
time, or cross zone borders.

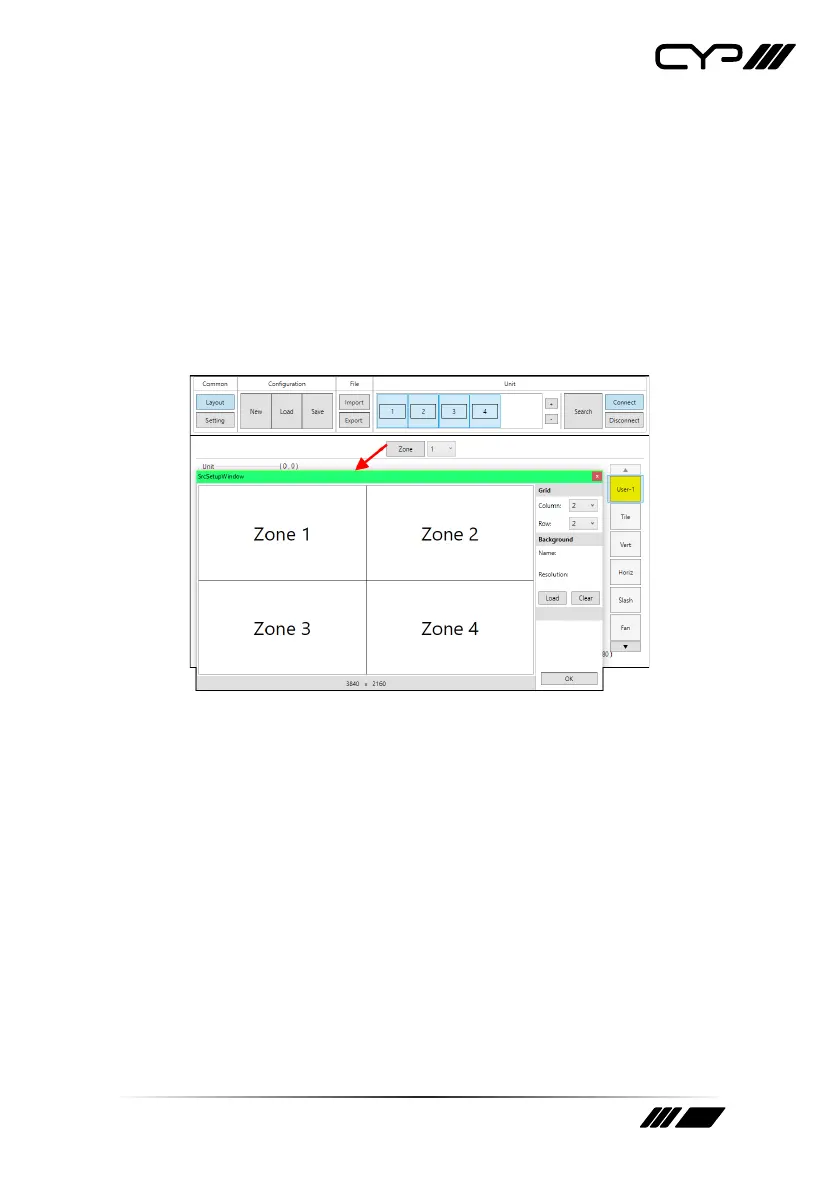

The Zone feature makes managing, and visualizing, this special
arrangement of displays easier. Simply click on the “Zone” button to
launch the Zone Source Setup window. Select the number of horizontal
and vertical zones needed. The total effective resolution of all zones
together is displayed at the bottom of the window. For example, a 2×2
zone arrangement would be used if the original source (before being
split) is 4K (3840×2180). Click “OK” to accept the new zone configuration
and return to the main layout window. To arrange the displays used in
a specific zone, select the zone from the dropdown and then add the
displays that belong to that zone (via the “Search” function or the “+”
button).
1) Zone Button: Click this to launch the Zone Source Setup window.
2) Zone Selection: This dropdown selects the zone to view or modify.
