4
9
OSD INFO & ENTER Button:
Menu Operation: When in a menu, press to conrm a selection
within the OSD or to go deeper into a menu item.
Scaling/Warping Mode: Press to display information about the
unit on the OSD including details about video, audio and Ethernet.

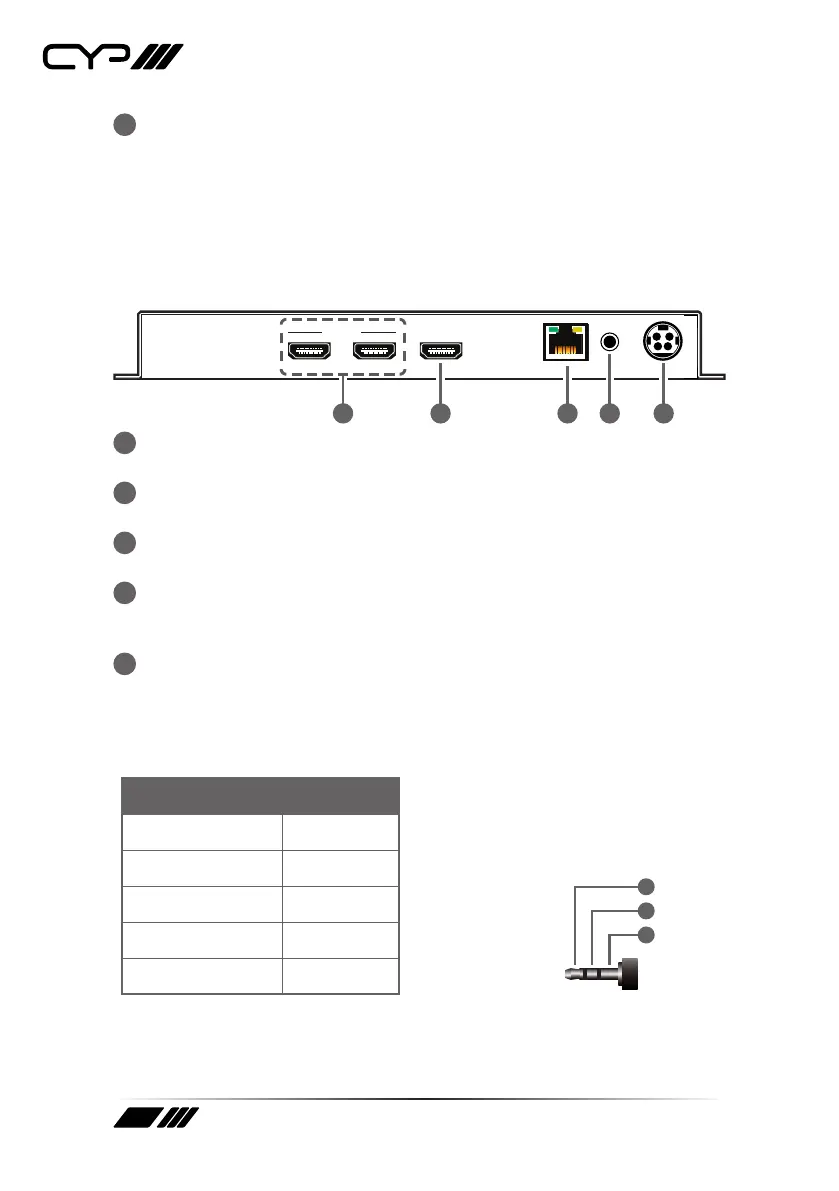

6.2 Rear Panel
12
HDMI OUTHDMI IN
CONTROLRS-232 DC 24V
1 2
3 4
5
1
HDMI IN 1~2 Ports: Connect to HDMI source equipment such as
media players, game consoles, or set-top boxes.
2
HDMI OUT Port: Connect to an HDMI TV, monitor, or amplier for
digital video and audio output.
3
CONTROL Port: Connect directly, or through a network switch, to
your PC/laptop to control the unit via the control software or Telnet.
4
RS-232 Port: Connect directly to a PC, laptop, or other serial control
device with a 3.5mm adapter cable to send RS-232 commands to
control the unit or control it via the control software.
5
DC 24V Port: Plug the 24V DC power adapter into this port and
connect it to an AC wall outlet for power.
6.3 RS-232 Pinout and Defaults
Serial Port Default Settings
Baud Rate 19200
Data Bits 8
Parity Bits None
Stop Bits 1
Flow Control None
3.5mm to DE-9
Adapter Cable
RxD
TxD
GND
1
2
3
