37
INSTALLATION
Tips for the installer
The hob is equipped with a terminal block allowing dierent connections appropriate for a
specic type of power supply.
Terminal block allows the following connections:
- single-phase 220-240 V ~
- two-phase 380-415 V 2N~
The hob can be adapted to a specic type of power supply by bridging the appropriate
terminals according to wiring diagram. Wiring diagram is placed on the hob's underside. The
terminal block can be accessed by removing the lid on hob's underside. Remember to match
the power cord to the type of connection and the hob's power rating.
Important!
Remember to connect the neutral lead to correct terminal block clamp, marked with
. The electrical system supplying the hob must be protected by a properly selected
tripping device or a circuit breaker allowing to disconnect the power supply in an
emergency.
Before connecting the appliance to power, please carefully read the information provided on
the rating plate and wiring diagram.
Connecting the hob other than shown on the wiring diagram may damage the hob.
CAUTION! The installer is obliged to provide the user with "appliance electrical connection
certicate" (enclosed with the warranty card). After installation, the installer should also provide
information on the connection made:- single-phase, two-phase,- conductor cross-section,-
electrical protection (fuse type).

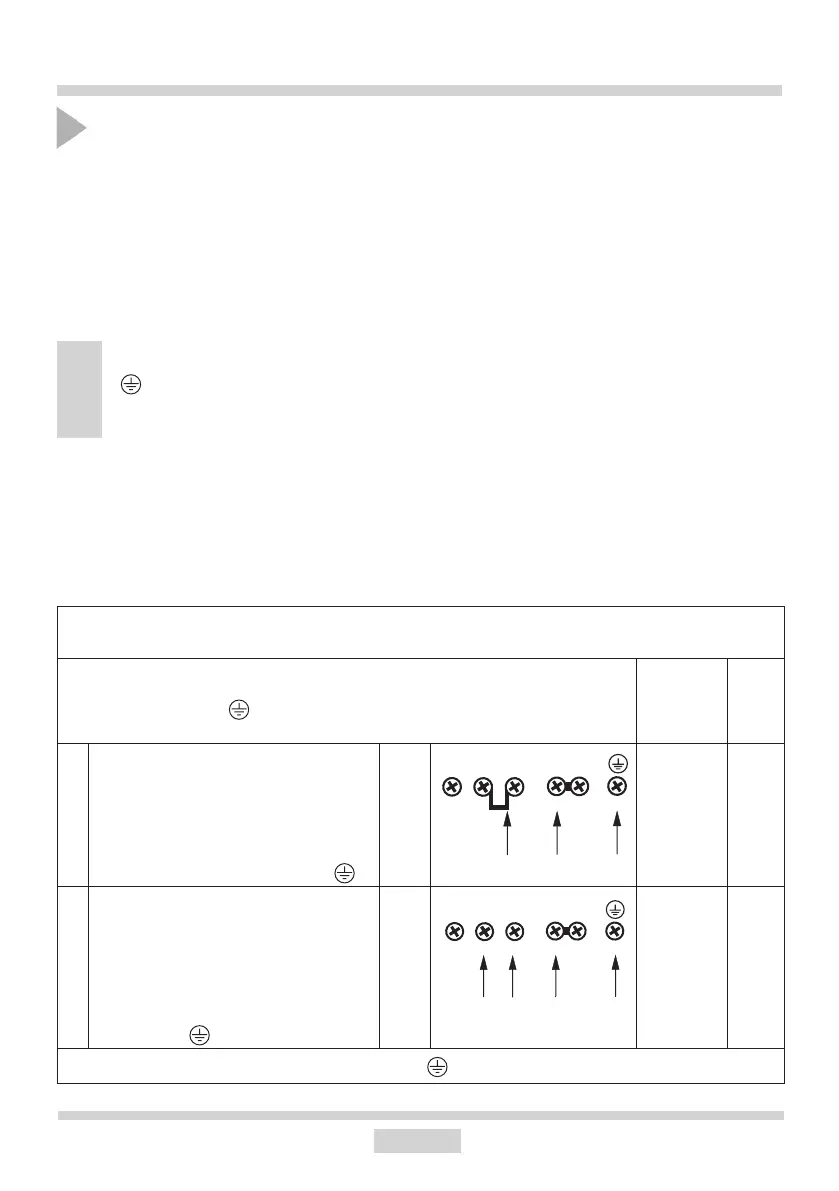

WIRING DIAGRAM
Danger! High Voltage!
Note! For each connection the protective earth (PE) conductor must be connected
to the terminal marked
.
Type/
conduc-
tor cross
section
Fuse
pro-
tec-
tion
1 The 220-240 V AC 50/60 Hz single
phase connection. Bridge the L1 and L2
terminals. Connect the phase conductor
to the L1 terminal and tighten the bolt.
Connect the neutral conductor to the N
terminal. Connect the protective earth
PE conductor to the PE terminal (
).
1N~ HO5VV-
F3G4
3x4 mm²
32 A
2* The 220-240/380-415V AC 50/60 Hz two
phase connection. Connect the phase
L1 conductor to the L1 terminal and the
phase L2 conductor to the L2 terminal
and tighten the bolts. Connect the neu-
tral conductor to the N terminal. Connect
the protective earth PE conductor to the
PE terminal (
).
2N~ HO5VV-
F4G2,5
4x2.5 mm²
16 A
L1=R, L2=S, L3=T; N = neutral conductor terminal;
= protective earth (PE) conductor terminal
L
N
PE
N N
L1L2L3
L1L2
N N
NPE
L1L2L3
