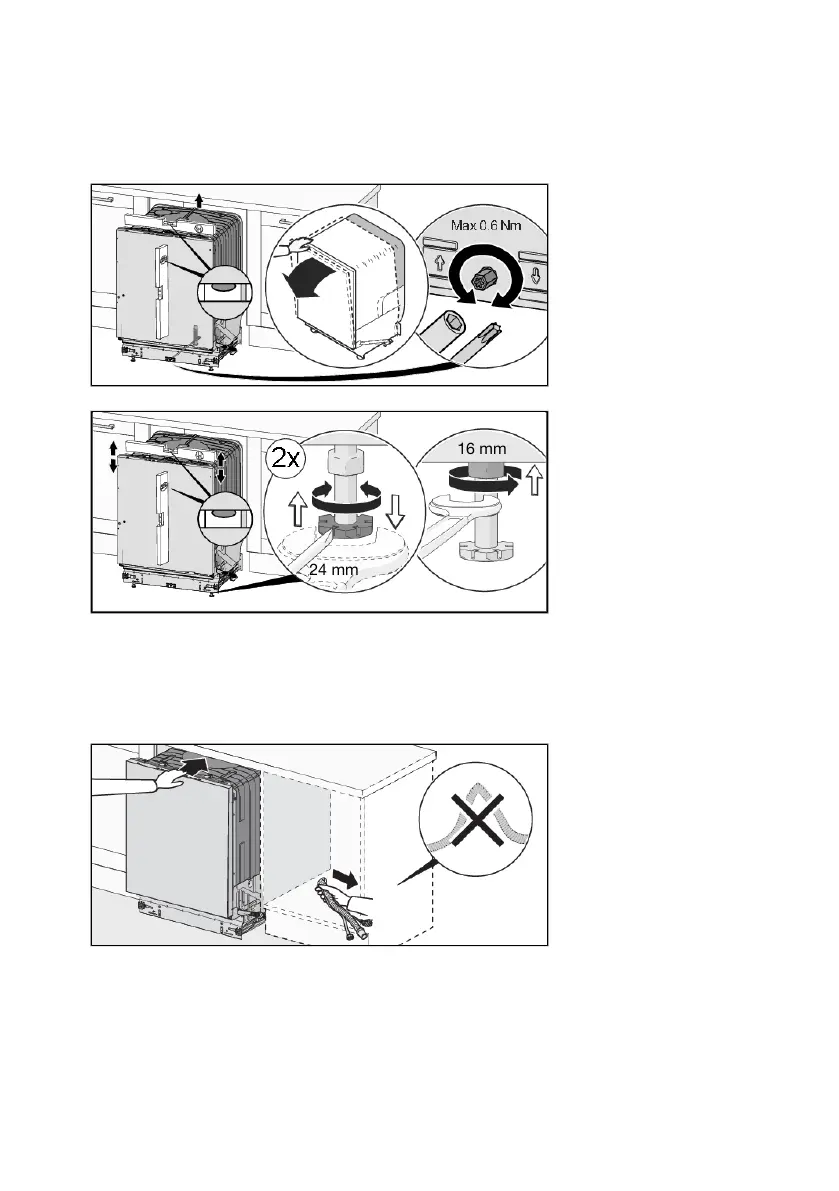

Adjust the height and slide the dishwasher into place
1. Start by measuring the height from the floor to the bottom edge of the worktop.
2. Measure the height from the floor to the top edge of the dishwasher.
3. Lean the dishwasher forwards a little and adjust the rear foot with the screw at the front of the
dishwasher. Turn clockwise to lower or anticlockwise to raise.
4. Adjust the front feet by turning them clockwise to raise and anticlockwise to lower the dishwasher.
24 mm
16 mm
5. Check that there is an air gap of at least 3 mm between the underside of the worktop and the top
edge of the dishwasher.
6. Slide the dishwasher into place.
• Pull the inlet and drainage hoses and the supply cord when sliding the dishwasher into place.
• Check that the drainage hose has no kinks or sharp bends. Also check that there is nothing
that can damage the hoses.
• Check that the machine is installed such that the door opens freely, otherwise door lock
functionality may be disrupted.
7. Make any final adjustments to the feet and tighten the lock nuts on the front feet.
36
