1 — OVERVIEW
pg. 1
Return to TOC Curtis Model 3150R – April 2025
1 — OVERVIEW
e Curtis Model 3150R gauge provides a 1.54 inch (39.1 mm), 240 × 240 pixel LCD that enables
visualization of critical information and a unique brand identity through a fully customizable
user interface. e device provides ve preset user interfaces that can be used as out-of-the-box
applications. Curtis engineers can customize the 3150R to meet OEM or market requirements.

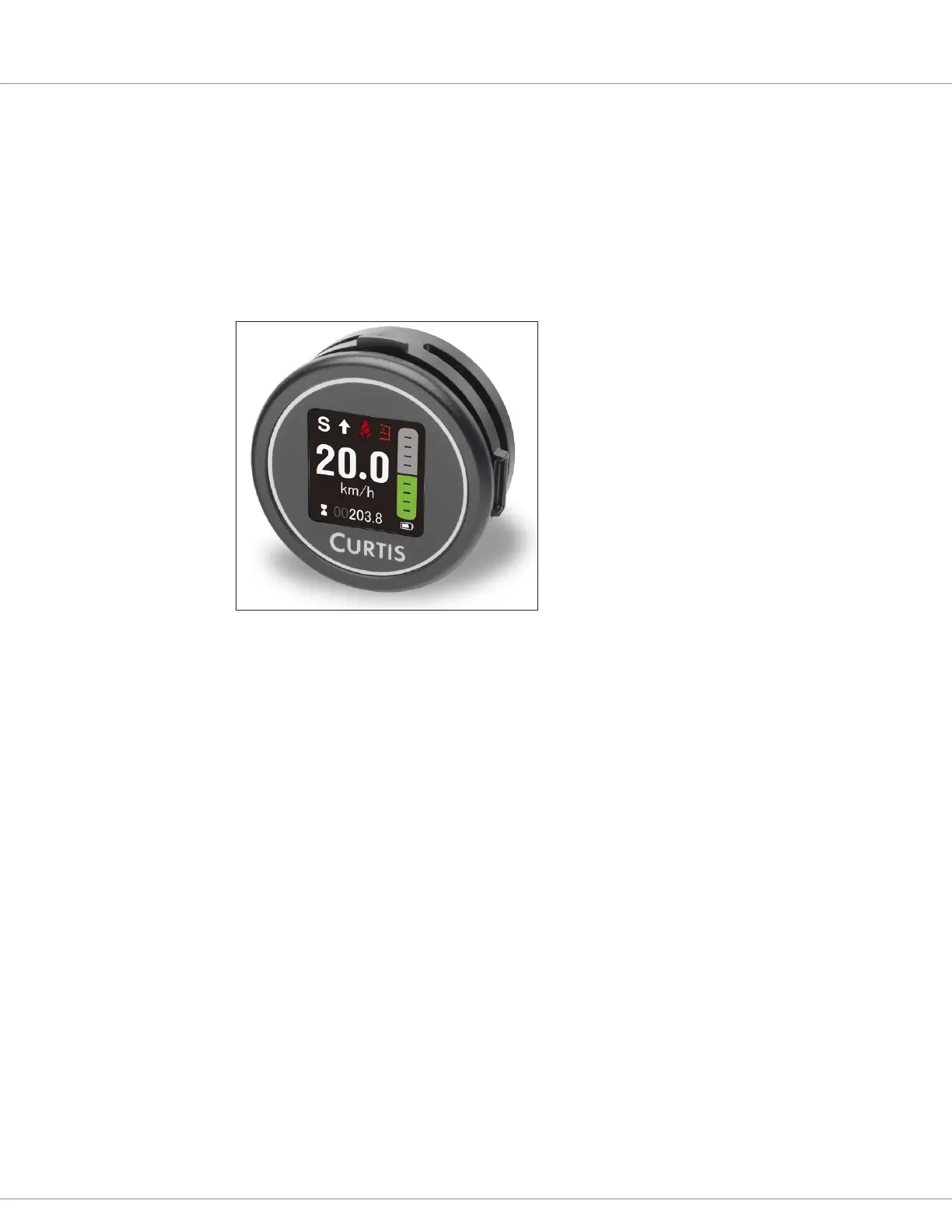

Figure 1-1
Curtis Model
3150R
All models provide inputs for CAN and a pin that can be congured as either a switch input or
a lift lockout driver. Some models include two switch inputs; other models provide two serial
communication interface (SCI) inputs for Curtis controllers that support the SCI.
The 3150R complies with relevant US and international regulations. For details on regulatory
compliance, see the Specications appendix.
USING THIS MANUAL
e next section describes the 3150R’s features. e following list describes the chapters that apply
to various types of tasks:
• Vehicle operators should read the Using the 3150R chapter.
• Technicians who work on installation and wiring, or who need information on
specications, should read the Installation, Wiring and Conguration chapter and the
Specications appendix.
• Application developers should be familiar with the following chapters:
– Program Menu Parameters
– Monitor Menu Parameters
– CANopen Communications
