3 — INSTALLATION AND WIRING
Curtis Model 3401T – August 2022 Return to TOC
pg. 22
3 — INSTALLATION AND WIRING
is chapter explains how to install and wire the 3401T.
INSTALLING THE 3401T
Install the 3401T in a location that will keep the device clean and dry. e recommended panel
cutout is 92.1 (+0.8/0) × 138.1 (+0.8/0)mm, with a panel thickness between 2.0–4.0mm. Figure 3-1
describes the dimensions.

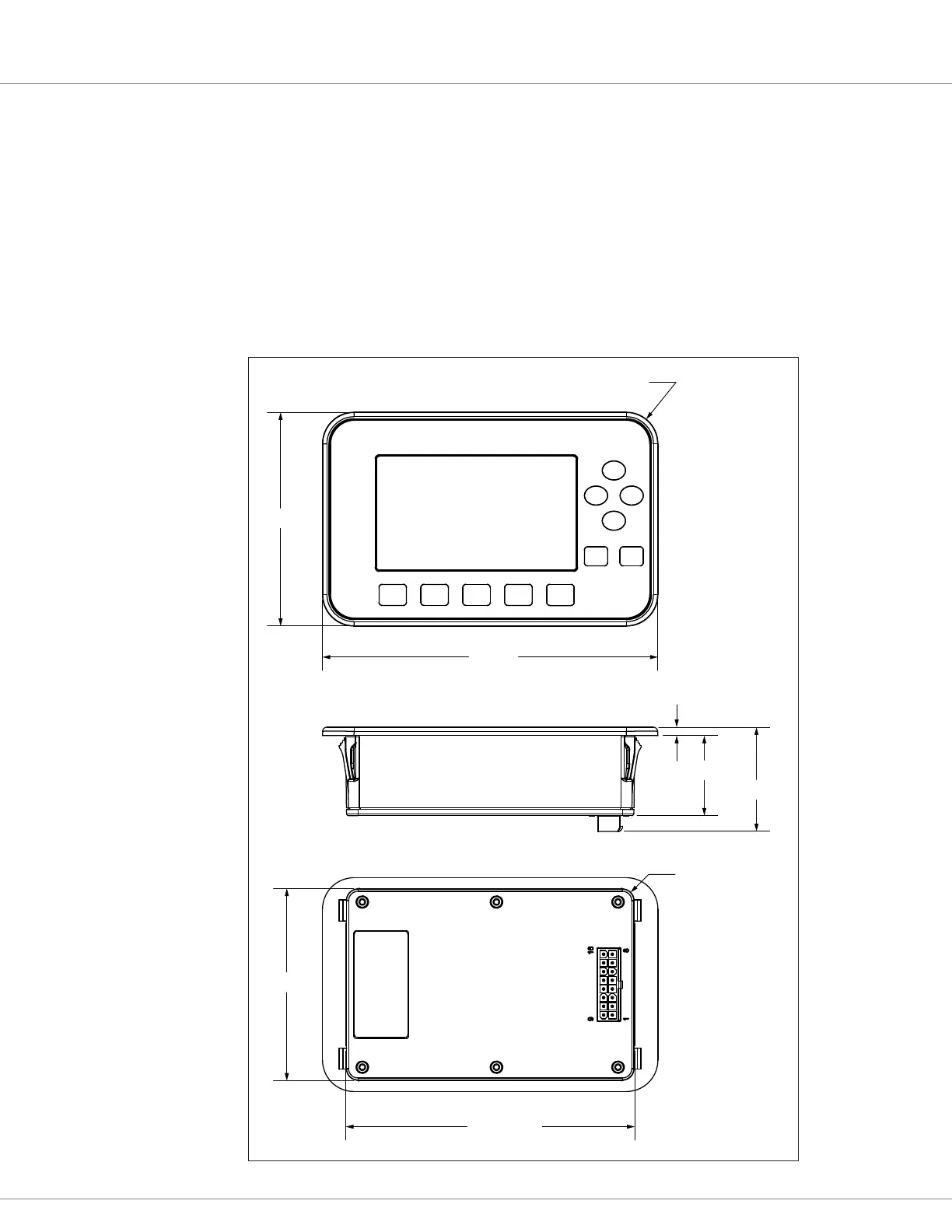

Figure 3-1
Mounting
Dimensions
OUTLINE FOR 3401T
137.8±0.3
91.8±0.3
4XR5.5
160±1
102±1
4XR15
38.2±1
4±0.3
49.7±1
