2 — INSTALLATION AND WIRING
pg. 21
Return to TOC 1229 Manual - OS 1.8 RevA - May 2021
1229 CONTROLLER
Switch 4
J1-11
Switch 3
J1-3
LIFT
Switch 2
J1-10
SPEED MODE
Switch 1
J1-19
Pot 3
J1-7
Analog GND
J1-6
Pot 1
J1-13
REVERSE
+5V Out
J1-18
Switch 5
J1-5
+17V Out
J1-17
GND
J1-16
SERIAL PORT
CAN PORT*
MAIN
J1-23
J1-15
J1-22
J1-4
Driver 4
Driver 5
Driver 3
Driver 2
MAIN
BRAKE
J1-20
Driver 1
INTERLOCK
BATTERY
(24–48V)
KEYSWITCH
B+
B−
J1-8
KSI
GND
J1-16
FLOW
RXD
J1-12
TXD
J1-9
+17V Out
J1-17
CAN L
J1-2
CAN H
J1-1
SPD ENCODER
THROTTLE
SPD LIMIT or
WATER CONTROL
TRACTION
MOTOR
M1
M2
J1-21
Driver 6
BRUSH LOWER
SQUEEGEE
2A
2A
J1-14
Pot 2
+5V Out
J1-18
Notice:
For 1229-xx05 Models ONLY:
Connect (wire) the Main and EM Brake drivers
to the Vcap (B+) as illustrated to enable:
1) Key-Off Decel
2) Push-too-Fast with KSI = Off
3) Status Beacon [not shown] (Driver 6)
* Generic 1229-xx51 models are WITHOUT internal CAN termination
M
M
M
M

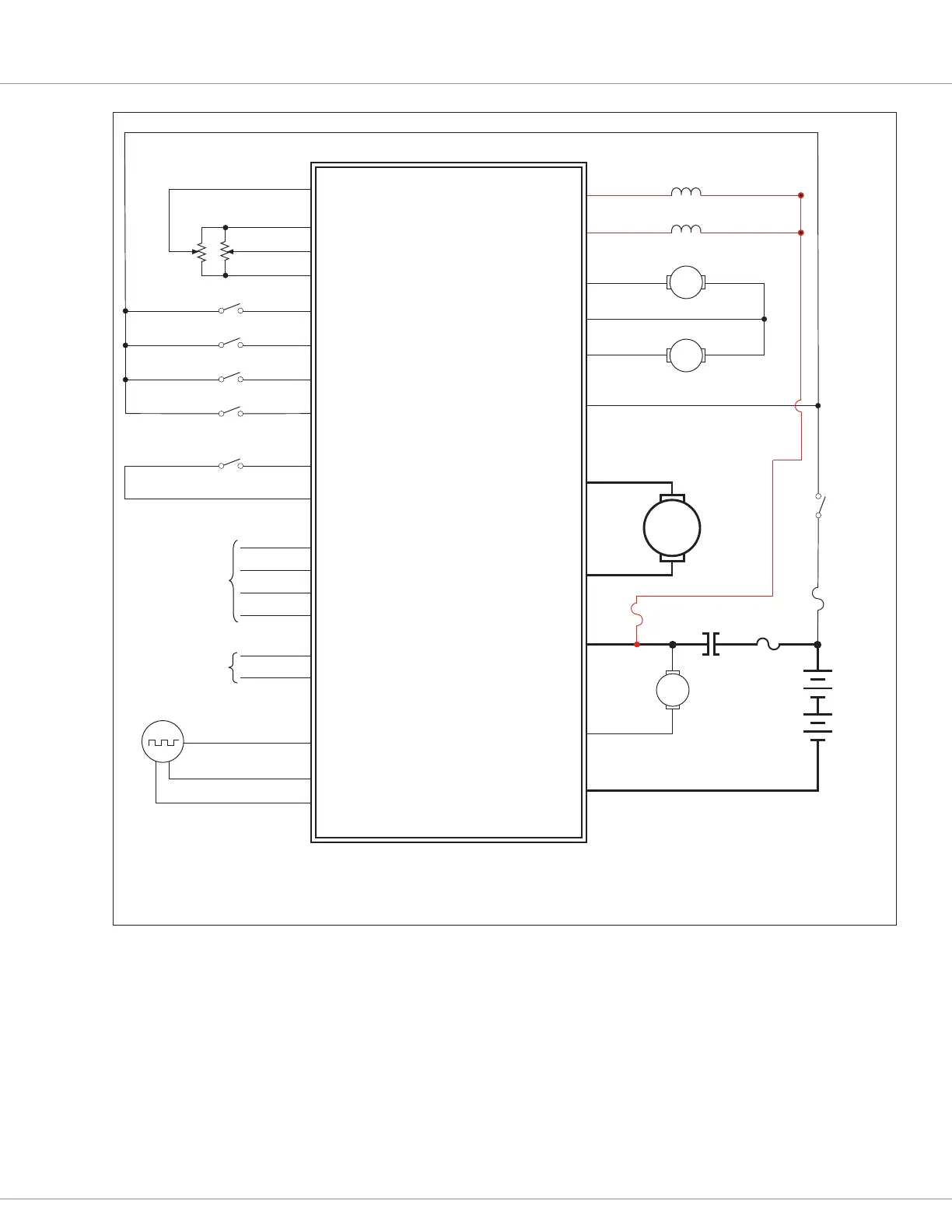

Figure 9
1229-xx05 Models with MAIN & EM BRAKE wired to Vcap
Note that the wiring diagrams shown are examples only. e 1229 controller is usable in many
dierent wiring congurations and applications via its programmable I/O and mapping functions.
For additional technical support, contact the local Curtis distributor or the regional Curtis sales
oce. See the Curtis website: https://curtisinstruments.com.
