1 — OVERVIEW
pg. 1
Return to TOC Curtis Model 1220E – August 2022
1 — OVERVIEW
e Curtis Model 1220E is a EN13849 compliant brushed permanent magnet motor controller for
electric power steering (EPS). e 1220E performs as the steering system controller, interpreting the
steering command input and wheel position feedback, then driving the steering motor to move the
steered wheel(s) to the desired position.
e steering motor must be speed reduced to get the high torque required to rotate the drive wheel.
Typically this is done with a gearbox around 50:1 and a chain or gear with an additional reduction
of around 4:1. e steering command comes either from a linear potentiometer, an analog voltage
sensor, or a quadrature encoder. e command is interpreted as an absolute position or a relative
position request. e wheel position feedback comes either from a linear potentiometer, an analog
voltage sensor, or quadrature encoder.

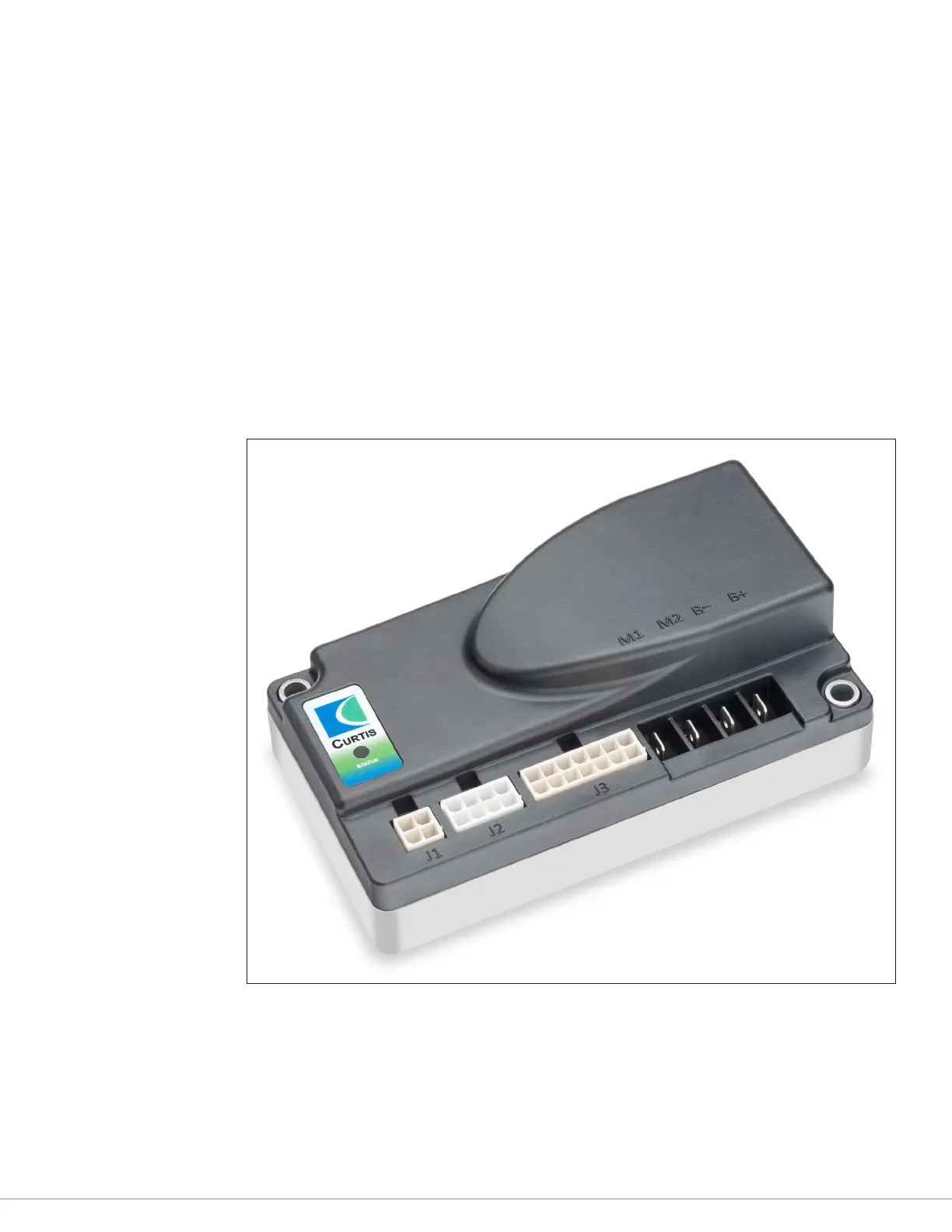

Figure 1
Curtis 1220E
electric steering
controller.
e 1220E works only with Curtis AC traction controllers with embedded VCL. A “handshake” with
the traction controller is required at startup to enable operation.
Intended applications are material handling vehicles such as reach trucks, order pickers, stackers,
“man up” warehouse trucks, and other similar industrial vehicles.
