Sightline
Multi View Integration
ACPMB-45W
Wireless Smart-Play Integration with Multi Camera Inputs
for Select Mercedes Benz Vehicles with NTG4.5 / NTG4.7 System

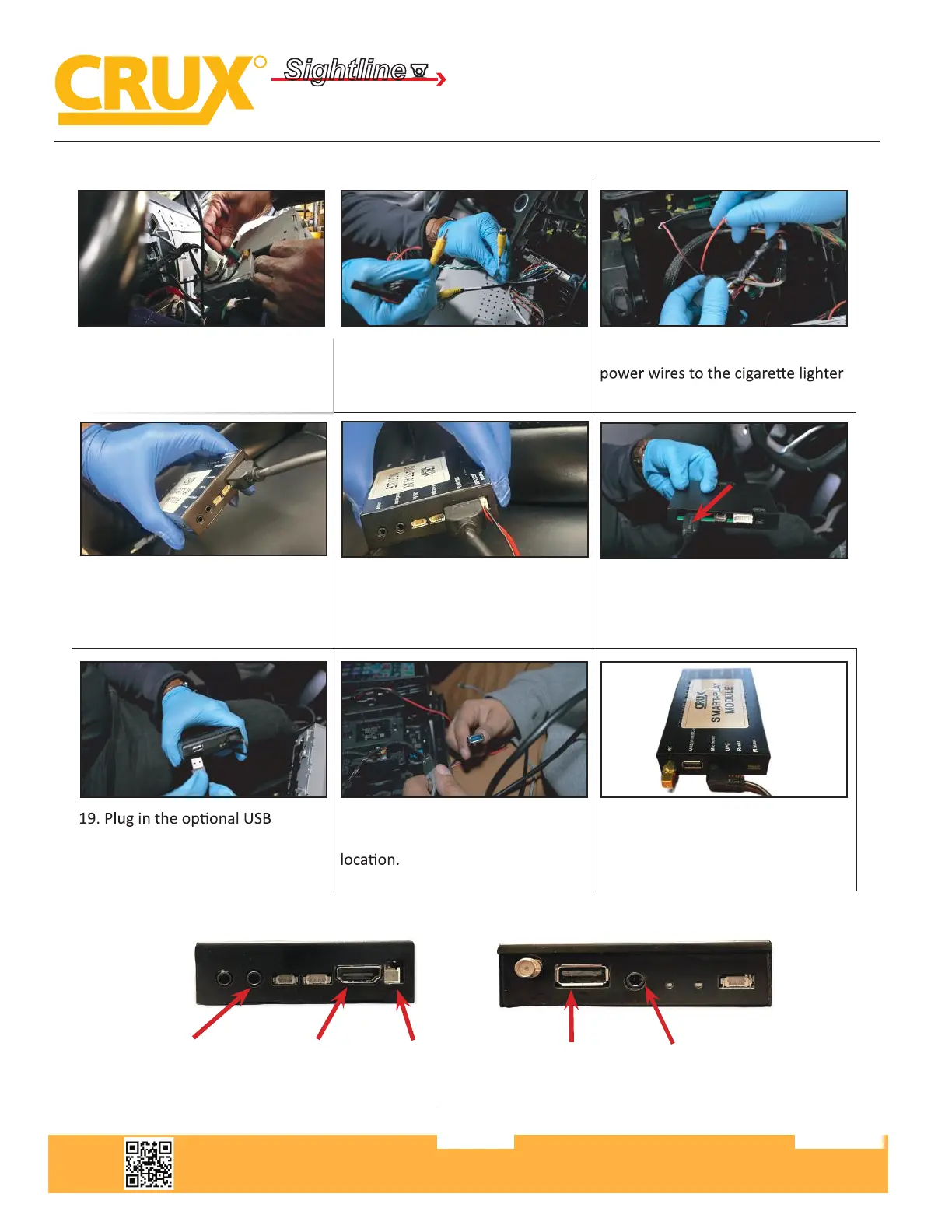

13. Plug the ACPMB-45W LVDS
Video cable connector to the radio.
14. Install the front and rear
cameras (if applicable) and power
using the power wires provided.
15. Tap the Smart-Play module
wires
16. Plug in the 4K HDMI cable
provided with the kit to the
Smart-Play module.
17. Plug the 2 pin power wire
connector to the Smart-Play
module.
18. Plug the other end of the 4K
HDMI cable to the ACPMB-45W
module HDMI port.
extension cable to the Smart-Play
module for wired AA/ Carplay
20. Run the other end of the USB
extension cable to an accessible
21. Plug the AMI-3.5 MM Aux
adapter cable to the factory AMI
port and the other end to the
Smart-Play module Line Out.
Line Out (Aux) HDMI Power Port USB Mic In
