LVDS
IN
LVDS
OU T
123
O N
ACPBM-77Y Module
PO WER / CA N
FR ONT
CA M
RE AR
CA M
FW
UPDAT E
UART
POWER/VIDEO
Back of Headunit
ACPBM-77Y
Vehicle Harness
Factory Harness
+12V Switching
Output 1 (Pink Wire)
Power/CAN
Harness
Vehicle Auxiliary
Input (AUX input)
Female RCA to
3.5mm jack
Male L & R RCA
Outputs (Audio)
AUX
iDrive Knob
Retention Cable
Smartphone Cable
Wireless Adapter
Smartlink Cable
OR
USB Input
Microphone
Smart-Play Module
Pink factory
LVDS Cable
CRUX LVDS 1
Cable
CRUX LVDS 2
Cable
Fiber-Optic
Cable
Crux Interfacing Solutions • 21541 Nordhoff Street, Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.091322
7 of 17
R
INTERFACING SOLUTIONS

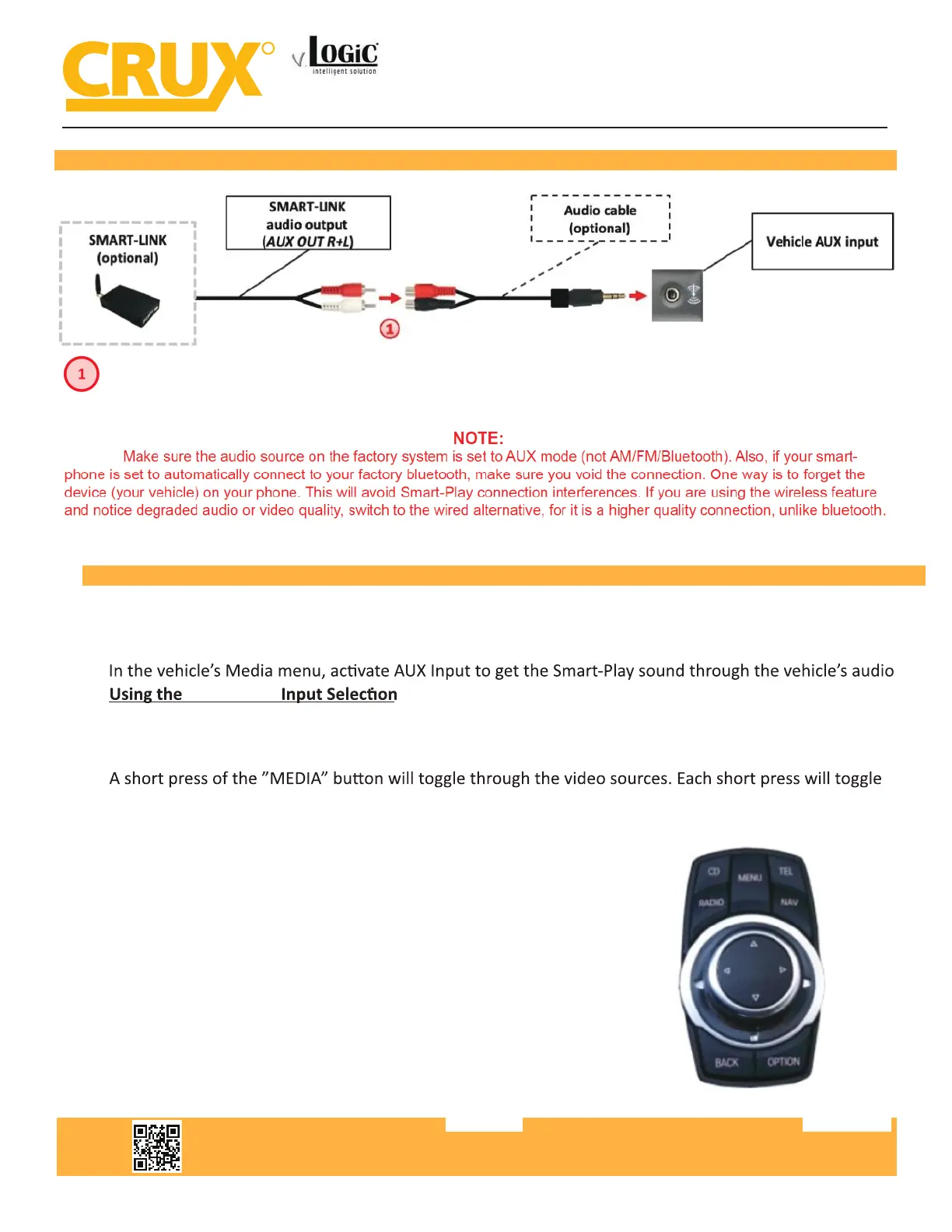

SMART-LINK AUDIO CONNECTIONS
By using an audio cable (sold separately),
connect the audio output of the SMARTLINK module to the vehicle AUX input.
ACPBM-77Y
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
CONNECTING THE SMART-PLAY INTERFACE:
plugged in to the USB port using the smartphone’s OEM charger/data cable. The USB port on the
ACPBM-77Y can be used to charge the Apple device or play videos or music from a USB thumb drive
to the next enabled input. If all inputs are enabled the order is:
Rear CAM > Video Input (Smart-Play) > Repeat ...
The ACPBM-77Y utilizes wireless technology for Apple devices. Android devices are required to be
ACPBM-77Y
To exit the Smart-Play menu, hold the “Menu” button for 3-5 sec.
Switch the vehicle’s audio source to the AUX source. This will allow us to hear the Smart-Play audio
through the audio system. Hold the “MENU” button for 3-5 seconds to enter forced view mode.
