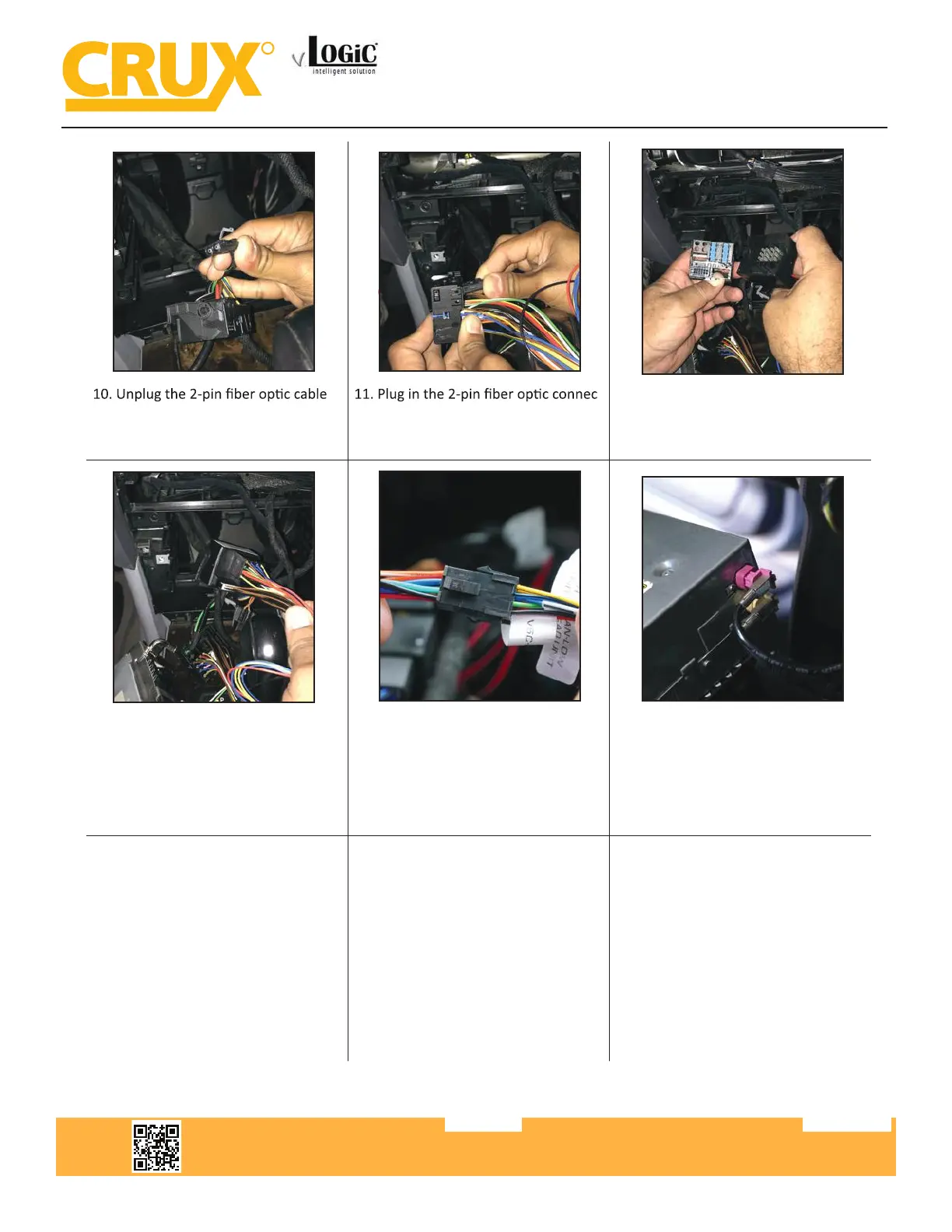

ACPBM-77Y
from the factory Quadlock connector.
-
tor to the ACPBM-77Y harness (Female
side).
12. Plug the factory Quadlock connec-
tor in to the male side of the ACPBM-
77Y harness.
13. Plug in the female side of the
ACPBM-77Y harness to the Headunit.
14. Connect the male 8-pin connector
from the ACPBM-77Y to the female
8-pin connector on the Power/CAN
harness.
*Make sure you use the correct Power/CAN har-
ness for your vehicle trim (refer to NOTE on p.1)*
15. Unplug the PINK LVDS factory cable
from the Headunit.
Smart-Play Integration with Rear-View Camera Input for
E & F Series BMW Vehicles with CIC Infotainment Systems
