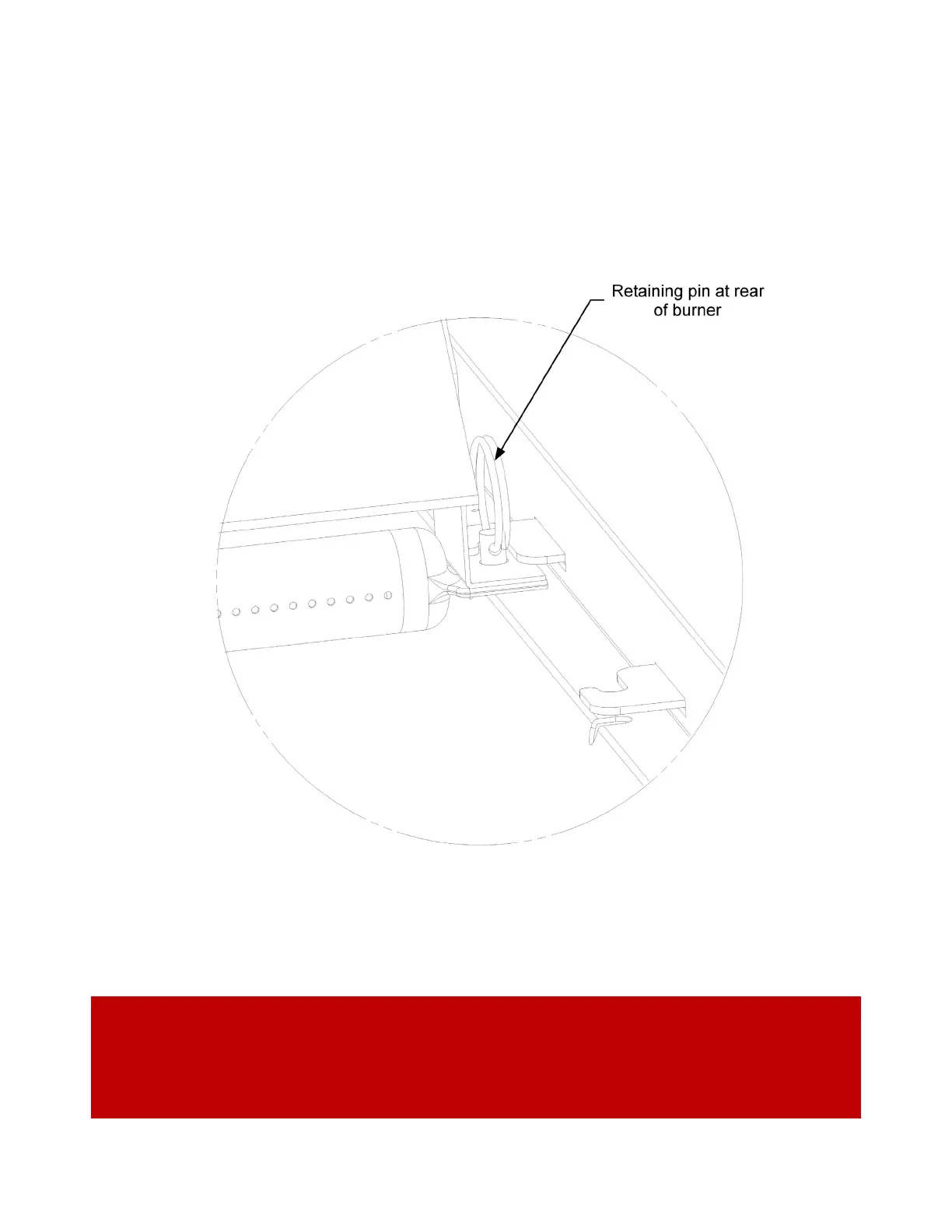

With the roll dome open, remove the pins located at the far end of the burner
assemblies. Slide the burner gently to either the right or left to disengage them from
the retaining bracket. Once clear, lift the burner up and pull it back and away from the
back side of the gas valve (See “Figure 17” for further details).
Using a screwdriver, loosen the shutter adjustment lock screw (See “Figure 19”). Be
careful not to remove the lock screw. Once loose, you can rotate the air shutter to
adjust the amount of air entering the venturi. Replace the burners into the appliance
to adjust the air shutters.
IMPORTANT: Use caution when handling the burner tubes as they can get very
hot. The radiant surface can also get very hot and can cause severe burns. Use
caution when handling components and use protective gloves.
FIGURE 17. BURNER ASSEMBLY DETAILS
