49-1000105 Rev. 022
Installation Instructions
INSTALLATION INSTRUCTIONS
INSTALLING THE REFRIGERATOR

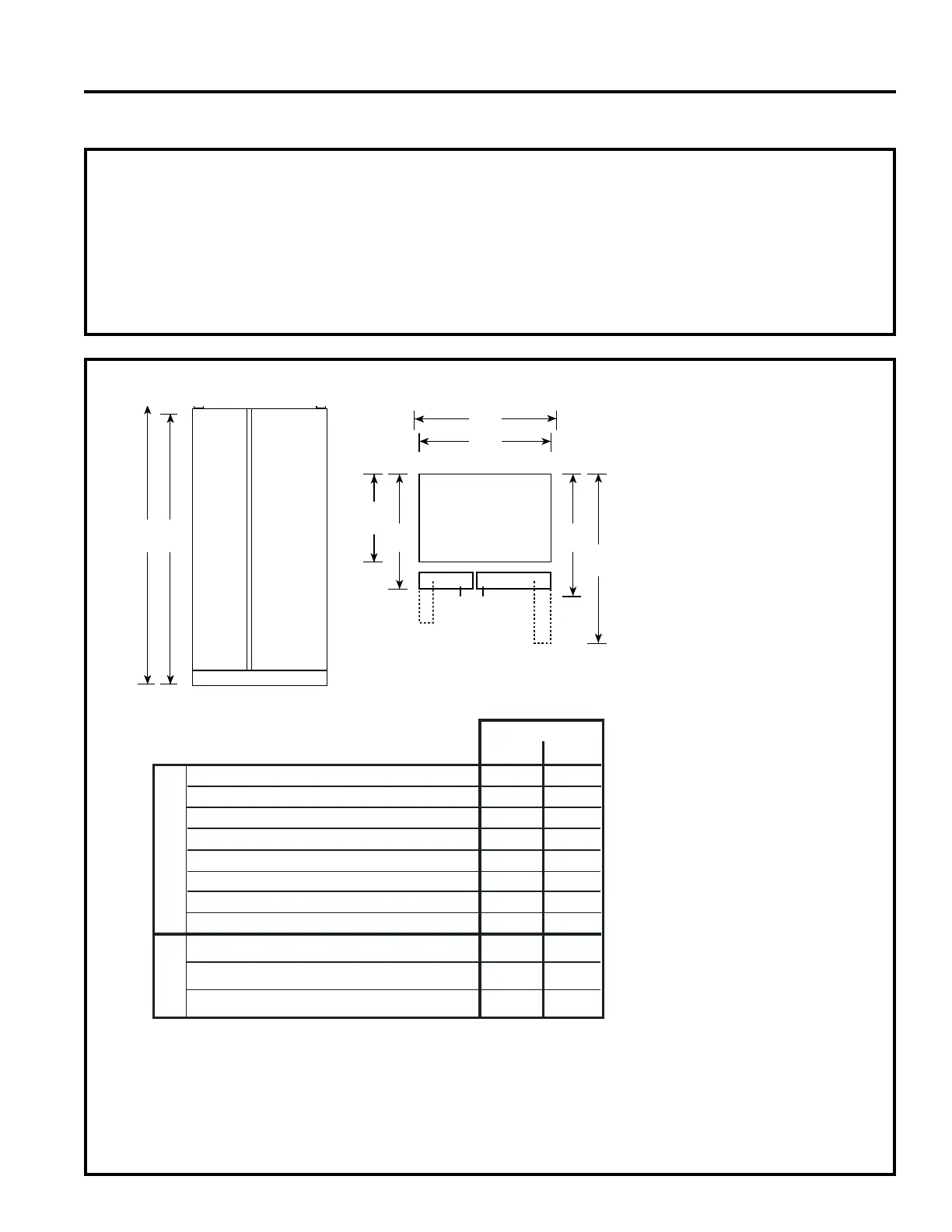

DIMENSIONS AND SPECIFICATIONS
REFRIGERATOR LOCATION
• Do not install the refrigerator where the
temperature will go below 60°F (16°C) because
it will not run often enough to maintain proper
temperatures.
• Do not install the refrigerator where the
temperature will go above 100°F (37°C) because it
will not perform properly.
• Do not install the refrigerator in a location exposed to
water (rain, etc.) or direct sunlight.
• Install it on a floor strong enough to support it fully
loaded.
If installed against a wall, allow clearance of 14-3/16" on
freezer side to remove bin.
Clearance required to remove fresh food full-size pan without
disassembling is 18-15/16".
Allow additional space for any necessary leveling adjustments.
A
G
D
C
F
B
E
H
Height to top of hinge (in.) A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G
Width with door open 90˚ with door handle (in.) H
Each side (in.)
Top (in.)
Back (in.)
AIR
CLEARANCES
OVERALL
DIMENSIONS
69-1/2
69
28-1/2
32-3/4
35-1/4
50-1/2
32-3/4
38-1/4
1/8
1
2
Height to top of hinge (in.)
XSS23
Models
XSS25
A
Height to top of case (in.) B
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90˚ (in.) F
Width (in.) G
Width with door open 90˚ with door handle (in.) H
Each side (in.)
Top (in.)
Back (in.)
AIR
CLEARANCES
OVERALL
DIMENSIONS
69-1/2
69
28-1/2
32-3/4
35-1/4
50-1/2
32-3/4
38-1/4
1/8
1
2
69-1/2
69
28-1/2
32-3/4
35-1/4
50-1/2
35-3/4
43-1/2
1/8
1
2
