EN

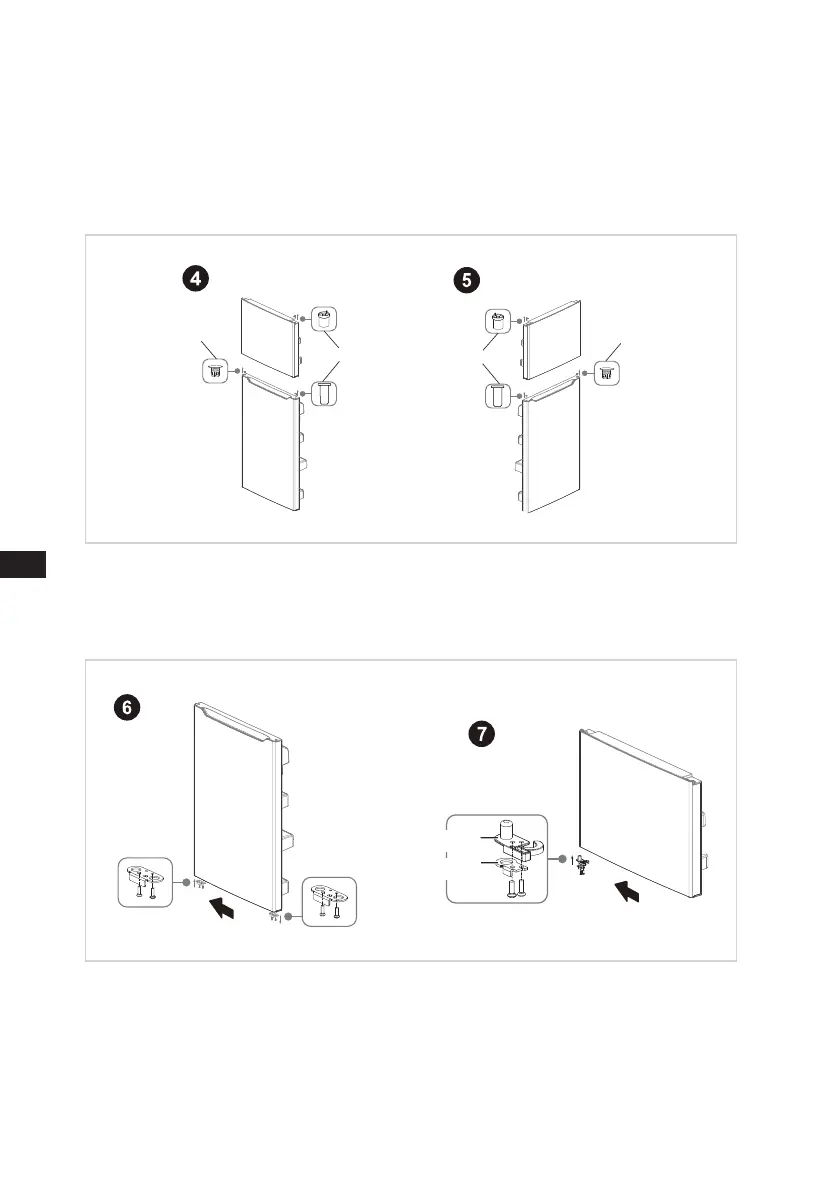

8. Unscrew the hinge pin from the bottom hinge and reattach it to the other
hole
in the hinge pin, then secure the bottom hinge to the opposite side of the
refrigerator using the screws you removed previously.Remove the hole caps
and plastic bushings from the top of the freezer and refrigerator doors. Save
them for the next step.
9. Insert the hole caps and plastic bushings into the opposite sides (from where
you removed them) of the freezer and refrigerator doors.
H
ole caps
Plastic bushings
Hole cap
s
Plastic bushings
10. Remove the door block from the bottom of the refrigerator door and attach it
to the other side.
11. Attach the upper door self-locking block and the door-open stopper to the
side of the freezer door where the hinge will be. Use the parts from the hinge
kit.
Upper door
self-locking block
Door-open stopper
12. Remove the old upper door self-locking block and the door-open stopper (do
not remove the parts attached in step 10). Store in a safe place in case you
need to reverse the door position again.
18
