78 • Horizon® 2 Dimmers, Switches, and Keypads Product Manual — Doc. 9243B

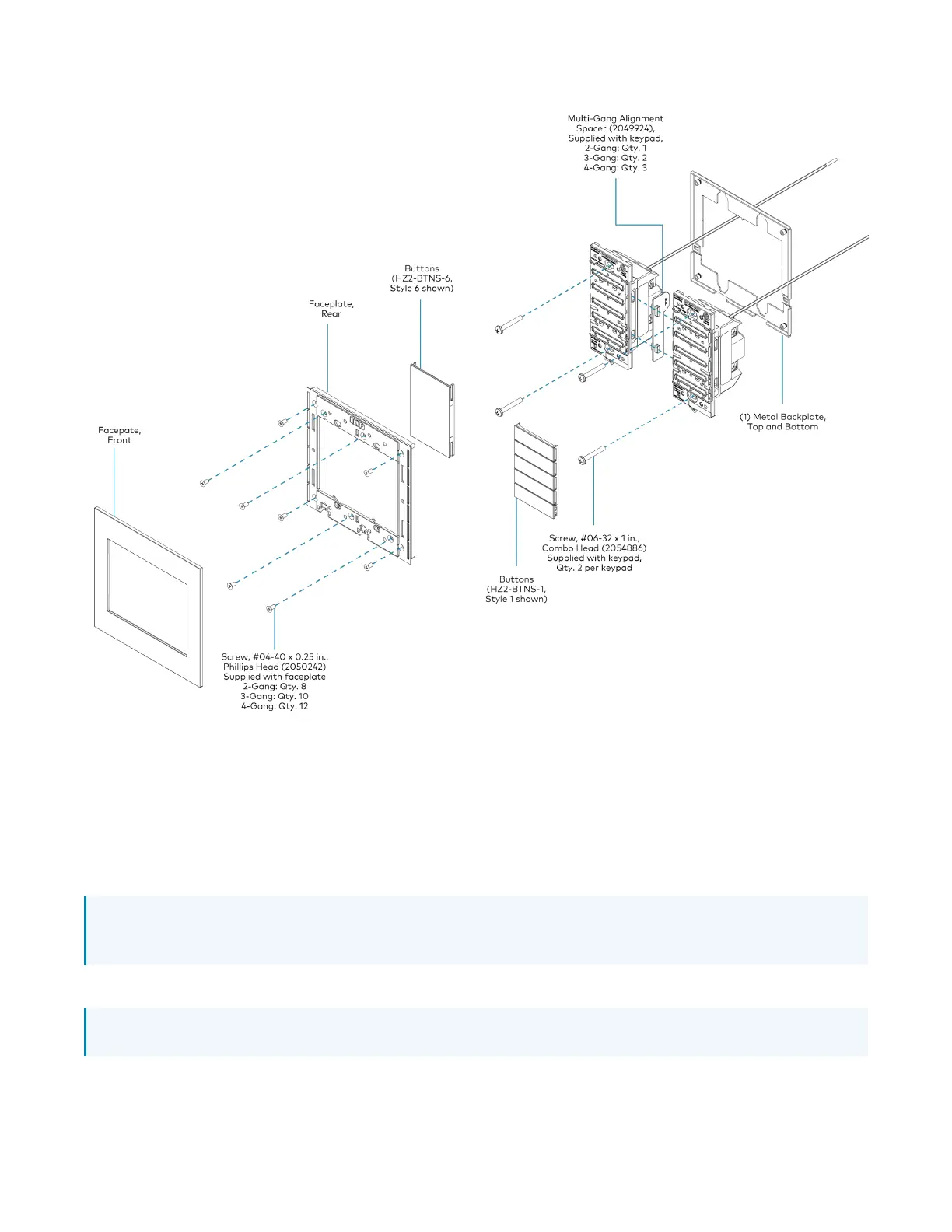

HZ2-DIMUEX Installation using 2-Gang Faceplate
HZ2-KPCN Mounting
Mount the HZ2-KPCN with the included metal backplate (2058573) and faceplate in a 1-gang US-style
backbox.
To mount the HZ2-KPCN in a 1-gang EU-style back box, refer to HZ2-KPCN Mounting in an EU Backbox
on page 85.
NOTE: To install the HZ2-KPCN with a 1-gang Horizon®2 faceplate that is sold separately or in a
multi-gang installation, refer to Horizon 2 Device Mounting on page 71.
To install the HZ2-KPCN into a 1-gang US-style backbox with the one-piece backplate:
NOTE: To wire the device, refer to Wiring on page 95.
