2 • HD-EARC KIT Product Manual — Doc. 9472A
TOSLINK® S/PDIF input is also available on the receiver to extract 2-channel LPCM digital audio from
the display. These connections allow local audio content from the display (such as smart TV streaming
applications) to be sent back to the transmitter. The HDMI/OPTICAL switch on the transmitter
determines which audio output connection on the HD-TXC-EARC is prioritized.
Compact, Surface-Mountable Design
Compact in design, the transmitter and receiver of the HD-EARCKIT can be mounted onto a flat
surface such as a wall behind a flat-panel display or on a ceiling above a projector. They can each also be
attached to a single rack rail in the back of an equipment cabinet. The power pack supplied with the
HD-TXC-EARC transmitter powers both units in the kit.
Note:
1. For the DM CATx cable connection, use Crestron DM-CBL-8G, Crestron DM-CBL-ULTRA, or third-party CAT5e or greater
cable. To safeguard against unpredictable environmental electrical noise that may impact performance at resolutions
above 1080p, shielded cable and connectors are recommended for all applications, and are required when bundling
multiple cables in a wire run. Wire and cables are sold separately. The DM Essentials ports in this kit are not compatible
with DigitalMedia 8G+®, HDBaseT®, PoE, or PoDM technology or any other type of CATx based interface or network.
Physical Description
The HD-EARC KIT provides the following connectors, controls, and indicators.
HD-TXC-EARC Front Panel

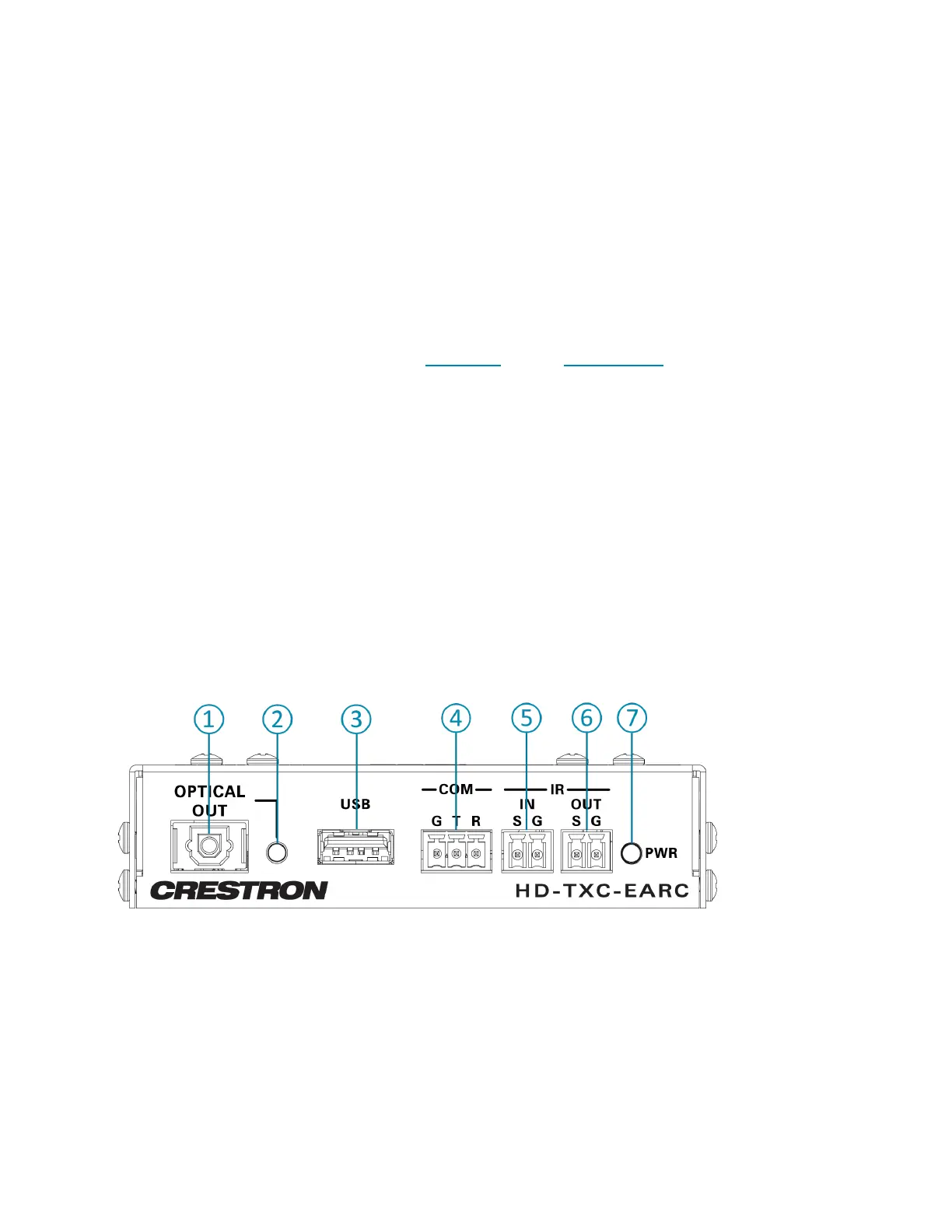

The following illustration shows the front of the HD-TXC-EARC:
①
OPTICAL OUT: S/PDIF TOSLINK® connector, outputs digital audio over an optical cable to an audio
receiver device
