Product Manual — Doc. 9394B DM-NVX-SW-C310 • 58

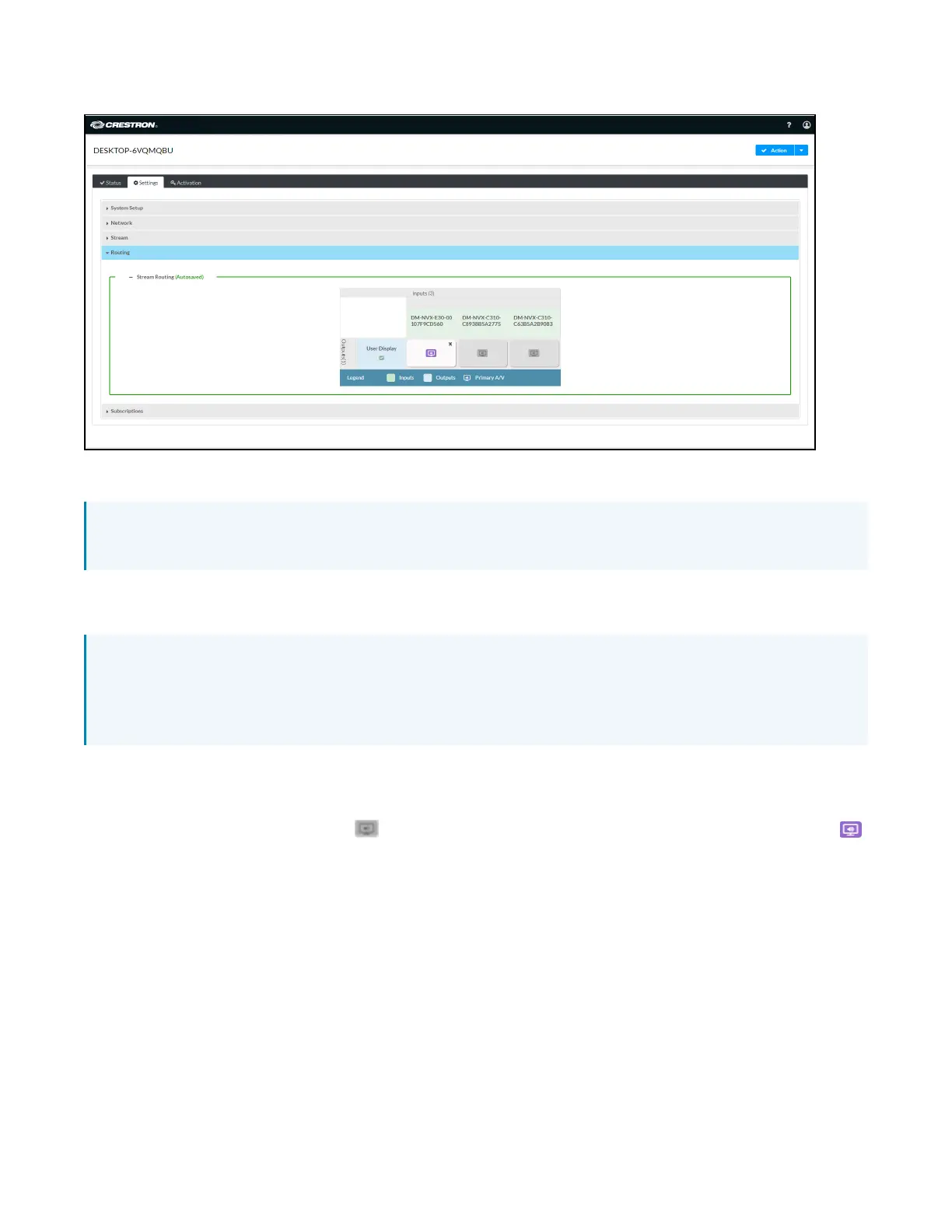

Settings Tab - Routing (Receiver Only)
Refer to the configuration guidelines that follow.
NOTE: When changes are made in the Stream Routing section, the changes are saved
automatically.
In the Stream Routing section, the Inputs/Outputs table provides cells identifying the receiver and the
subscribed transmitters.
NOTE: The Inputs/Outputs table appears only when transmitters have been subscribed to the
receiver. If no transmitters have been subscribed, a message appears indicating that there are no
active subscriptions. In order to route video, subscribe transmitters to the receiver in the
Subscriptions section of the Settings tab.
In the Inputs/Outputs table, the cell for the receiver is shaded blue and is named User Display by
default. Cells for transmitters are shaded green and are named using the transmitter host name. An
icon for each transmitter represents the primary A/V stream. When the Primary A/V icon is not selected
for routing, the icon is shaded gray ( ). When the icon is selected for routing, the icon turns purple (
).
