DALI Lighting Design Guide
Doc. 7386H | crestron.com
9

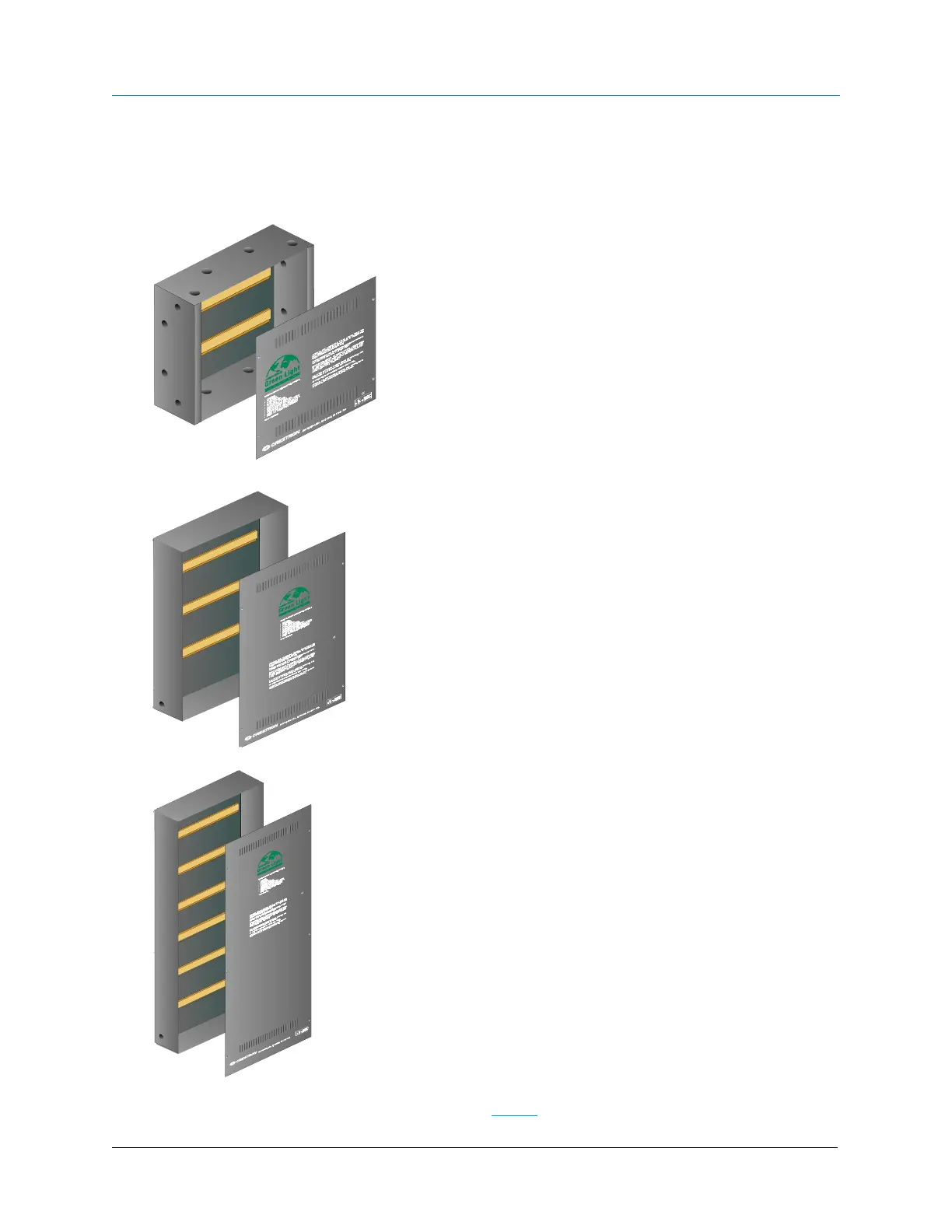

DIN Enclosures
The DIN-EN Series of metal panels are designed to house up to 18 DIN rail devices per panel. Each enclosure
includes a removable front cover for easy access to the equipment. A DIN-EN Series panel is the perfect enclosure
for Crestron DIN rail products such as the DIN-AP3 and DIN-DALI-2.
®
®
®
DIN-EN-6X18: The DIN-EN-6X18 is an enclosure that is used
for DIN rail devices (six DIN rails and 18 units wide). The
enclosure dimensions are Height: 38.88 in (989 mm),
Width: 14.38 in (366 mm), and Depth: 4.44 in (113 mm).
DIN-EN-3X18: The DIN-EN-3X18 is an enclosure that is used
for DIN rail devices (three DIN rails and 18 units wide). The
enclosure dimensions are Height: 23.50 in (597 mm),
Width: 14.38 in (366 mm), and Depth: 4.44 in (113 mm).
DIN-EN-2X18: The DIN-EN-2X18 is an enclosure that is used
for DIN rail devices (two DIN rails and 18 units wide). The
enclosure dimensions are Height: 12.32 in (323 mm),
Width: 14.13 in (359 mm), and Depth: 4.38 in (111 mm).
NOTE: For more information on DIN enclosures, refer to the DIN-EN page on the Crestron website.
