17 • DIN-DLI Product Manual — Doc. 9406A
Wiring

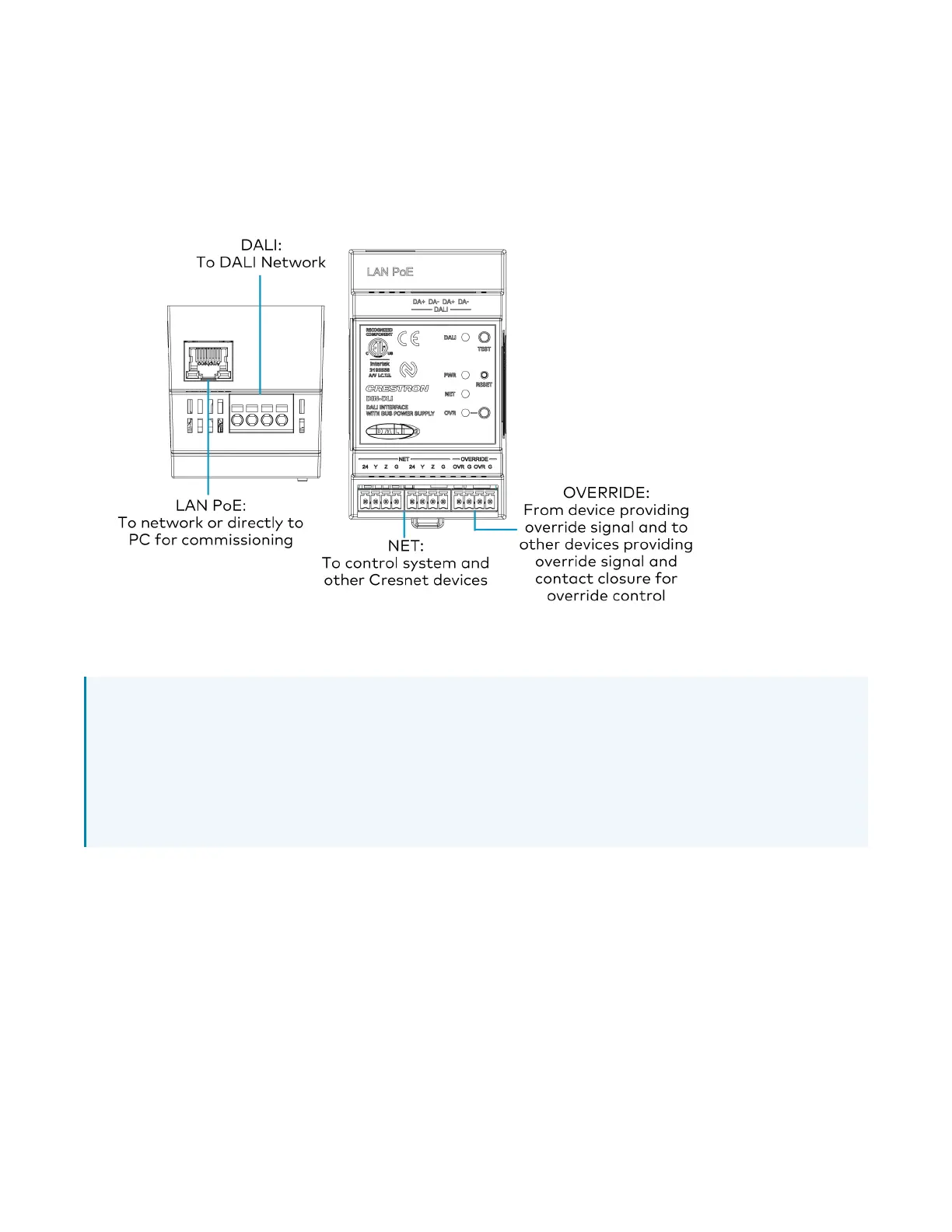

Make the necessary connections as shown below. Apply power after all connections have been made.
NOTES:
l
The NET and OVERRIDE connections use screw terminal blocks. A small flat-head screwdriver
is necessary to loosen and tighten the terminals when connecting wires.
l
The DALI connections use spring terminals. Solid wire can be pushed directly into each
connection without releasing the springs. To insert stranded wire or to remove either stranded
or solid wire, use a small flat-head screwdriver to release each spring terminal.
