Crestron CLTIBN Terminal Block with Breaker
CLTIBN-4IND to CLXI-4IND
NOTE: The CLTIBN-4IND inputs connect to the DIM OUT and N OUT lines of a CLTI dimming terminal block.

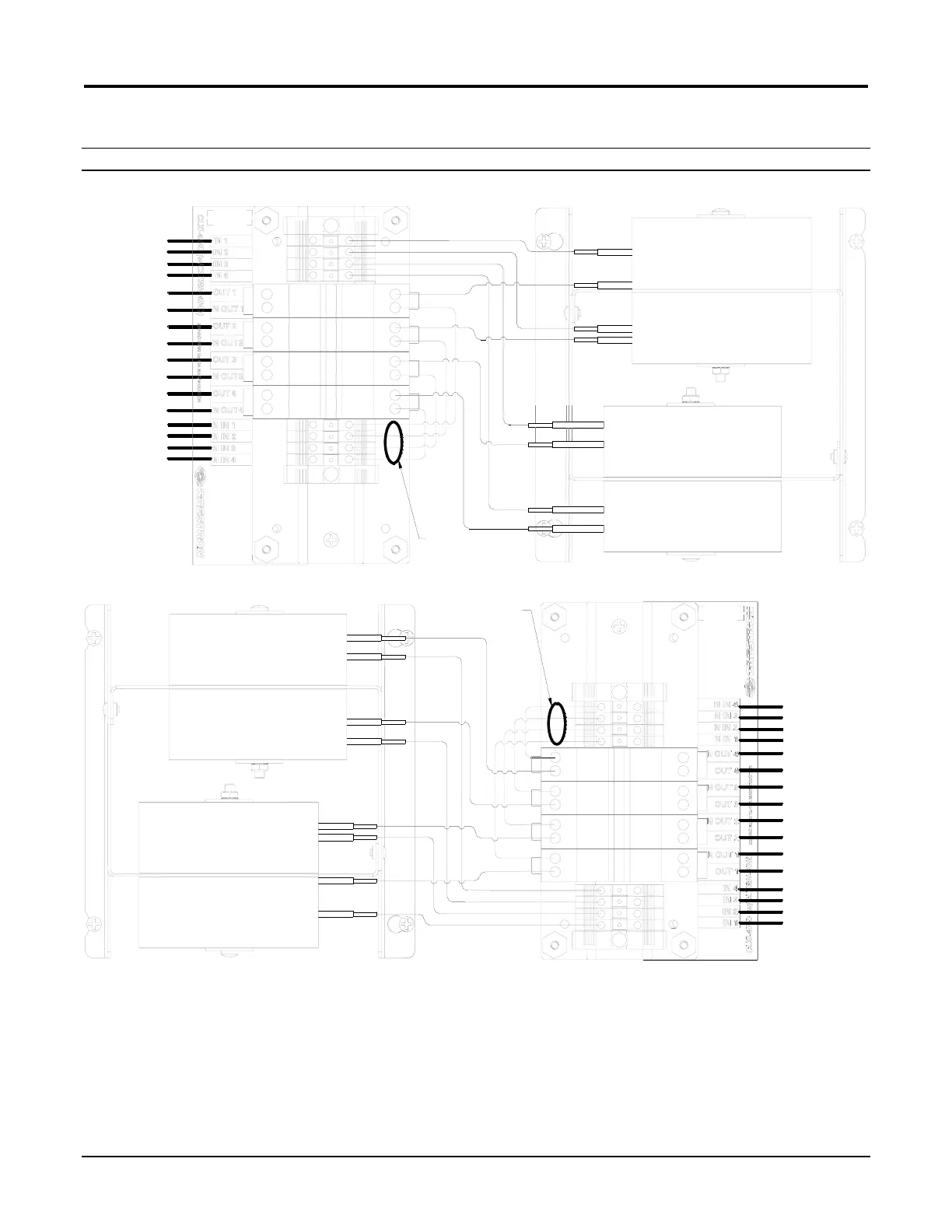

Wiring of CLTIBN-4IND Terminal Block and CLXI-4IND (Single-wide and Left Side Double-wide Enclosures)
FROM DIMMER 1
FROM DIMMER 2
FROM DIMMER 3
FROM DIMMER 4
TO LOAD 1
TO LOAD 1
TO LOAD 2
TO LOAD 2
TO LOAD 3
TO LOAD 3
TO LOAD 4
TO LOAD 4
FROM DIMMER 4
FROM DIMMER 3
FROM DIMMER 2
FROM DIMMER 1
FACTORY INSTALLED
JUMPER WIRES
DO NOT REMOVE
BLUE
BLUE
BLUE
BLUE
BLUE
BLUE
BLUE
BLUE
Wiring of CLTIBN-4IND Terminal Block and CLXI-4IND (Right Side Double-wide Enclosures)
BLUE
BLUE
BLUE
BLUE
BLUE
BLUE
BLUE
BLUE
FROM DIMMER 1
FROM DIMMER 2
FROM DIMMER 3
FROM DIMMER 4
FROM DIMMER 1
FROM DIMMER 2
FROM DIMMER 3
FROM DIMMER 4
TO LOAD 2
TO LOAD 2
TO LOAD 1
TO LOAD 1
TO LOAD 3
TO LOAD 3
TO LOAD 4
TO LOAD 4
FACTORY INSTALLED
JUMPER WIRES
DO NOT REMOVE
Installation Guide – DOC. 6561A Terminal Block: CLTIBN • 11
