11 • CEN-SWPOE-5AC Product Manual — Doc. 9448A

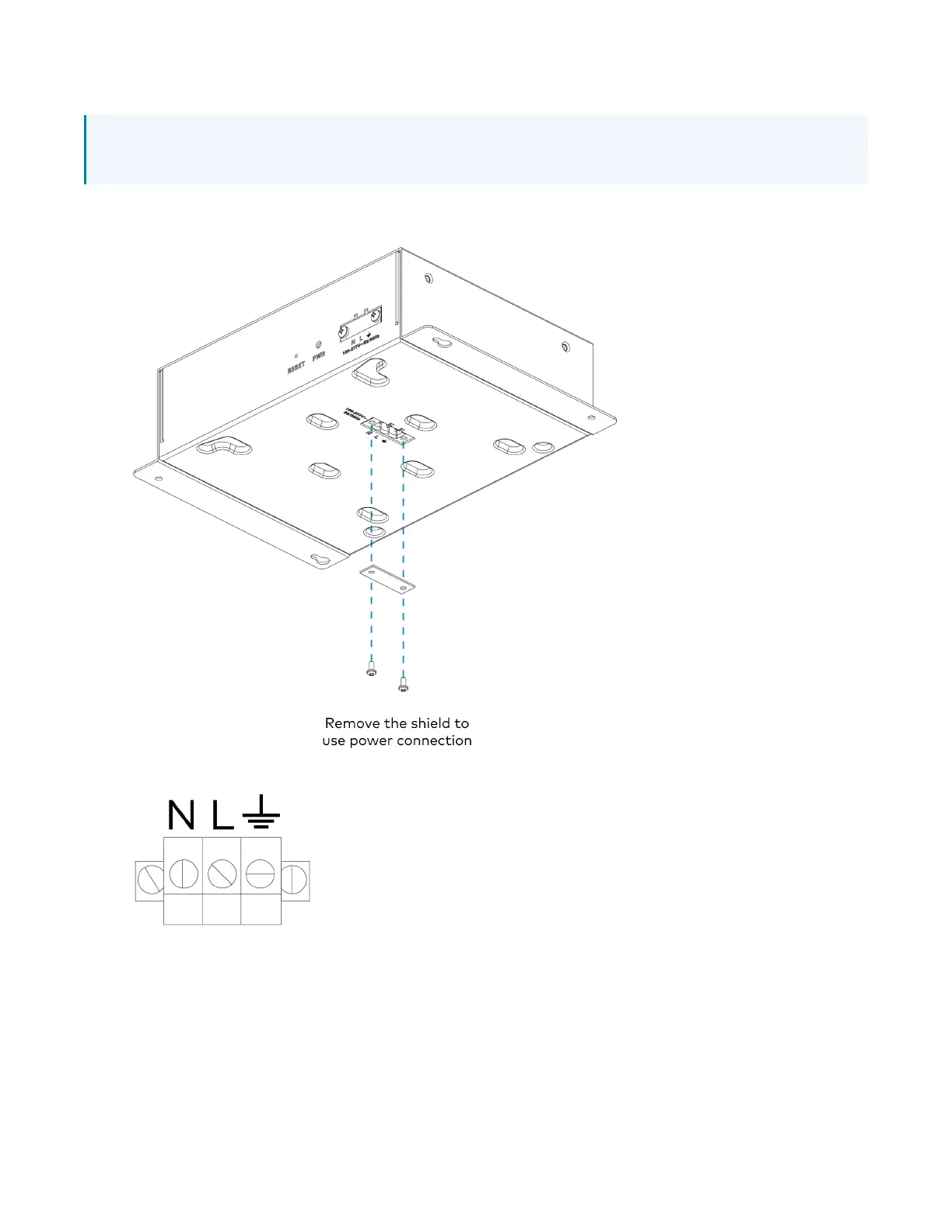

To connect the terminal block for the power connection:
NOTE: If using the bottom power connection, make sure the connection is made before mounting
the switch.
1. Remove the two screws securing the shield to uncover the power connection (the bottom power
connection is shown below).
2. Wire the line power to the terminal block connector. For details, refer to Connections on page 27.
