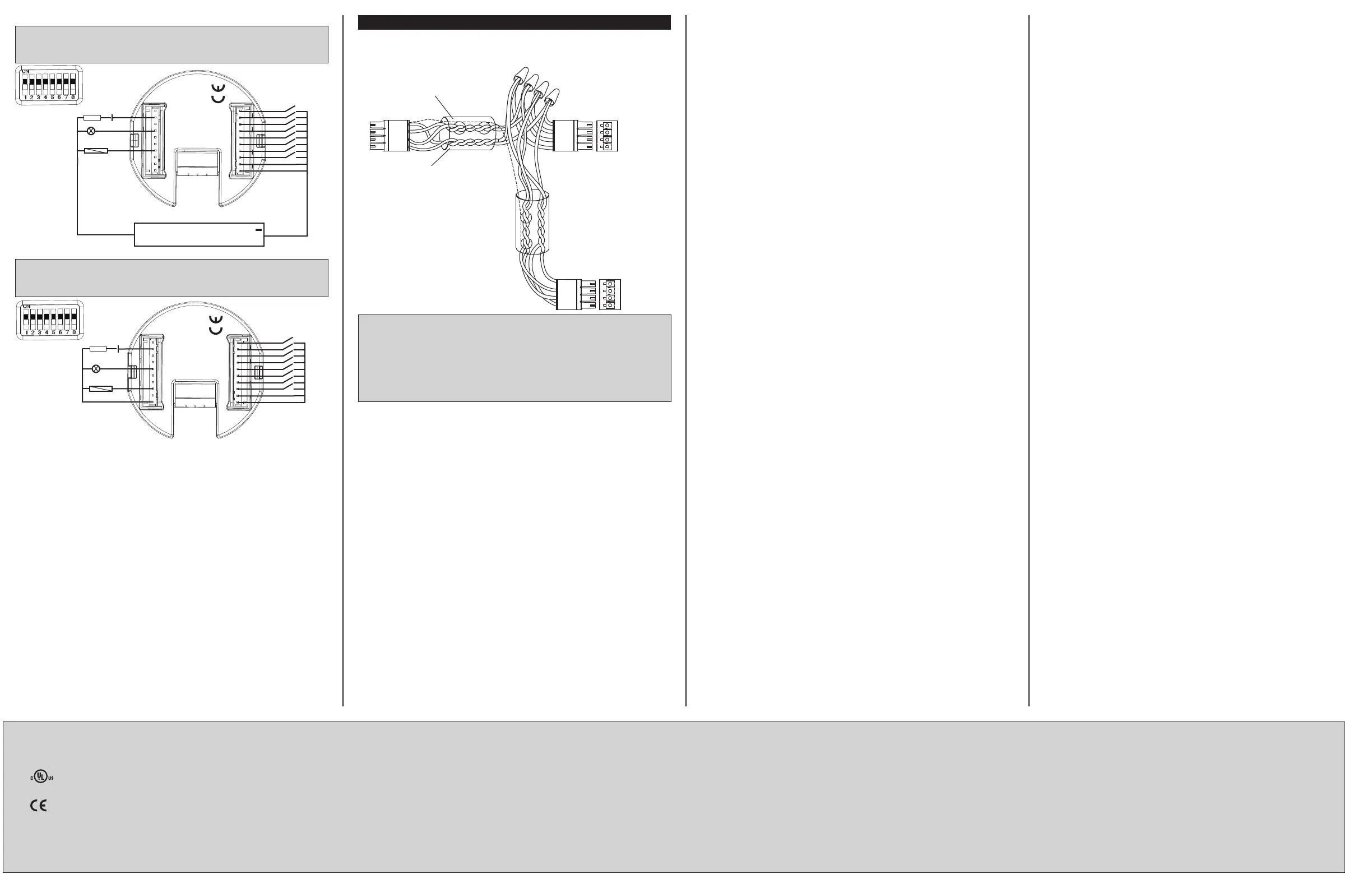

External 24 V LED Driver (100 mA Open Collector Output)
NOTE: Dip switches must be in the ON position.
NOTE: Internal 5 mA 5 V current limit can be enabled or disabled on an individual
basis.
Using Internal 24 Vdc Power Supply (100 mA Open Collector Output)
NOTE: Dip switches must be in the ON position.
NOTE: Internal 5 mA 5 V current limit can be enabled or disabled on an individual
basis.
OUTPUT
INPUT
G G 1 2 3 4 5 6 7 8
5V 1 2 3 4 5 6 7 8 24V
GND
GND
Resistor / LED
Lamp
Relays
OUTPUT
INPUT
G G 1 2 3 4 5 6 7 8
5V 1 2 3 4 5 6 7 8 24V
GND
GND
24VDC External Power Supply
+
Resistor / LED
Lamp
Relays
24
Y
Z
G
Wire nuts and
jumper wires
Pair A
22 AWG
twisted
Pair B
18 AWG parallel
To control
system
G
Z
Y
24
24
Y
Z
G
Make Cresnet Connections
Connect the C2N-UNI8IO to the Cresnet Network via a Cresnet network cable (sold
separately).
NOTE: When wiring, observe the following points:
• Do not power up the system until all wiring is veried. Use care to ensure that data
(Y and Z) and power (24 and G) connections are not crossed.
• Ground the Cresnet shield at the Control System end only.
• Use the Crestron CNTBLOCK network terminal expander and diagnostic tool for
testing.
• Use #18 AWG jumper wires. Use a wire nut that accommodates all three wires.
This product is Listed to applicable UL
®
Standards and requirements by Underwriters Laboratories
Inc.
Ce produit est homologué selon les normes et les exigences UL applicables par Underwriters
Laboratories Inc.
As of the date of manufacture, the device has been tested and found to comply with specications
for CE marking.
Federal Communications Commission (FCC) Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following
conditions:(1) This device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the manufacturer responsible for
Crestron Electronics, Inc. Installation & Operation Guide - DOC. 6956C
15 Volvo Drive Rockleigh, NJ 07647 (2027241)
Tel: 888.CRESTRON 11.16
Fax: 201.767.7576 Specications subject to
www.crestron.com change without notice.
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Statement
CAN ICES-3(B)/NMB-3(B)
The product warranty can be found at www.crestron.com/warranty.
The specic patents that cover Crestron products are listed at patents.crestron.com.
Certain Crestron products contain open source software. For specic information, please visit
www.crestron.com/opensource.
Crestron, the Crestron logo, Cresnet, and Crestron Toolbox are either trademarks or registered
trademarks of Crestron Electronics, Inc. in the United States and/or other countries. UL and the UL logo
are either trademarks or registered trademarks of Underwriters Laboratories, Inc. in the United States
and/or other countries. Other trademarks, registered trademarks, and trade names may be used in this
document to refer to either the entities claiming the marks and names or their products. Crestron
disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for
errors in typography or photography.
This document was written by the Technical Publications department at Crestron.
©2016 Crestron Electronics, Inc.
