5925 Heisley Road • Mentor, OH 44060-1833
Retherm
Humidity Oven
FL-2392
Rev. 0 (5/16)
Page 12 of 15

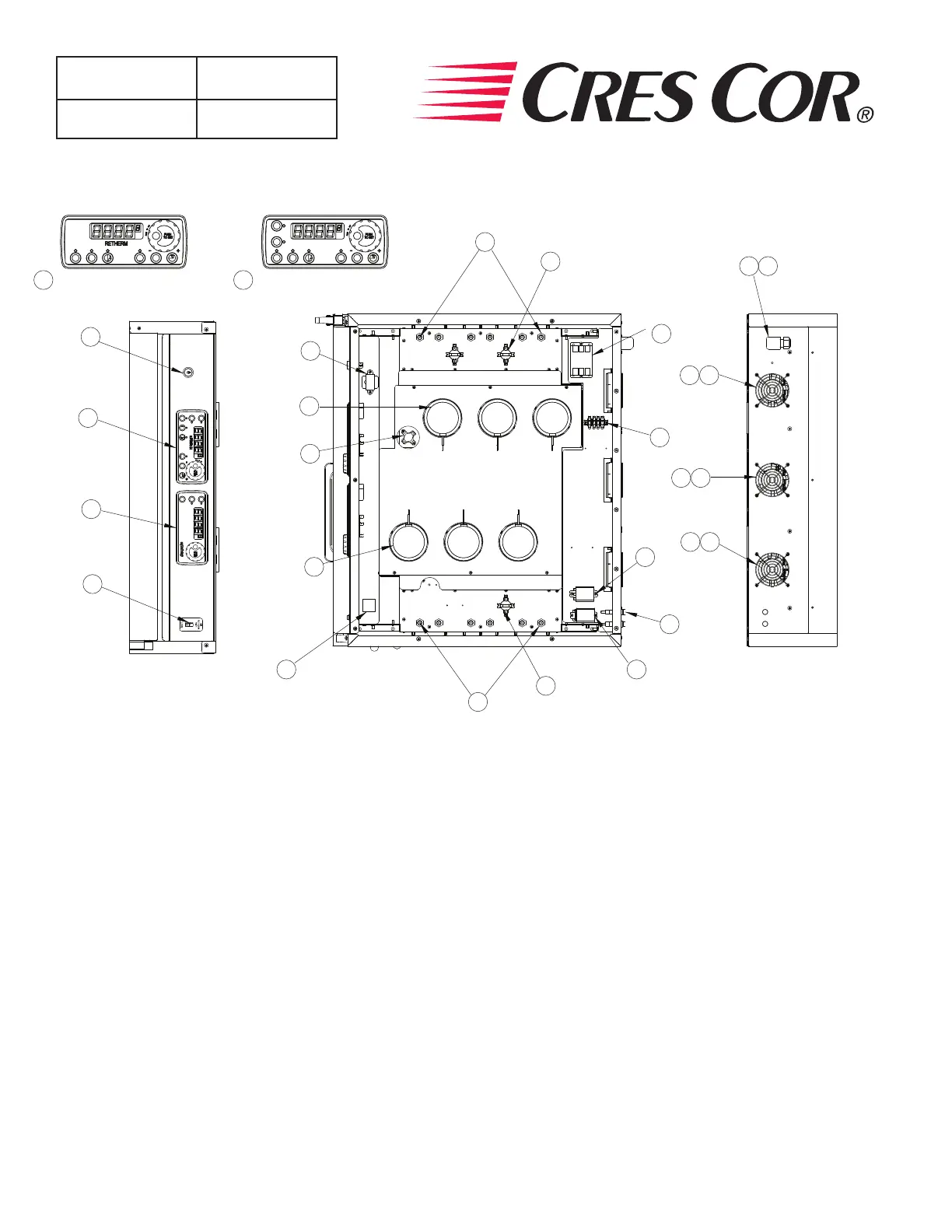

FRONT VIEW
TOP VIEW
WITHOUT COVER
REAR VIEW
FL-2356
ELECTRICAL REPLACEMENT PARTS
(RO151FW1332D IS SHOWN)
ITEM DESCRIPTION Part No. ITEM DESCRIPTION Part No.
1. Switch (On/Off) 0808-125 15. Power Cord Kits:
2A. “DE” Retherm Control 0848-092-21-K 208/240V, 3 Ph, 60 A 0810-185
2B. “DX” Retherm Control
0848-092-04-K
208/240V, 3 Ph, 50 A 0810-178-K
Sensor
0848-091-K
208/240V, 1 Ph, 50 A 0810-161
3. Humidity Thermostat 480V, 3 Ph, 30 A
Digital Control
0848-092-05-K
16. Strain Relief Kits:
3a. Sensor
0848-091-K
208/240V, 3 Ph 0818-103-K
3b. Sensor bushing
0851-023
208/240V, 1 Ph 0818-061
4. Blower Switch 0808-114 480V, 3 Ph 0818-102-K
5. Vent Fan 0769-174 17. Heater Kits:
6. Fan Guard 0769-167 3000W, 208V, 3 Ph 0811-321
7. Fuse
0807-155
3000W, 240V, 3 Ph 0811-322
Fuse Holder
0807-150
3000W, 480V, 3 Ph 0811-323
Fuse (480V)
0807-059 2000W, 208V, 3 Ph
0811-300-K
Fuse Holder (480V)
0807-048
2000W, 240V, 3 Ph 0811-301-K
8. Blower Kit 0769-186 2000W, 480V, 3 Ph 0811-302-K
9. Contactor 0857-026 1325W, 208V, 1 Ph 0811-306-K
10. Terminal Block, rear 0852-093 1325W, 240V, 1 Ph 0811-305-K
11. Hi Limit Switch 0848-077 18. Alarm Assy 0908-009-01
12. Transformer 0769-197
Transformer (480V) 0769-198
FOR “-DX” OVENS ONLY (not shown):
13. Relay 0857-102 Connector, Probe 0848-106-02
14. Fan Switch 0848-034 Food Probe 6” Long 0848-113
Electrical Replacement Parts:
2B
18
TOP VIEW
WITHOUT COVER
REAR VIEWFRONT VIEW
1
3
4
5
5
5
6
6
6
7
8
8
9
10
11
11
12
13
13
14
15
17
16
2A
“DE” RETHERM CONTROL
2B
“DX” RETHERM CONTROL
REPLACEMENT PARTS
Include all information on nameplate when ordering parts
17
