5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Retherm
Humidity Oven
FL-2356
Rev. 8 (2/15)
Page 12 of 14
ITEM DESCRIPTION Part No. ITEM DESCRIPTION Part No.
1. Switch (On/Off) 0808-125 11. Hi Limit Switch 0848-077
2A. “DE” Retherm Control 0848-092-21-K 12. Transformer 0769-197
2B. “DX” Retherm Control
0848-092-04-K
Transformer (480V) 0769-198
Sensor
0848-091-K
13. Relay 0857-102
3. Humidity Thermostat 14. Fan Switch 0848-034
Digital Control
0848-092-05-K
15. Power Cord Kit (208/240V, 1 Ph) 0810-124
3a. Sensor
0848-091-K
Power Cord Kit (208/240V) 0810-178-K
3b. Sensor bushing
0851-023
Power Cord Kit (480V) 0810-180-K
4. Blower Switch 0808-114 17. Strain Relief (208/240V) 0818-103
5. Vent Fan 0769-174 Strain Relief (480V) 0818-102
6. Fan Guard 0769-167 18. Heater Kit (208V) 0811-300-K
7. Fuse
0807-155
Heater Kit (240V) 0811-301-K
Fuse Holder
0807-150
Heater Kit (480V) 0811-302-K
Fuse (480V)
0807-059
19. Alarm Assy 0908-009-01
Fuse Holder (480V)
0807-048
8. Blower Kit 0769-186
FOR “-DX” OVENS ONLY (not shown):
9. Contactor 0857-026 Connector, Probe 0848-106-02
10. Terminal Block, rear 0852-093 Food Probe 1.5” Long 0848-111
Electrical Replacement Parts:
2B
19
TOP VIEW
WITHOUT COVER
REAR VIEWFRONT VIEW
1
3
4
5
5
5
6
6
6
7
8
8
9
10
11
11
12
13
13
14
15
18
18
17
FRONT VIEW
TOP VIEW
WITHOUT COVER
REAR VIEW
FL-2356

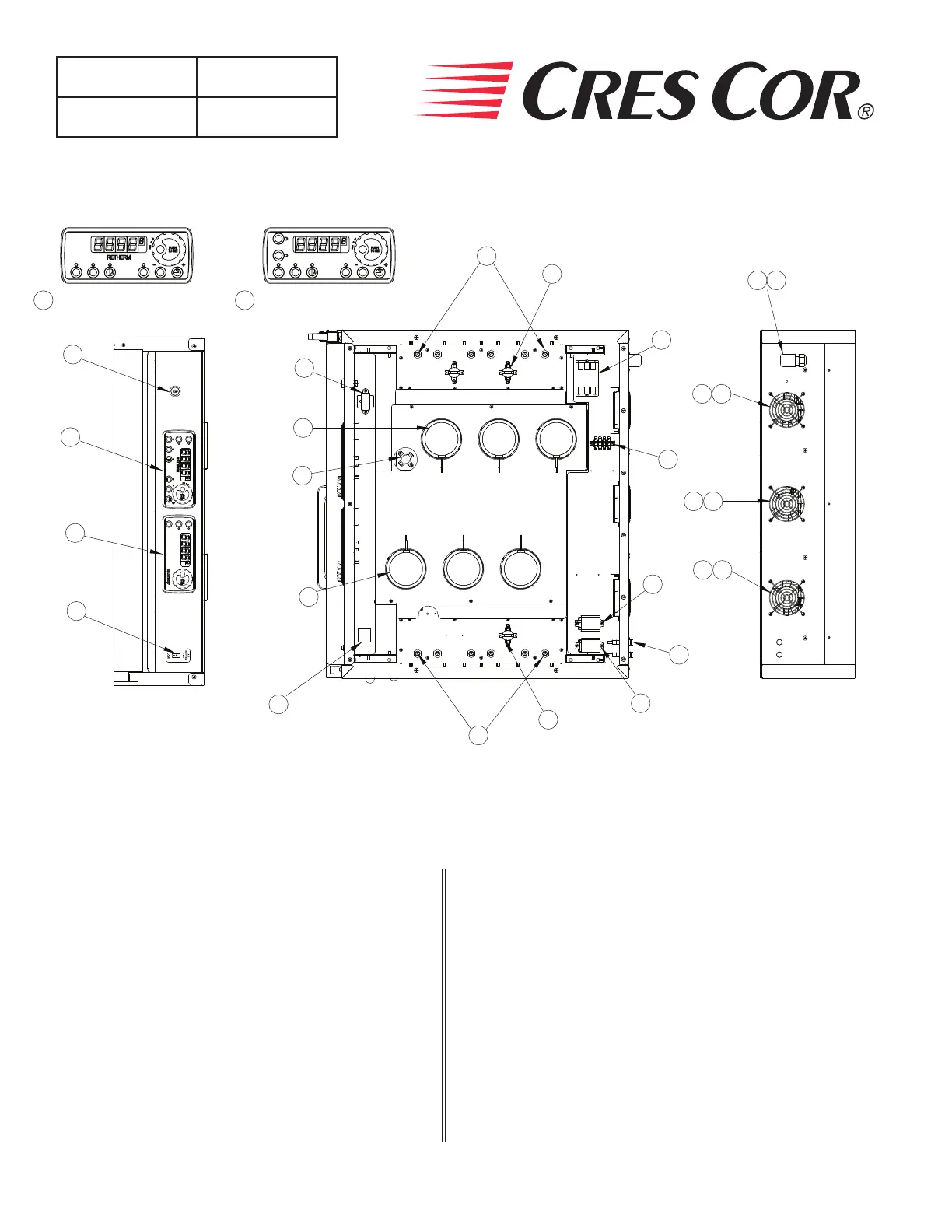

ELECTRICAL REPLACEMENT PARTS
(RO151FW1332D IS SHOWN)
2A
“DE” RETHERM CONTROL
2B
“DX” RETHERM CONTROL
REPLACEMENT PARTS
Include all information on nameplate when ordering parts
