Convection Oven
FL-2378
Rev. 1 (2/15)
Page 12 of 14
2 2
1
1
2
2
3
3
4
5
6
7
8
9
10
11
11
11
12
12
12
13
13
14
15
2A

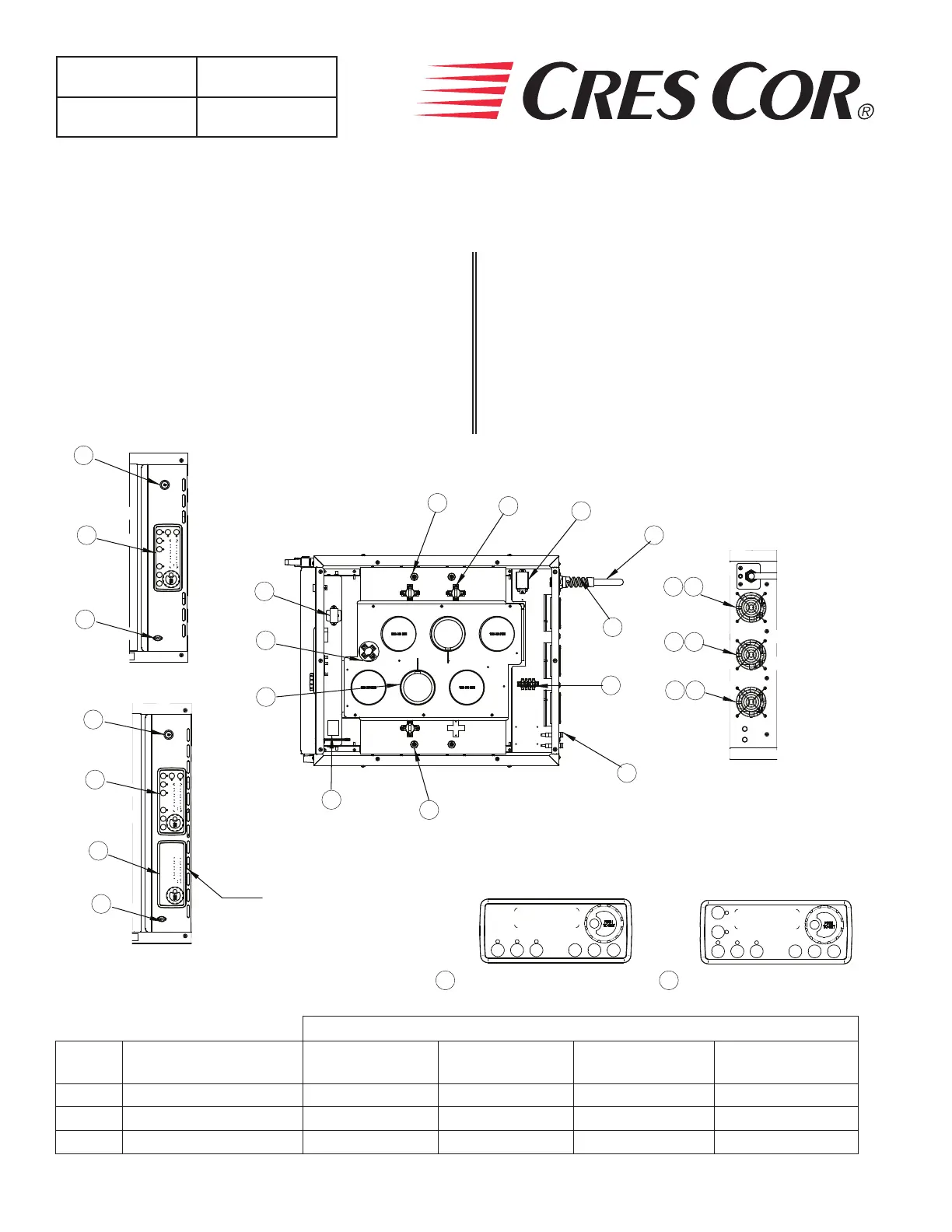

TOP VIEW
WITHOUT COVER
REAR VIEW
FRONT VIEW
CO151XWUA5DE1201 OR
CO151XWUA5DX1201 ONLY
16
REPLACEMENT PARTS
Include all information on nameplate when ordering parts
ITEM DESCRIPTION Part No. ITEM DESCRIPTION Part No.
1 Switch (On/Off) 0808-125 9 Terminal Block 0852-091
2, 2A Thermostats, Digital See Chart Below 10 Fuse 0807-151
3 Probe Connector 0848-106-02 Fuse Holder 0807-150
(“DX” Ovens Only) 11 Vent Fan 0769-165
4 Blower 0769-180-K 12 Fan Guard 0769-167
Blower CO151XWUA5D 0769-180-SS-K 13 Heaters, 2000W 0811-074
5 Fan Switch 0848-034 14 Power Cord Kit 0810-065
6 Transformer 0769-197 15 Strain Relief 0818-050
7 Hi Limit 0848-077 16 Alarm Assy 0908-009-01
8 Relay, DPDT 0857-130
Electrical Replacement Parts:
FOR MODEL NOS.
ITEM DESCRIPTION
CO151XUA5DE,
CO151X185DE
CO151XUA5DX,
CO151X185DX
CO151XWUA5DE CO151XWUA5DX
2 Roast-N-Hold Thermostat 0848-092-22-K 0848-092-06-K 0848-092-23-K 0848-092-07-K
2A Aquatemp Thermostat NONE NONE 0848-092-05-K 0848-092-05-K
Sensor 0848-091-K 0848-091-K 0848-091-K 0848-091-K
2A: "DE" RE THE RM CONTROL
2B: "DX" RE THE RM CONTROL
“DE” ROAST-N-HOLD CONTROL
2A: "DE" RE THE RM CONTROL
2B: "DX" RE THE RM CONTROL
“DX” ROAST-N-HOLD CONTROL
