5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Ovens Humidity with
Microprocessor Controls
FL-2267
Rev. 14 (6/08)
Page 10 of 14
ITEM DESCRIPTION Part No.
PARTS for 8200W, 1-PH UNITS
21. Power Cord 0810-124
Power Cord (Pass-thru) 0810-161
22. Heater Kit, 208V 0811-261
Heater Kit, 240V 0811-262
23. Strain Relief 0818-061
PARTS for 8200W, 3-PH UNITS
21. Power Cord 0810-132
Power Cord (Pass-thru) 0810-162
22. Heater Kit, 208V 0811-261
Heater Kit, 240V 0811-262
23. Strain Relief 0818-050
PARTS for 4950W, 1-PH UNITS
21. Power Cord 0810-163
22. Heater Kit, 208V 0811-020-K
Heater Kit, 240V 0811-020-01-K
23. Strain Relief 0818-050
PARTS for 4950W, 3-PH UNITS
21. Power Cord 0810-164
22. Heater Kit, 208V 0811-020-K
Heater Kit, 240V 0811-020-01-K
23. Strain Relief 0818-050

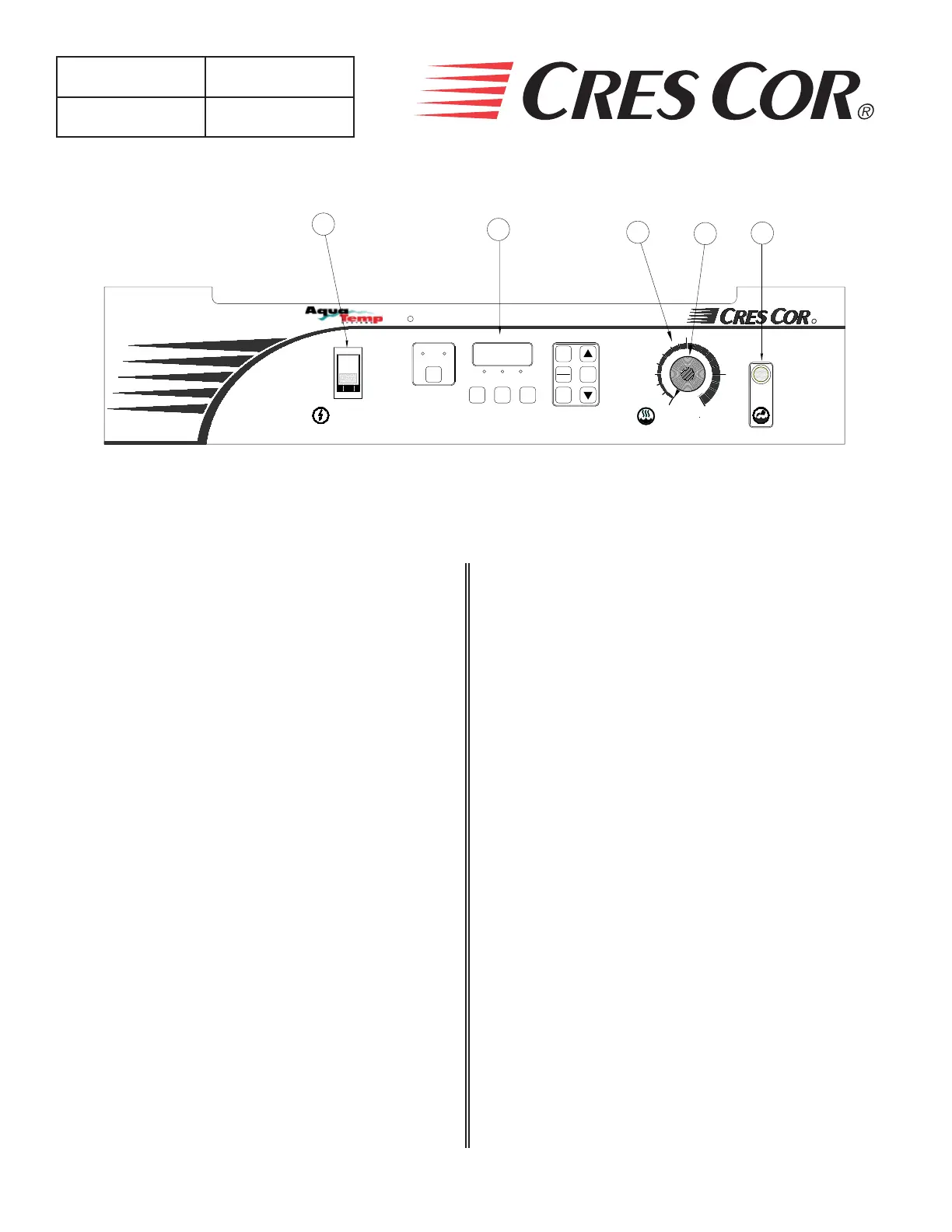

FIGURE 2: CONTROL PANEL
REPLACEMENT PARTS
Include all information on nameplate when ordering parts
ITEM DESCRIPTION Part No.
1. Switch (On/Off) 0808-113-01-K
2. Thermostat/Timer, Cooking/ 0848-070-03
Holding
3. Vent Fan 0769-174
4. Fan Guard 0769-167
5. Fuse (Before 7-08) 0807-058
Fuse (After 7-08) 0807-151
Fuse Holder (Before 7-08) 0807-048
Fuse Holder (After 7-08) 0807-150
6. Blower Kit 0769-182-01-SSK
7. Contactor 0857-026
8. Terminal Block, front 0852-096
9. Terminal Block, rear 0852-091
10. Switch, Fan 0848-034
11. Hi Limit Switch (Pass-thru) 0848-077
Hi Limit Switch 0848-079
12. Sensor 0848-073-01
13. Sensor Bushing 0818-014
14. Connector, probe 0848-059-01
Probe 1.5” long 0848-059-02
Probe 6” long 0848-059-04
15. Relay 0857-125-K
16. Thermostat, Humidity 0848-008-1-AC
17. Knob, Humidity Thermostat 0595-061
18. Pilot Light 0766-095
19. Receptacle (6 pin) 0810-154-02
20. Resistor (For Relay) 0857-129
• Float Switch 0857-122
• Water Pan Kit, 208V 0756-030-K
• Heater, 208V 0811-278
• Water Pan Kit, 240V 0756-031-K
• Heater, 240V 0811-271
Hot Unit Replacement Parts
HUMIDITY
Roast-N-Hold +
OFF
( 0 )
POWER
TM
ON
( I )
LOW
2
1
DRY
3
4
8
WATER
LOW
MOIST
10
HIGH
9
5
6
MEDIUM
7
R
HOLD
TIME / TEMPERATURE
TIMED
PROBE
SELECT
MODE
HEAT
OVEN
COOK
START
COOK
PROBE
HOLD
STOP
TIME
SET
SETPOINTS
TEMP
1
2
16
18
17
