5925 Heisley Road • Mentor, OH 44060-1833
Call Toll-free: 877-CRES COR (273-7267) • Fax: 800-822-0393 • www.crescor.com
Convection Oven
FL-2368
Rev. 3 (2/15)
Page 11 of 13
ITEM DESCRIPTION Part No. ITEM DESCRIPTION Part No.
1. Switch (On/Off) 0808-125 7. Fuse 0807-155
2A. “DE” Retherm Control 0848-092-20-K Fuse Holder 0807-150
2B. “DX” Retherm Control 0848-092-06-K 8. Blower Kit 0769-182-SS-K
Sensor 0848-091-K 9. Contactor 0857-026
FOR “DX” MODELS ONLY: 10. Terminal Block, rear 0852-093
Probe Connector 0848-106-02 11. Hi Limit Switch 0848-077
Food Probe 1.5” Long 0848-098 12. Transformer 0769-197
Food Probe 6” Long 0848-100 13. Fan Switch 0848-034
5. Vent Fan 0769-174 14. Alarm Assy 0908-009-01
6. Fan Guard 0769-167
Electrical Replacement Parts:

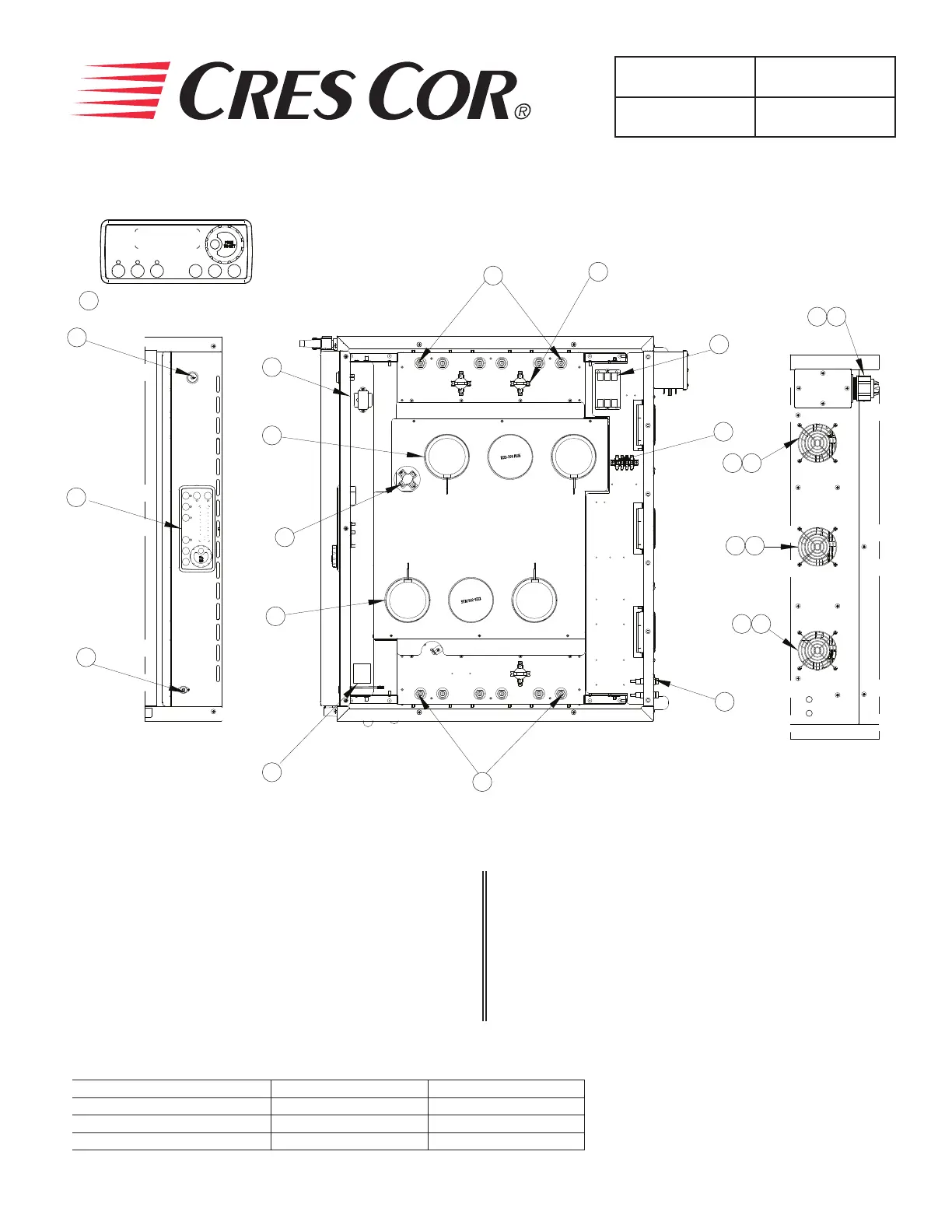

TOP VIEW
WITHOUT COVER
ITEM DESCRIPTION 8000W, 1PH 8000W, 3PH
16 Power Cord 0810-161 0810-132
18 Heater Kit, 208V 0811-306 0811-306
18 Heater Kit, 240V 0811-305 0811-305
17 Strain Relief 0818-061 0818-050
REPLACEMENT ELECTRICAL PARTS
Include all information on nameplate when ordering parts
FL-2368
TOP, FRONT, REAR
CO151 SERIES
DRY, 8KW
1
3
5
5
5
6
6
6
7
8
8
9
11
12
13
18
18
1716
REAR VIEW
FRONT VIEW
10
14
2A
2B
2A: "DE" RETHERM CONTROL
2B: "DX" RETHERM CONTROL
“DE” RETHERM CONTROL
