USER
MANUAL
Cleaning and Assembly of The Oven Door
To replace the oven door again; reverse the procedure for removing the door.

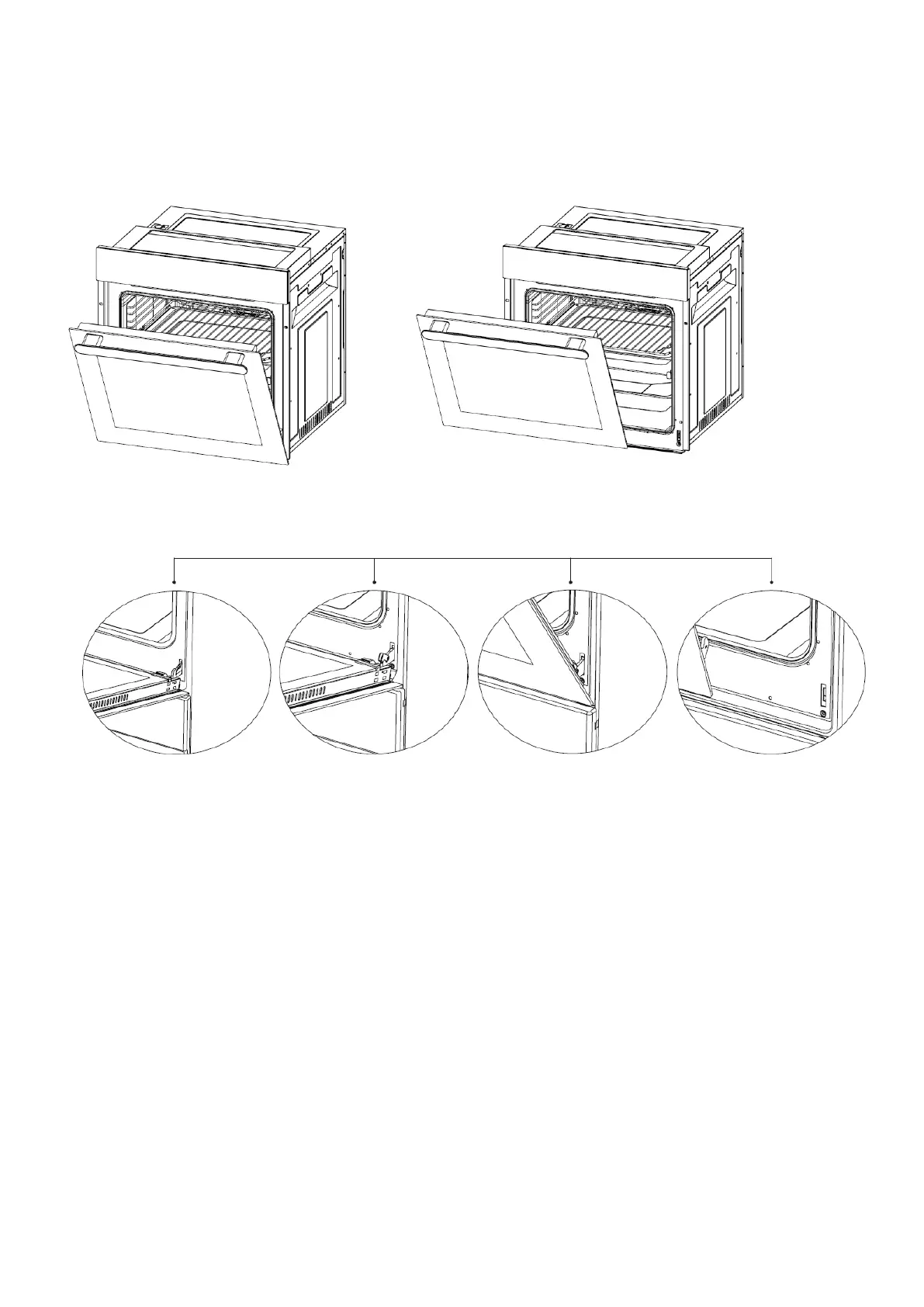

Figure 7.1
Open the door
completely by pulling
the oven door toward
you. Then, as shown in
figure 7.1, pull the
hinge lock up with a
screwdriver and
perform the unlocking
operation.
Figure 7.2
As shown in figure 7.2,
bring the hinge lock to the
maximum angle. Bring
both hinges that connect
the oven door to the oven
to the same position.
Figure 8.1
Then, close the oven
door you have opened so
that it shall lean against
the hinge lock as shown
in figure 8.1.
Figure 8.2
To remove the oven door,
hold the door with both
hands when it is at a close
level to the closed position,
and pull it up as shown in
figure 8.2.
Figure 7
Figure 8
