11

ENGLISH

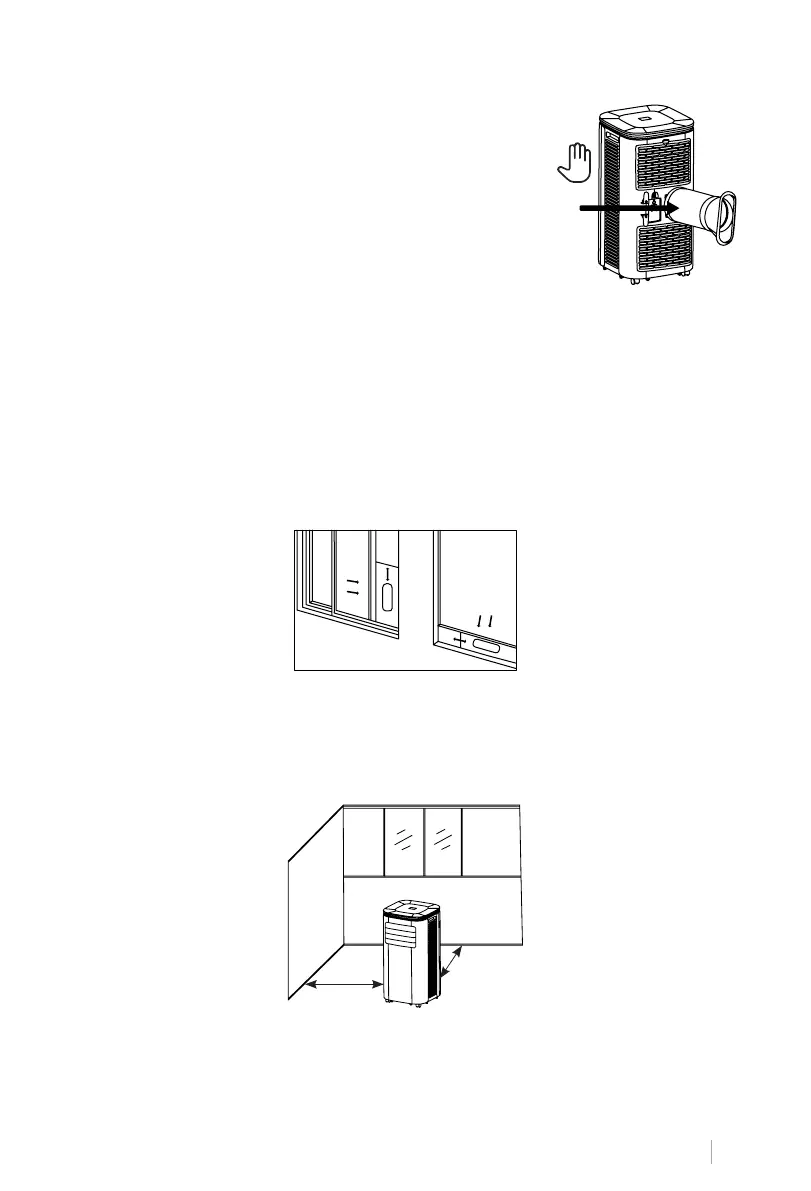

INSTALLATION OF THE HEAT PIPE

INSTALLATION OF THE WINDOW SEALING PLATE

INSTALLATION OF THE APPLIANCE

1. Take out the outer connector assembly and the exhaust pipe

assembly, and remove the plastic bags;

2. insert the heat pipe assembly (the end of the exhaust joint)

into the back panel vent slot (push to the left) and complete

the assembly.

1. Half open the window and mount the window sealing plate assembly to the window. Com-

ponents can be placed in horizontal and vertical direction.

2. Pull the components of the window sealing plate assembly open, adjust their opening dis-

tance to bring both ends of the assembly into contact with the window frame, and x the

components of the assembly.

Notes: The at end of the exhaust pipe joints must be snapped into place. The pipe cannot be

distorted nor have substantial turning (greater than 45°). Keep the ventilation of the exhaust

pipe not blocked.

1. Move the air conditioner with installed heat pipe and ttings in front of the window, and

the distance between the body and walls or other objects shall be of at least 50 cm.

50 cm

50 cm
