No obstructions below cooktop
Suggested installation to avoid
interference below cooktop
A
B
C
D
A
B
C
D
E
F

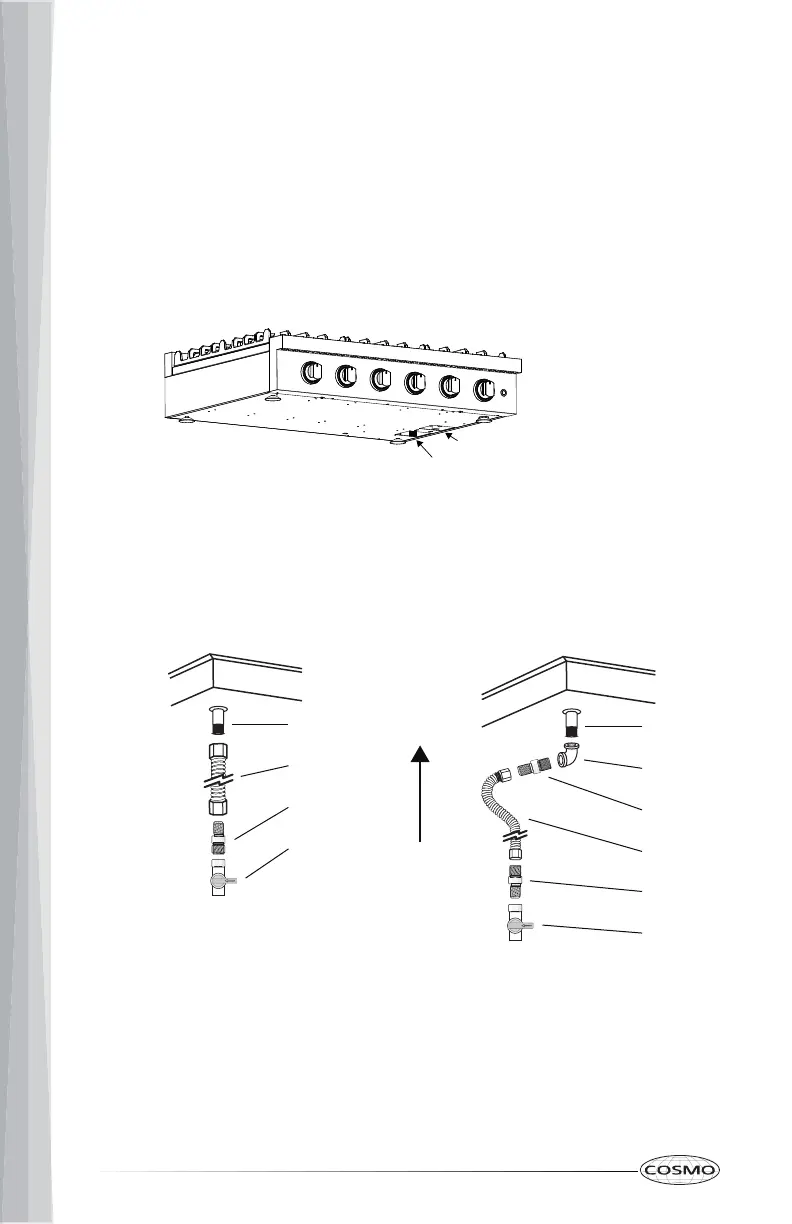

Gas flow into cooktop
A. ½" manifold entrance
B. Flexible connector
C. Flare union adapter
D. Manual gas shutoff valve
A. ½" manifold entrance
B. ¾" (1.9 cm) elbow
C. Flare union adapter
D. Flexible connector
E. Flare union adapter
F. Manual gas shutoff valve
Gas pressure regulator
¾"
male pipe thread
2. Apply pipe-joint compound made for use with Natural and LP gas to the
smaller thread end on one of the flexible connector adapters and the ½"
pipe fitting at the bottom right of the cooktop base.
3. Attach one end of the flexible connector without an adapter to the ½"
pipe fitting at the bottom right of the cooktop base, and the other end
with the pipe-joint compound applied adapter to the gas shutoff valve.
Check that connector is not kinked.
Note: A gas pressure regulator is pre-installed at the bottom of the
cooktop.
4. Tighten all connections, being certain not to move or turn the gas
pressure regulator. Use a combination wrench and channel lock pliers
where necessary.
