3. Pl
ace range hood on the wall above the horizontal reference line, and
make sure it is level. Mark the mounting slots on back of range hood on
the wall, and rest range hood on covered surface.
4. Align the mounting arms on range hood mounting bracket with the
mounting slot markings on the wall, and make sure it is level. Mark
centers of the (3) mounting screw locations on the wall.
IMPORTANT:
• All mounting screws must be installed into wood stud where possible.
If there is no wood stud to screw into, additional wall framing
supports may be required, or use the 8 x 35 mm wall anchors with the
4 x 30 mm screws.
5. For wood, drill 5/32" (4mm) pilot holes at all locations where mounting
screws are being installed into wood.
For wall anchors, drill 5/16" (8 mm) holes at all locations where wall
anchors are being used.
6. Secure the mounting bracket on the wall with (3) mounting screws.
For wood, install the 4 x 30 mm mounting screws.
For wall anchors, install the 8 x 35 mm wall anchors and install the 4 x 30
mm mounting screws into the wall anchors.

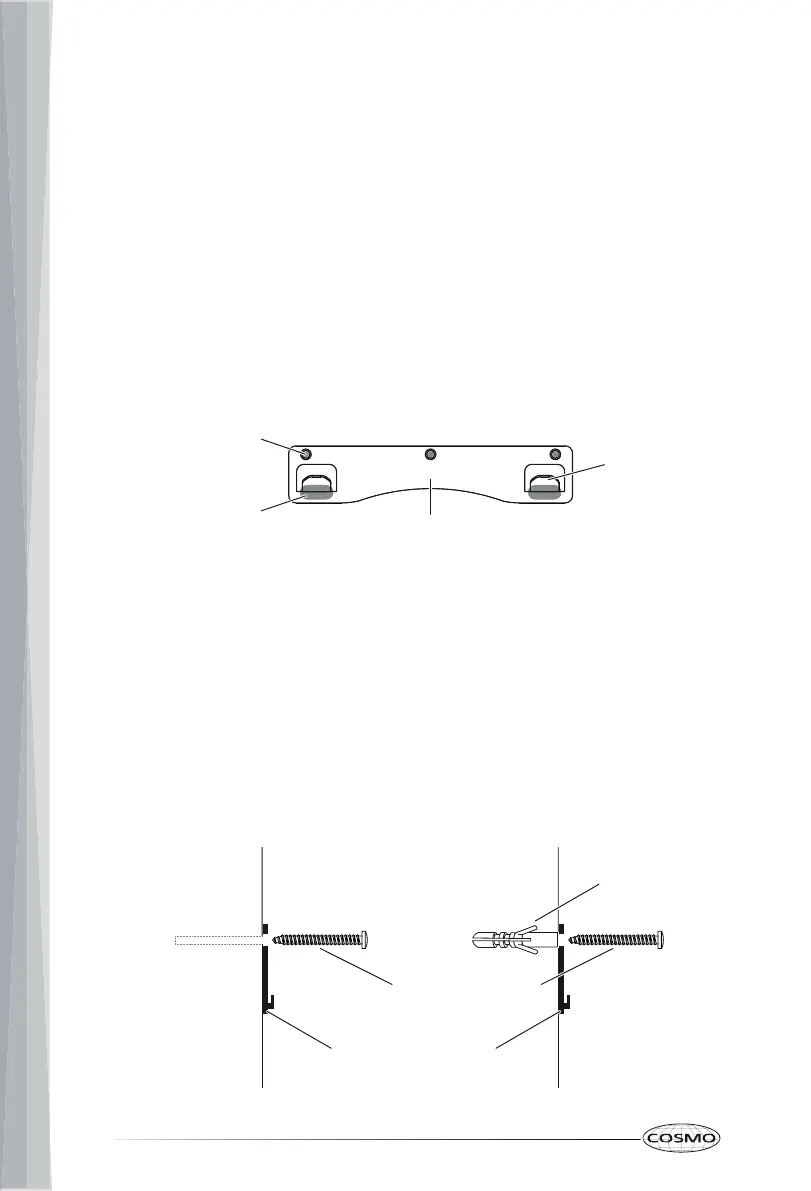

Range hood mounting bracket
Mounting arm
Range hood
mounting slot
markings
Mounting screw
location
WALLWOOD STUD
Mounting bracket
Wall anchor
Mounting screw
