ENGLISH
FAQ
1. Can I use the XD3 RGB as a standalone part?
No, this is a water-cooling pump with integrated reservoir which requires a complete custom water-cooling
system, including cold plates (water blocks) and radiator. For more information, please visit corsair.com.
2. Can I use the XD3 RGB with aluminium water-cooling equipment?
No, you cannot. Certain parts are made from copper and brass and should not be mixed with aluminium.
3. Can I connect the RGB header directly to my motherboard?
Yes you can – using the included RGB ADAPTER CABLE (M). See page 9 - CONNECTING THE XD3 RGB
LIGHTING TO THE MOTHERBOARD
4. Can the XD3 RGB pump be controlled without the use of CORSAIR iCUE Commander PRO?
While it is possible to use XD3 RGB without a CORSAIR iCUE Commander PRO, doing so will remove the
automated pump speed control in CORSAIR iCUE software. The pump speed may be manually controlled
by motherboard UEFI when XD3 RGB’s 4-pin fan PWM connector is connected.
5. How many RGB devices can I daisy-chain to a single channel on a CORSAIR controller?
CORSAIR recommends you connect no more than three (3) Hydro X Series RGB devices of any type
connected in a series on a single channel. However, you can connect one (1) XC7/XC9 water block, two (2)
XG7 RGB water blocks and one (1) XD3 RGB pump unit for a total of four (4) devices. Do not mix CORSAIR
fans or RGB LED strips and CORSAIR HYDRO X products on the same channel on the controller. Use a
dedicated channel for other components.
Figure 2
Figure 3
Figure 1
D
4. TurnonthepowerbyippingtheONswitchon
the PSU. The pump motor will be primed with
coolantfromthereservoirandwillstartowing
through the system. Turn the power OFF before
the reservoir is emptied. Do not let the pump run
dry or without coolant in the reservoir as this will
damage the pump (Figure 3)!
5. Repeat steps 2 and 3 until your custom cooling
systemisfull.CORSAIRrecommendsnottoll
thereservoirmorethanabout0.5cm(1/5˝)from
the top.
6. Oncethesystemislledwithcoolant,CORSAIR
recommends running it for 24 hours to remove
any air trapped in the components and to make
sure there are no leaks in the system. Once you
have thoroughly leak-tested the system, turn OFF
the PSU and disconnect ATX 24-pin PSU Jumper
Bridge. Reconnect the power to other computer
peripherals and start the computer.
P

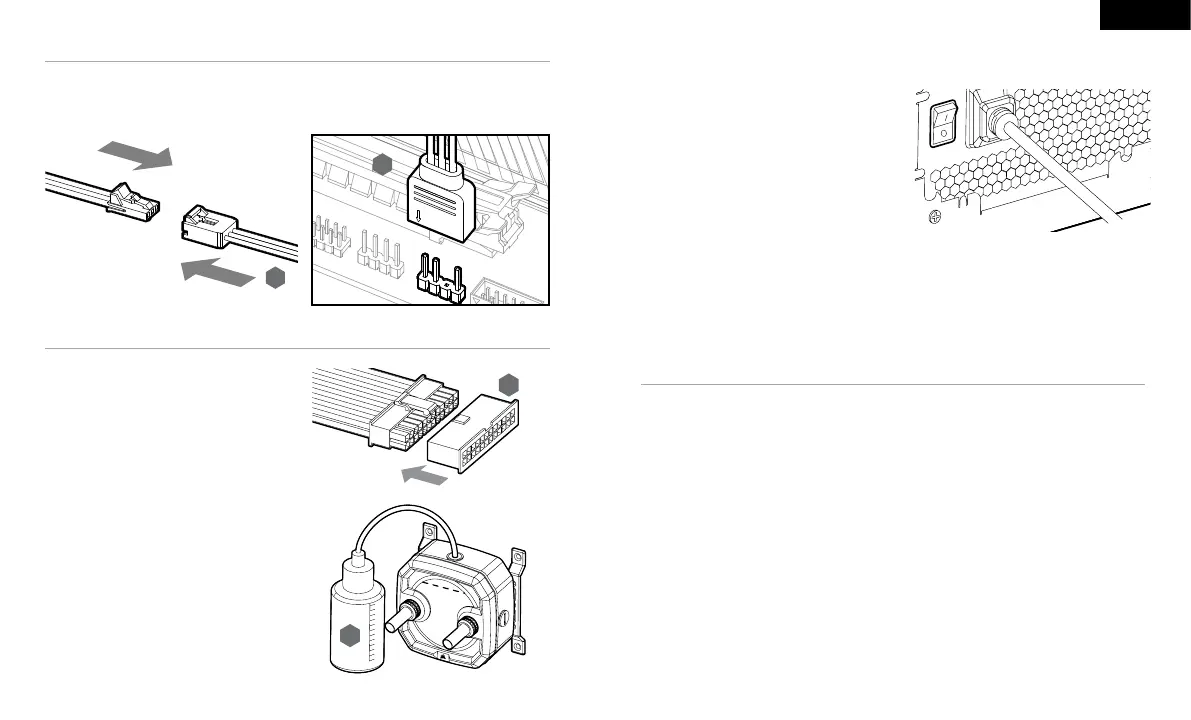

CONNECTING THE XD3 RGB LIGHTING TO THE MOTHERBOARD
1. Connect the XD3 RGB male connector into the RGB ADAPTER CABLE (M) female connector (Figure 1).
2. Connect the RGB ADAPTER CABLE female connector into the Digital RGB header on the motherboard.
Make sure the arrow on the RGB ADAPTER CABLE is plugged into +5V on the motherboard (Figure 2).
By using the motherboard adapter it is not possible to control the RGB illumination with iCUE software.
M
M
XD3 RGB
RGB ADAPTER CABLE
Figure 1 Figure 2
FILLING AND PRIMING THE XD3 RGB
1. Disconnect PSU power cables from all computer
components except the XD3 RGB 4-pin Molex
power connector. Make sure the PSU is turned
OFF, either at the plug socket, or via the toggle
switch on the rear of the PSU. Connect the
enclosed ATX 24-pin PSU Jumper Bridge starter
to your PSU 24-pin ATX cable. This will allow you
to power on your XD3 RGB without powering on
the PC (Figure 1).
2. Disconnect the XD3 RGB’s pump 4-pin fan
connector. This will allow the pump to run at full
power, allowing for easier priming and bleeding
of air.
3. Fill the reservoir through the top G1/4 opening with
CORSAIRXL5coolantusingallingasktoabout
0.5cm(1/5˝)belowthetop(Figure2).
