7

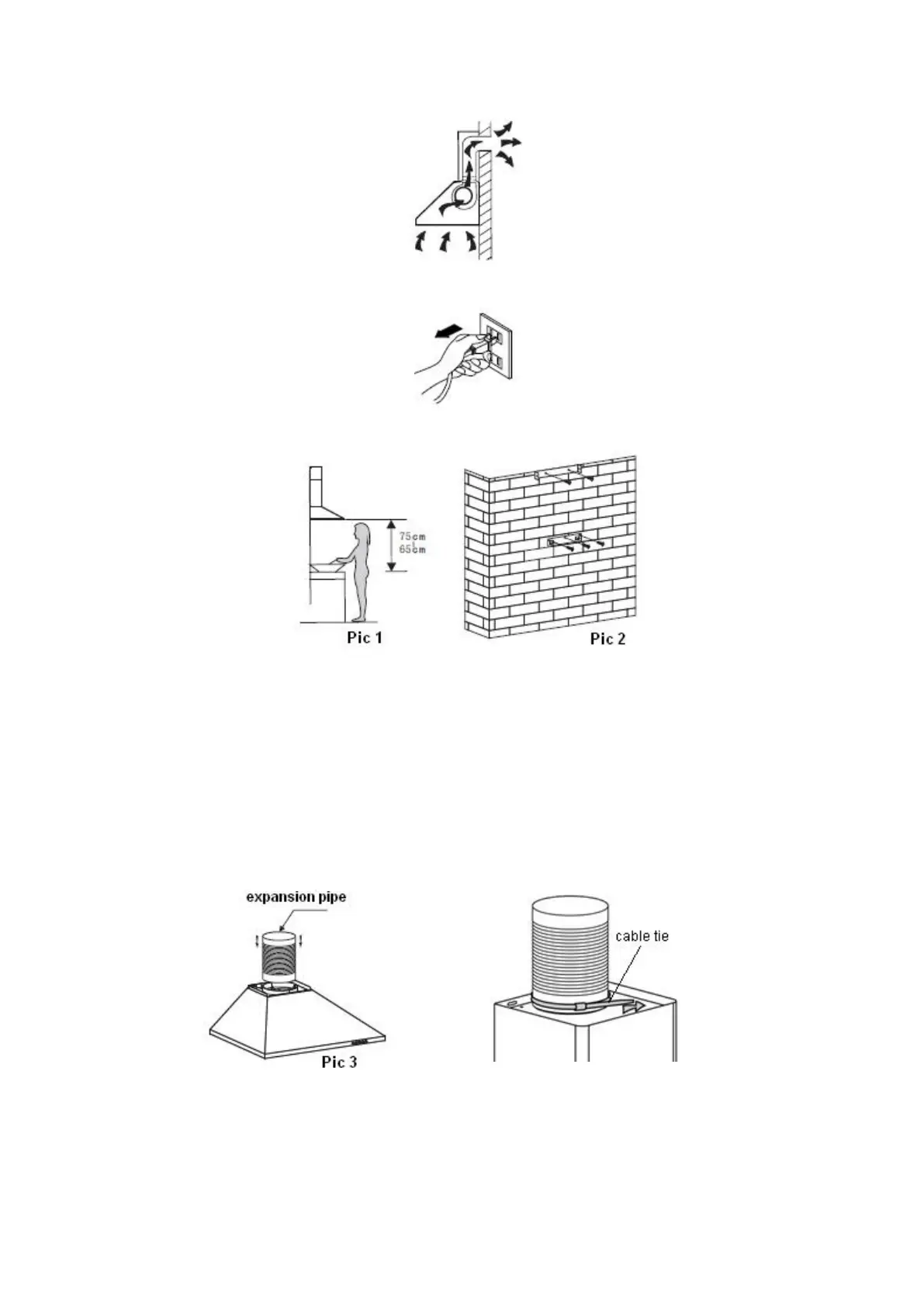

1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a distance of 65~75cm above the cooking
surface for best effect.
3. Drill 5 φ8mm holes on a suitable place to accommodate the hook and inside
chimney bracket once the installation height is fixed, and keep it in line. The fixed
position of the inside chimney bracket is the place of chimney. See pic 2.
4. Screw and tighten the hook onto the wall with the 3pcs screws (4mm x 40 mm) and
wall plugs provided.Then use 2 pcs ST4*40mm screws to fix the inside chimney
bracket.See pic 2.
5. Install the expansion pipe to the outlet and fixed by a cable tie. See pic 3.
6. Fix the outside chimney bracket on the outside chimney, and be sure that the inside
chimney can be adjusted the height in it freely.See pic 4.
