13

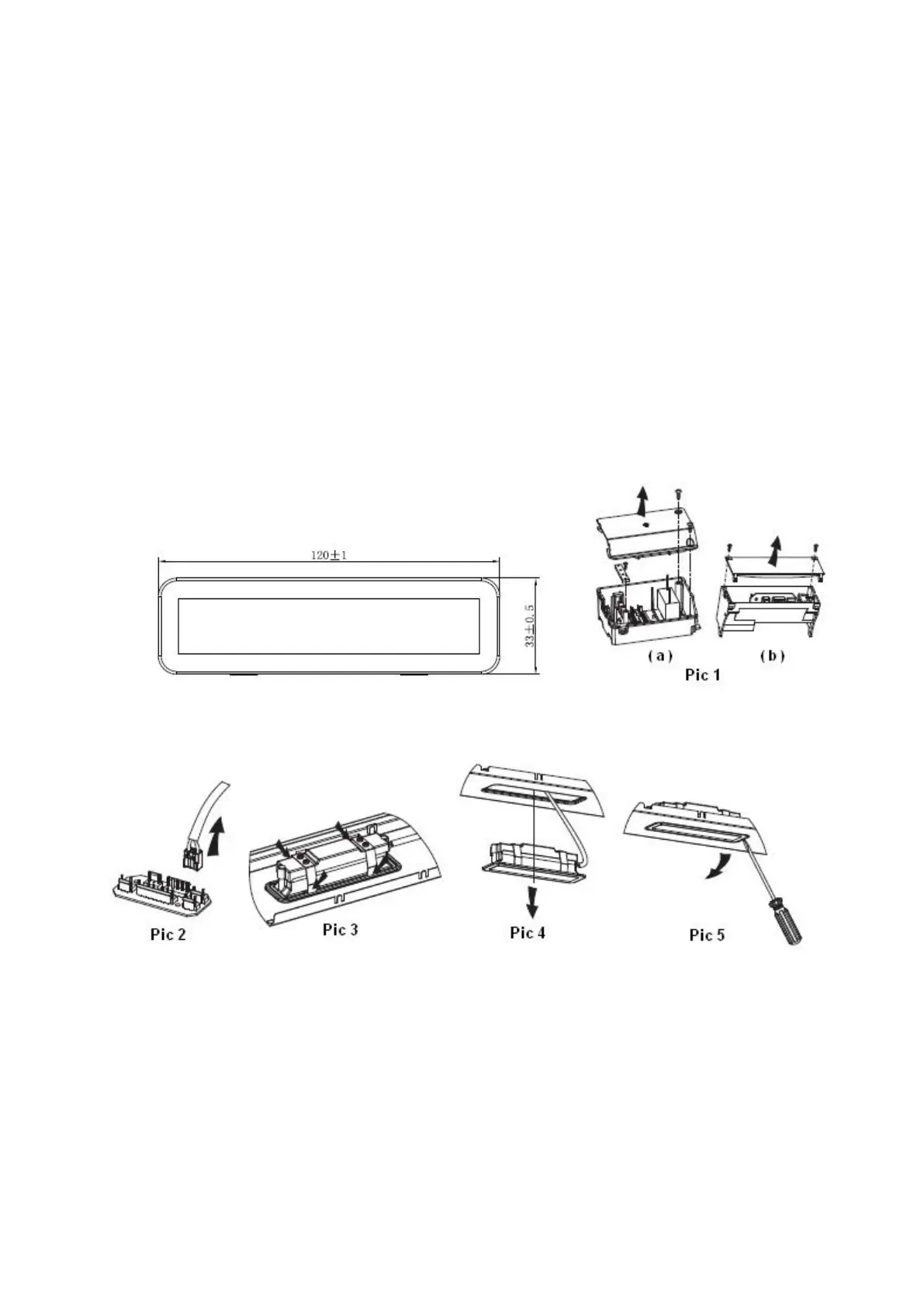

Changing the lights:
Remove the grease filter.
Find out the junction box, unscrew the screws on the junction box cover, then take
down the junction box cover(If there is wire pressing plate which pressed the light
wire, the wire pressing plate needs to be dismantled first).See pic 1.The junction
box has version a and b, depending on different models.
Find out the terminal of the light connecting wire and pull it out. See pic 2.
Way 1. Use a tool or the hand to press the spring splinter of both sides of LED light
to the inside, until the light is pressed out, see pic 3.Then slightly pull the light
connecting wire out, see pic 4.
Way 2.Use straight screwdriver to prize up the LED light bottom edge, see pic 5,
then slightly pull out the light connecting wire, see pic 4.
Apply the reverse procedure to install the light back.
• ILCOS D code for this lamp is: DBS-2/65-H-120/33
– LED modules –rectangle lamp
– Max wattage: 1×2 W
– Voltage range: AC 110-240V
– Dimensions:
