9
OPERATIONS MANUAL
REFRIGERATED BASES & PIZZA PREP TABLES
PREP TOP PAN OPENINGS
Sandwich top models are provided with a complete set of
food pans with divider bars and lid(s) with hood(s) for the pan
opening(s). All pans must be kept in place whenever your unit
is operating and lids should be closed whenever possible for
optimum performance. To remove the lid covering the pans on
your sandwich top (see Figure 10), lift the lid 1/2 way up and
carefully push in on one end at the bottom corner, so the pivot
pin comes out of the mating hole in the lid. Swing the end of
the lid forward, so it clears the end of the hood. Slide the entire
lid sideways, so the pivot pin on the opposite end is free from
the lid. To remove the back hood from the cabinet, take out the
screws located inside each end and along the back edge. If you
need to remove the liner and insulation from an insulated lid,
take out the screws along the back edge, let the back of the liner
drop down and rotate it so the front edge of the liner disengages
from the front of the lid.
Pizza Prep Tables are provided with a flat lid to cover the pan rail.
All pans must be in place when your unit is operating and lids
should be closed whenever possible for optimum performance.
To remove the lid covering the pans on Pizza Prep models (see
Figure 10A) rotate it 1/2 way up and lift the lid forward and up,
so the hinge pins disengage from the hinge bracket. If you need
to disassemble an insulated lid, see instructions above.

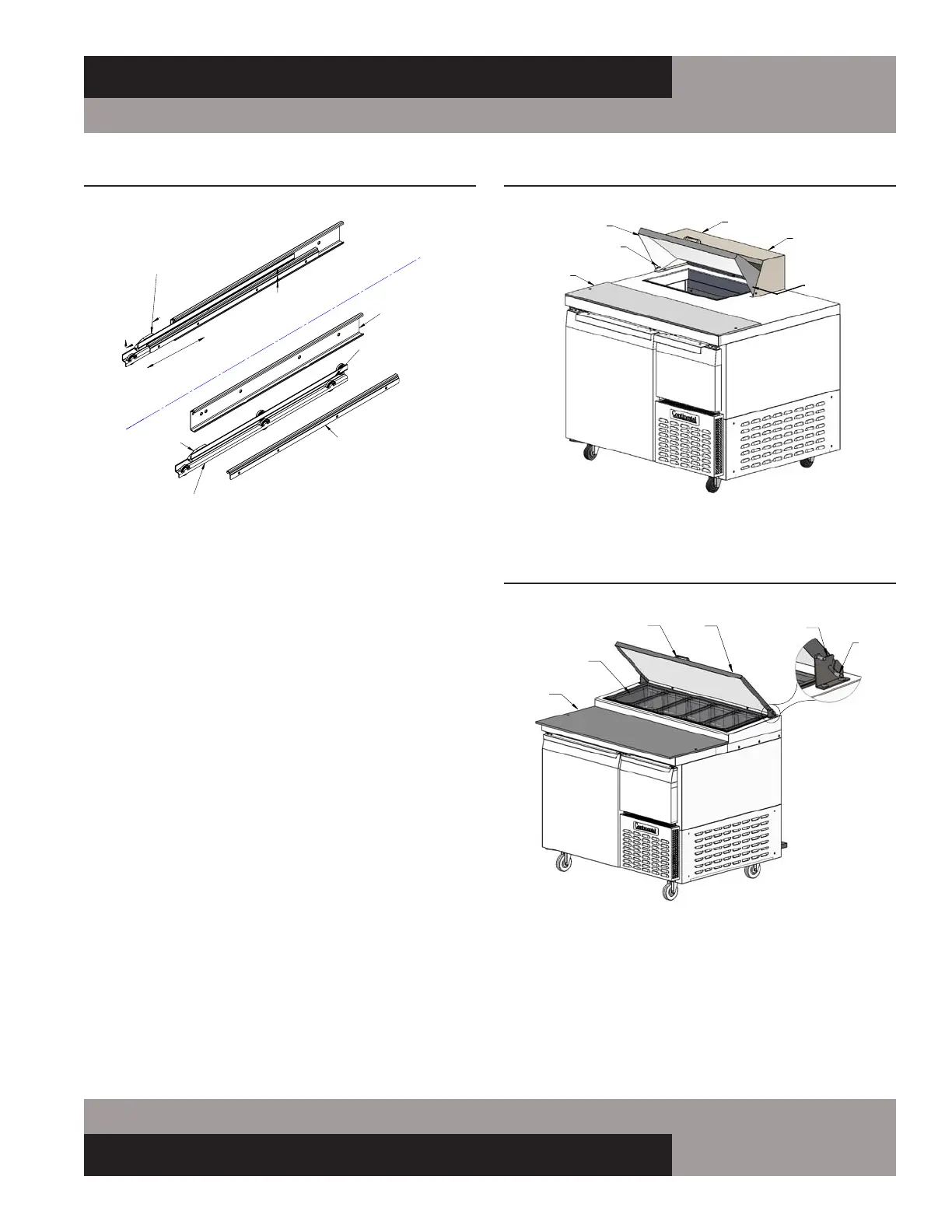

FIGURE 9: Drawer Slide
SLIDE CLIP FORWARD
& PRESS HERE
TO DISENGAGE
PUSH UP ON
LEVER TO
DISENGAGE
DRAWER MEMBER
CABINET MEMBER
CENTER MEMBER
STOP CLIP
(EXPLODED VIEW)
RELEASE LEVER
DRAWER SLIDE ASSEMBLY
LEFT-HAND SHOWN (RIGHT-HAND OPPOSITE)
FIGURE 10: Sandwich Top Refrigerator Base Models
FIGURE 10A: Pizza Prep Table Pan Rail
HINGE DETAIL
CUTTING
BOARD
HANDLE
FOOD
PANS
LID
PIVOT
PIN
HINGE
BRACKET
CPA PAN RAIL LID
