REACH-INS & ROLL-INS
OPERATIONS MANUAL

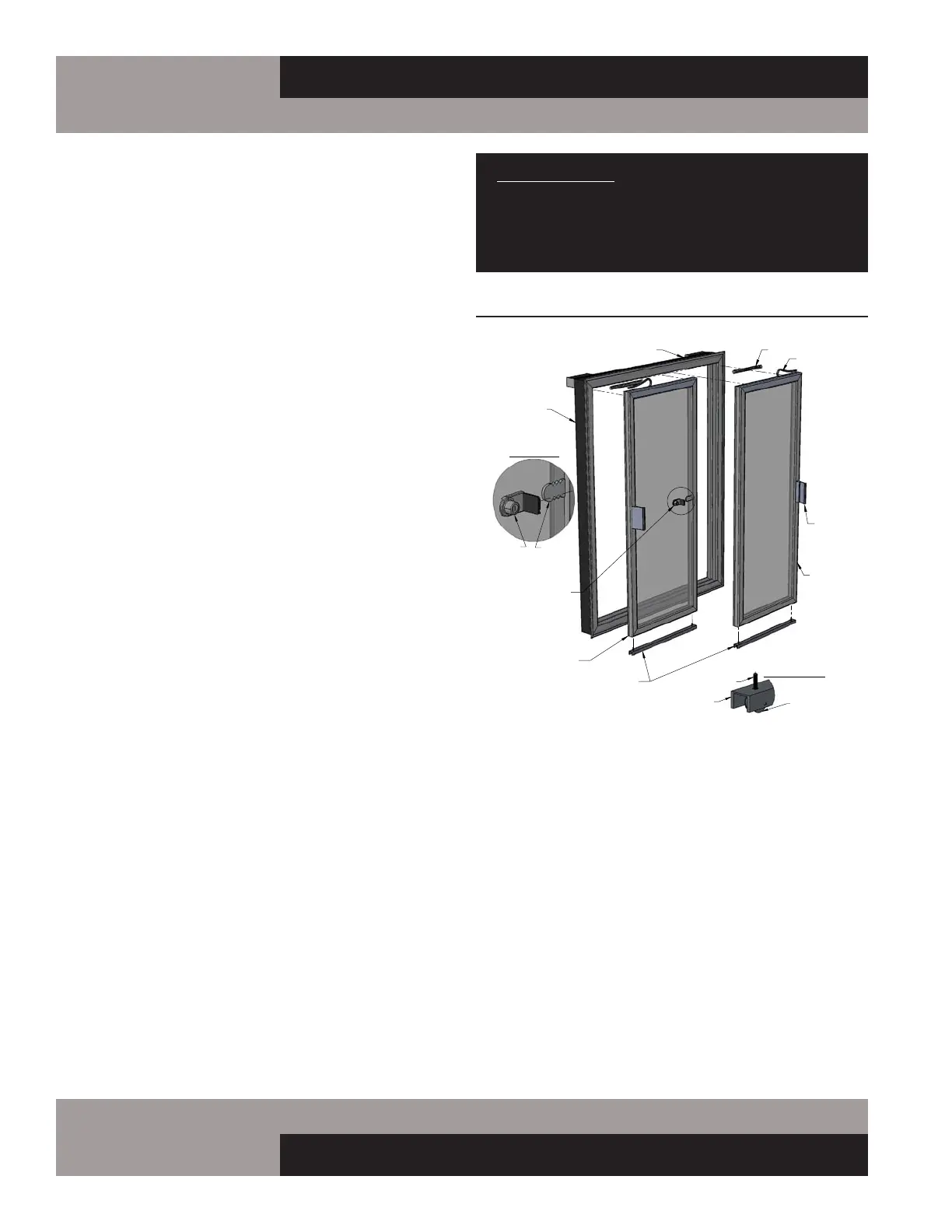

FIGURE 13: Sliding Glass Door Components
LEFT HAND
(INNER)
DOOR
RIGHT HAND
(OUTER)
DOOR
MOUNTING
FRAME
ELECTRICAL RACEWAY
HANDLE
POWER CORD
SPRING
DOOR LOCK
ROLLER DETAIL
LOCATING
STUD
ROLLER
TRACK
RECEIVER
PLATE
LOCK DETAIL
(WHEN PROVIDED)
LOCK
WITH STOP
SLIDING GLASS DOOR COMPONENTS
ROLLER TRACK
IMPORTANT NOTE: The glass used in sliding or hinged
glass doors is of special, sealed pane design and can-
not be replaced with ordinary window or plate glass.
If it becomes necessary to replace the glass, it can be
obtained directly from the factory.
DIGITAL THERMOMETER WITH ALARM
Your NSF-approved digital thermometer with alarm provides
precise temperature indication from a remote sensing bulb,
located inside the cabinet on the left-hand wall. Additional fea-
tures include:
• Large, easy to read LED display (24-Volt AC)
• Data logging highest and lowest temp
• Flashing display visual alarm
• Battery backup (9-volt battery not included)
• Adjustable alarm set points (2)
• Alarm reset switch (manual, automatic)
• NO/NC alarm relay contacts (1 amp)
• Switchable alarm delay (0 or 45 minutes)
• 24VAC output for audible alarm (by others)
• Switchable audible silencing (none, 5 or 45min)
SLIDING GLASS DOOR REMOVAL
AND ADJUSTMENT
All sliding glass doors are easily removable for thorough clean-
ing. To remove the doors, slide the outer door (see Figure
13) open about half way, grasp the door on both sides and lift
straight up, off roller track, which will remain in the mounting
frame. Tilt the bottom of the door out, so it clears the locating
studs on the roller track and the bottom of the mounting frame.
Gently set the door down, being careful not to over-stretch the
self-closing spring and power cord that are attached to the top of
the door. Move the door towards its closed position, to release
any tension on the spring and power cord. The roller track will
simply lift out of the channel in the bottom of the mounting
frame. Repeat this procedure for the inner door.
To replace the doors, reverse the steps above, making sure the
door seats properly over the locating studs on the roller track.
If your sliding door does not close firmly, remove the doors,
starting with the outer door, as described above. Check the bot-
tom of the door, mounting frame channel, and rollers to make
sure they are clean and free of debris. If the rollers are damaged
or do not turn freely, contact the factory to order replacement
parts. The tension on the self-closing spring is adjustable, to
provide quicker and firmer closing, or to provide slower and
more gentle movement. Remove the screw attaching the end
of the self-closing spring to the top of the door. Note that there
are (3) threaded holes provided in the top of the door. To adjust
the door so it closes slower, reattach the spring at a position
closer to the handle side of the door. For a faster, firmer closing,
relocate the spring at a position further away from the handle
side of the door.
If the door does not seal evenly along the handle side when
in the closed position, the tilt of the door is adjustable. A flat
washer can be placed over the locating stud on the top of the
roller track, between the track and the underside of the door, to
level the door. For example: if the door contacts the mounting
frame at the top when it is closed, but there is a gap at the lower
half of the side edge, remove the door as described above. After
lifting the door off the roller track, place a flat washer over the
stud located closest to the handle side of the door. Replace the
door, recheck the seal, and readjust if needed. (To close a gap at
the upper half of the door, place a washer over the locating stud
farthest from the handle side of the door.)
