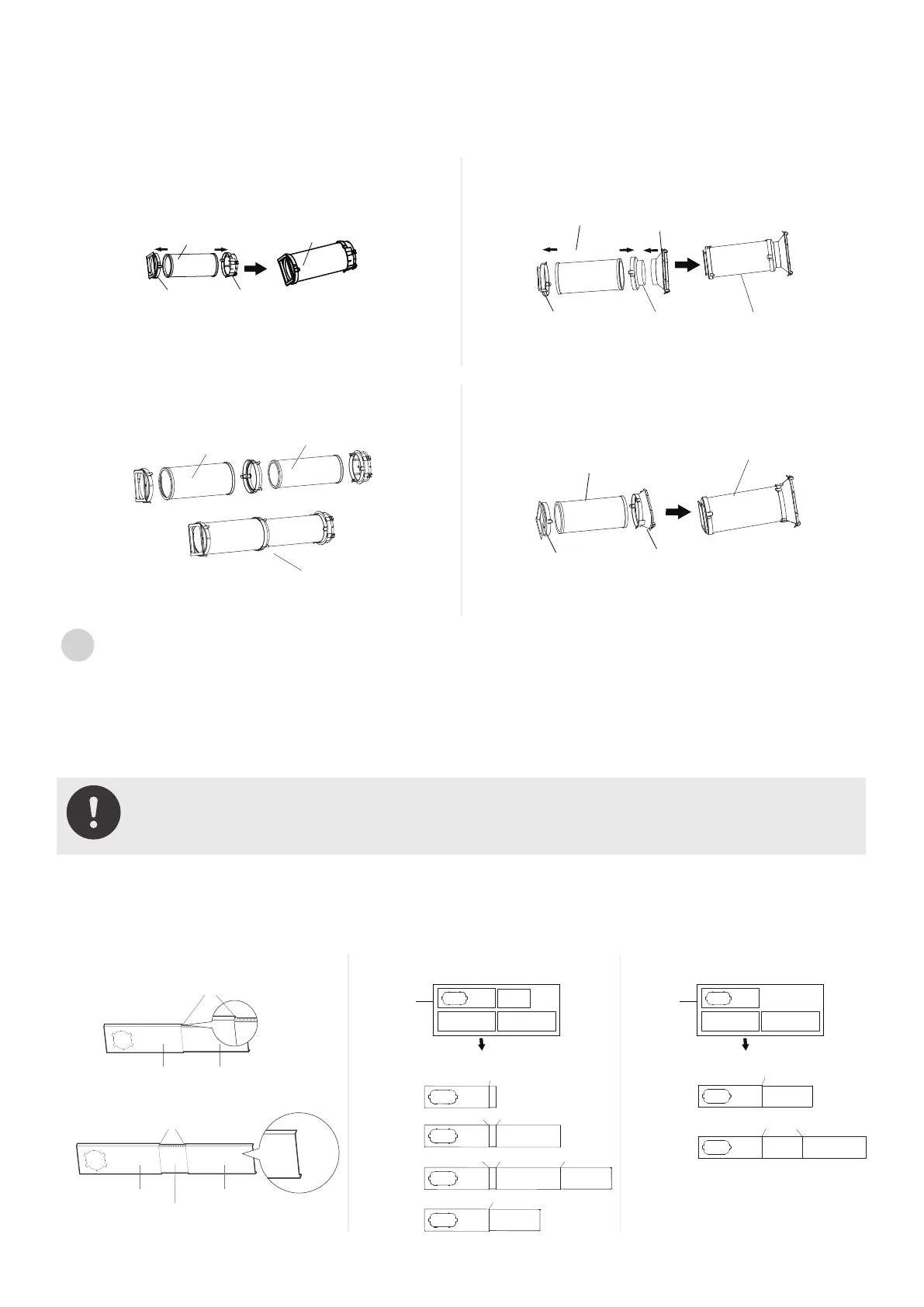

Installation guide
Connect the adaptor to the unit and the window
Unit adaptor
Window slider
adaptor
Exhaust hose
Exhaust hose
assembly
Model A Model B
Window slider
adaptor
Exhaust hose
assembly
Exhaust hose
Air exhaust
passage
Unit adaptor
Exhaust hose
Extended Exhaust
hose
Exhaust hose assembly
Model C Model D
Exhaust hose
assembly
Exhaust hose
Unit adaptor
Air exhaust
passage
1
The Exhaust Hose assembly installation (window type)
Press the exhaust hose (or extended exhaust hose) into the window slider adaptor
and unit adaptor, clamp automatically by elastic buckles of the adaptors.
NOTE:
Please install the exhaust hose assembly according to the fittings in your kit.
MODEL A MODEL B
1+2：
Bolt
1+2+3：
Bolt
Bolt
1+2+3+4：
Bolt
BoltBolt
1+4：
Bolt
Window
Sliders
After assembly
Before assembly
Window
Sliders
After assembly
Before assembly
MODEL C
Bolt
Bolt
1+2：
1+2+3：
Bolt
Window slider A Window slider B
Bolt
Window slider A
Window slider B
Window slider C
Bolt
Inside
Outside
or
18
