INSTALLATION
As a first step, proceed with the following drawings:
A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood
is to be fitted.
A horizontal line A at 970 – 1070 mm above the cooker top.
A horizontal line B at a
A horizontal line C at a 243 mm below the horizontal line A .
Mark Points:
Mark a point (1) on the horizontal line A, 80 mm to the vertical reference line.
Repeat this operation on the other side and on the vertical reference line, checking that the
three marks are leveled.
Mark a point (2) on the horizontal line B, 60 mm to the vertical reference line.
Repeat this operation on the other side, checking that the two marks are on the same
horizontal line.
Mark a point (3) on the horizontal line C, 100 mm to the vertical reference line . Repeat
this operation on the other side , checking that the two marks are leveled.
Fix the brackets :
Drill holes at the marked points with a ɸ10 mm drill bit.
Insert the Wall Plugs 11 into the holes.
Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A.
Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.

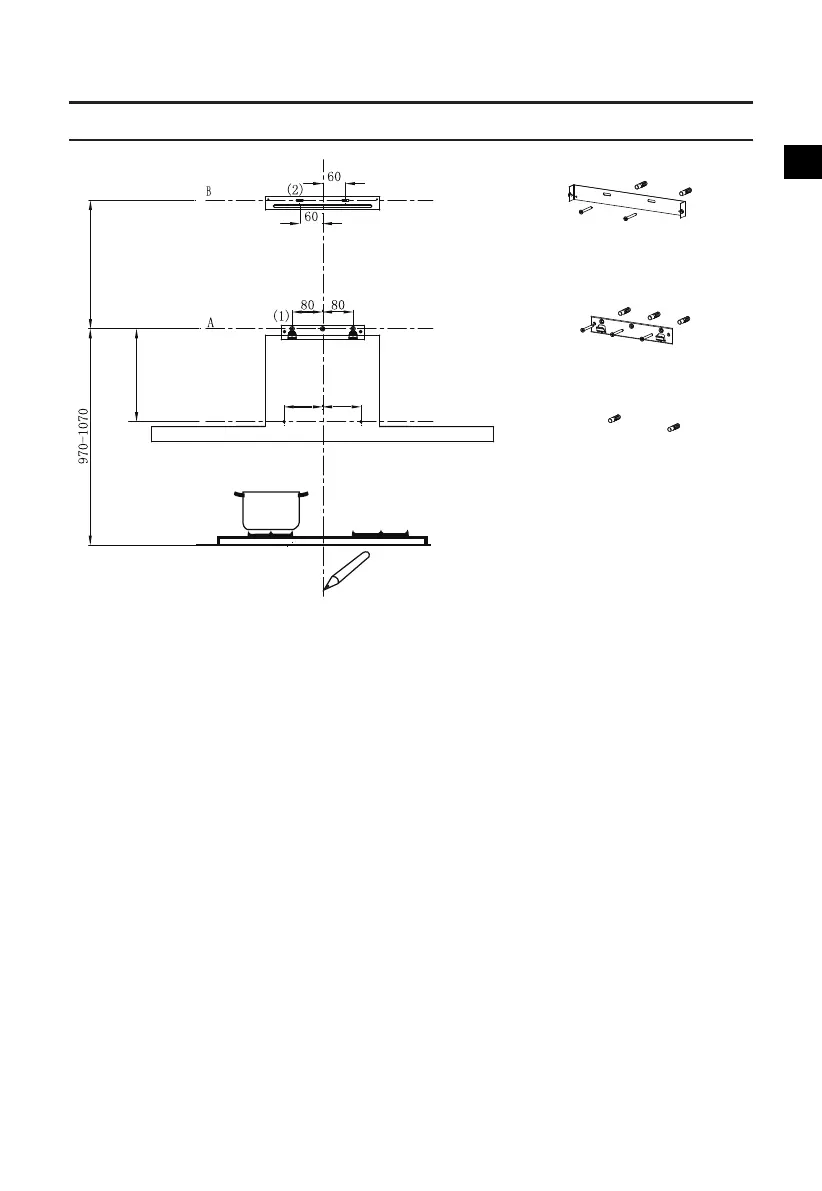

WALL DRILLING AND BRACKET FIXING
100
100
C
(3)
Vertical reference line
243
2 3 4
6 7 8
9 10 11
5
A.
700
700 mm above the horizontal line
DE
EN
