PL70-A8-EN
03/03/2017
Product Information
Maintenance
Implement a comprehensive safety maintenance program to
provide regular inspection for all phases of motor operation
and air supply equipment.
Daily:
• Visual inspection of air supply hose and connections
• Inspect all external motor components
• Inspect the motor mountings for secure and proper
assembly.
• Check the motor for excessive vibration or noise.
• Maintain proper lubrication levels.
Weekly:
• Inspect the air supply hose for wear or damage.
• Make sure the air inlet connection is securely tightened.
• Make sure all motor fasteners are properly tightened.
• Inspect any guards (if equipped) for damage.
6 months or sooner if needed:
• Check individual parts and replace as necessary.
• Replaceallo-ringsandseals.
Valving
If an air valve is used with this motor, it should have a full
owairpassagetoutilizefullpowerofthemotor.Forquick
motorstops,anall-portsclosed-in-neutraltypevalvewitha
spring return should be used.

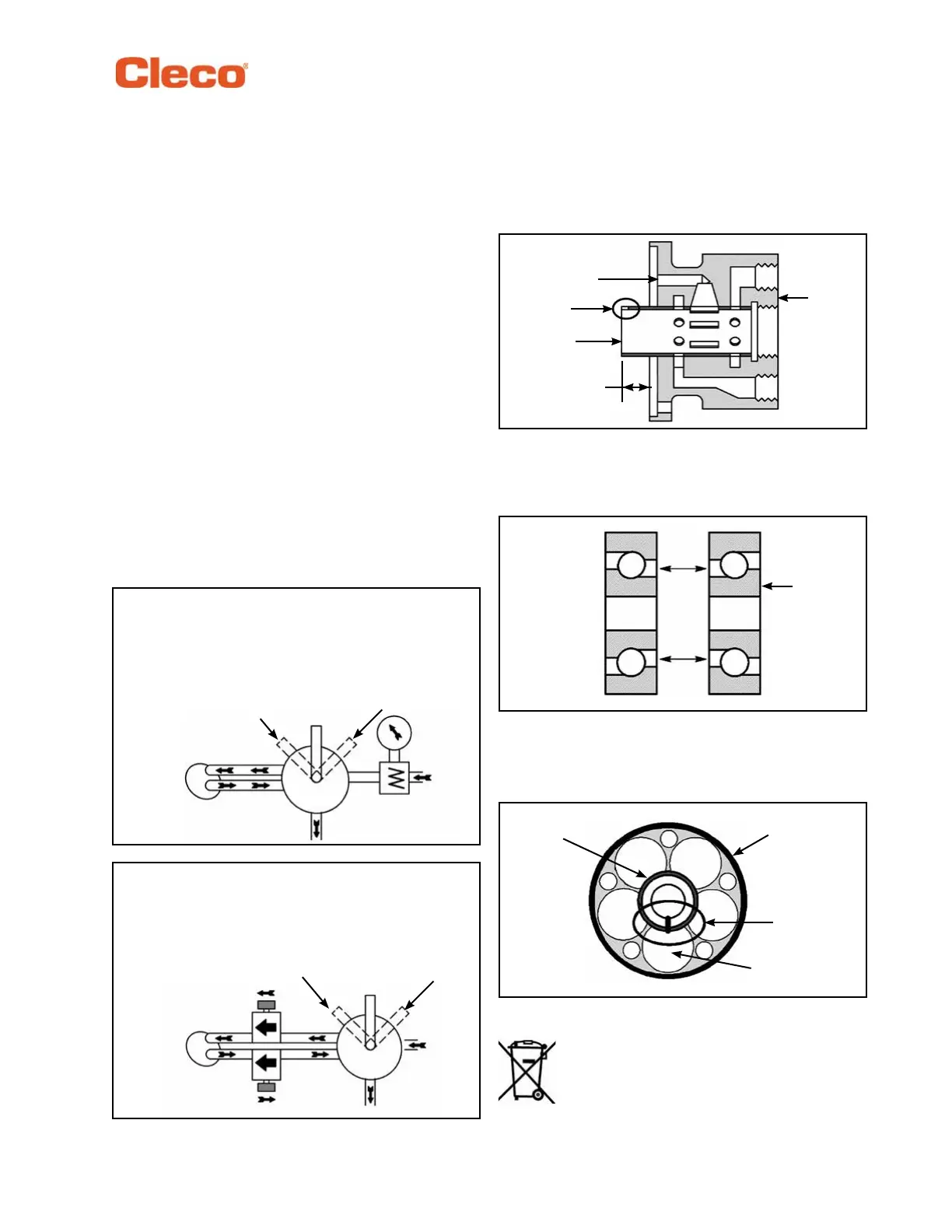

Distributor bushing assembly
If replacement is necessary, press the new distributor
bushing into the head as shown below. For proper alignment,
notch “A” in the bushing must be oriented with hole “B” in the
head as illustrated.
Duplex bearing assembly
Duplex bearing assembly on the driveshaft. The small
diameters of the duplex bearing must face each other when
assembled, see below.
Bevel gear timing mark
Make sure the timing mark on the bevel gear is aligned
with the center of a piston chamber before installing the
driveshaft assembly into the cylinder.
Disposal
Observe and comply with all local disposal
guidelines for all components of this equipment
and it’s packaging.
A8
Motor
Forward
Reverse
Off
A
B
C
D
E
Torque Output Control
A) When air enters from this side
B) it must exhaust without restrictions.
C)Four-Wayvalve
D) Pressure regulator
E) Air supply
A8
Motor
Forward
Reverse
Off
A
C
D
Control Forward and Reverse Speeds
A)Meteredowcontrol(inlet)
B)Free(open)owcontrol(exhaust)
C)Four-Wayvalve
D) Air supply
Distributor
Bushing
Hole“B”
Notch “A”
0.567
0.557
Head
Dupex
Bearing
Cylinder
Piston
Chamber
BevelGear
Timing Mark
Bevel
Gear
