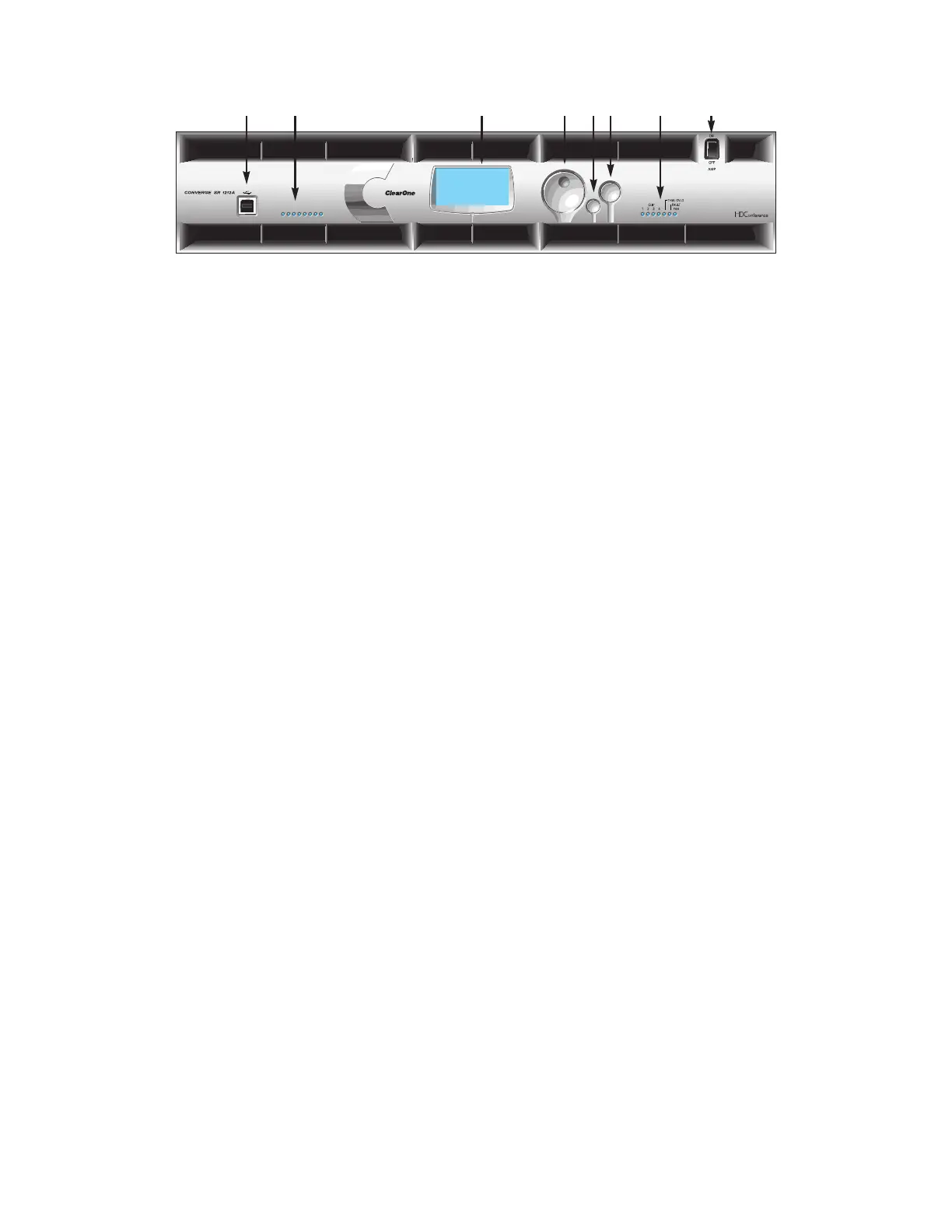

CONVERGE Pro SR1212A Front Panel
CONVERGE Pro Front Panel Control Descriptions
A. USB Type B Port: Provides convenient front panel connectivity for laptops and PCs.
B. Microphone-On LEDs: Indicate microphone gate status and mute state.
C. LCD Display: Shows model number, unit name, IP address, firmware version, menu pages, menu options,
configuration settings, and parameter values.
D. Menu Dial: Navigates the CONVERGE Pro LCD programming menu and enables you to modify basic
configuration settings.
E. ESC Button: Returns you to the previous screen on the LCD display.
F. Select Button: Displays the CONVERGE Pro LCD programming menu and selects the highlighted option.
G. LED Bar Meter: Displays the audio level of a selected input, output, processing, or fader channel. Default
meters: 880-Output 12, 880T-Output 12 , 840T-Output 8, 8i-Mic 1, TH20-Telco Tx, VH20-VoIP Tx, SR1212-
Output 12.
• AMP Fault Indicator LEDs(880TA, SR1212A): Indicates amplifier faults:
» 1-4 indicates clip
» 5 indicates thermal overload
» 6 indicates fault
» 7 indicates fan on/off
• Telco/VoIP Tx Rx Indicators (840T, TH20, VH20): Indicates transmit and receive activity during
Telco/VoIP calls.
H. Amplifier On/Off Switch (880TA, SR1212A): Turns power to the amplifiers on or off.
NOTE (880TA, SR1212A): This does NOT disconnect power from the AC mains. To disconnect unit
power from the mains, disconnect the unit’s power cord from the mains socket. To reconnect power, plug
the unit’s power cord into the mains socket following all safety instructions and guidelines.
I. Telco On/Off Button & LEDs: This button connects/disconnects the communications line attached to the
device while the LEDs indicate the connection status of the attached line (840T, TH20, VH20 (VoIP only),
880T, 880TA ).
SELECTMENU
ESC
1 2 3 4 5 6 7 8
A B C D E F G H
