13

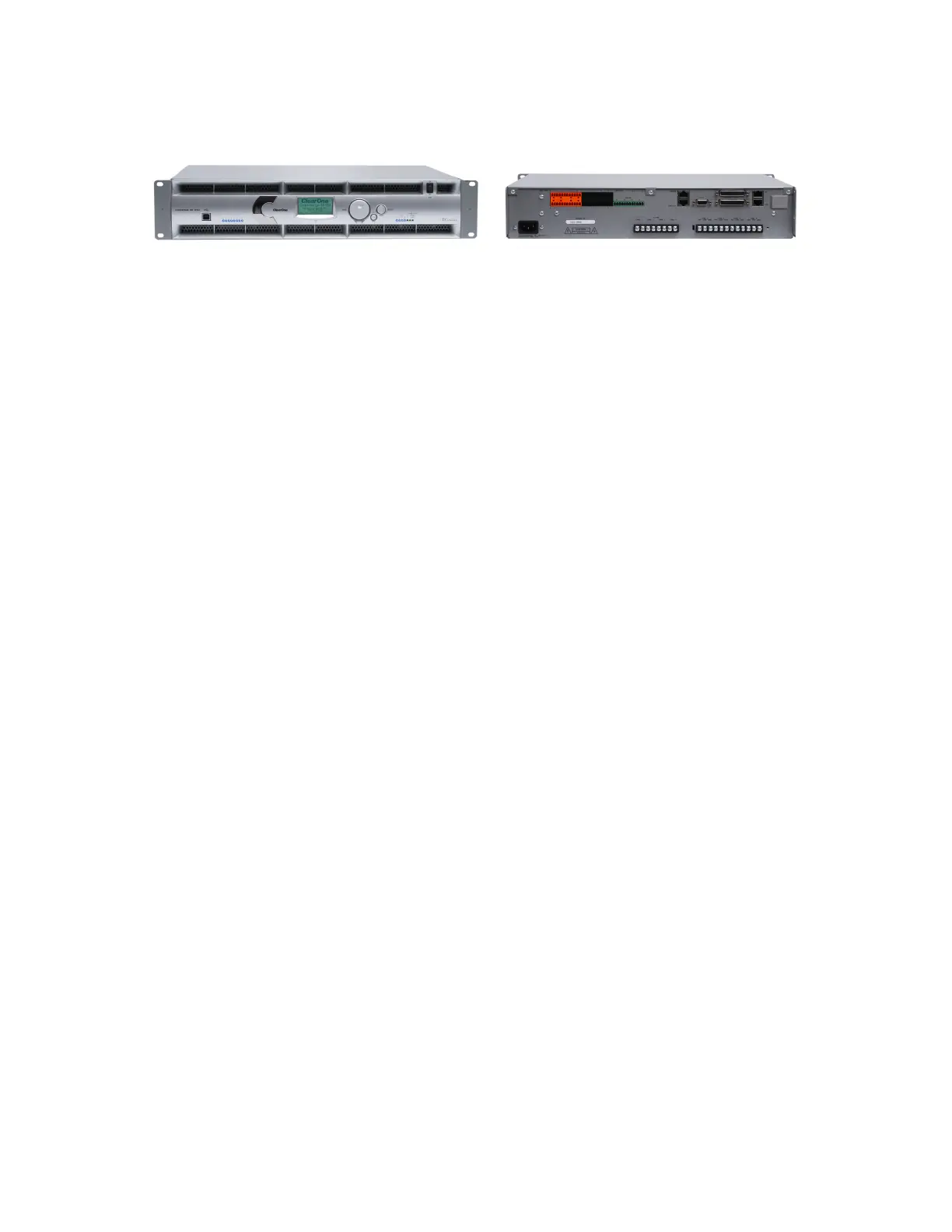

CONVERGE Pro SR 1212A
The SR1212A is a 12x12 digital matrix mixer that is the ideal solution for sound reinforcement and room combining
applications. In addition to improved audio performance, enhanced management, and simplified configuration, the
SR1212 offers industry-leading expansion capabilities to accommodate virtually any size venue.
Advanced Conferencing Feature Set
• Increased resolution on Microphone Preamp stage
» 0 – 56dB in 7dB increments
• Management Improvements
» Integrated Ethernet and USB connections
» SNMP and HTML remote management agents with SMTP email alerts
» Web-based user and management control consoles
» Event scheduler
» Diagnostic console
• Simplified Configuration Software
» Drag & drop A/V and channel objects
» Selectable Console views—Unit, Matrix, and Channel
• Expanded serial command set
Superior Audio Performance
• First-microphone priority delivers clear audio to the far end
• 20Hz – 22kHz bandwidth for full-range audio response
• AGC & ALC to keep all participants’ audio levels balanced and consistent
Configuration Flexibility
• Scalable—link up to 34 CONVERGE Pro units together for up to 96 microphones and 16 telephone lines
• Enhanced expansion bus, featuring 18 mix/minus audio buses for routing between units
• Eight microphone gating groups (four internal & four global) allow separation of microphones into individual
gating groups
• 32 user-programmable presets can each be executed without disturbing other ongoing preset operations
• 255 Macros for customized audio control and configuration using a single command
Bekijk gratis de handleiding van ClearOne Converge Pro 840T, stel vragen en lees de antwoorden op veelvoorkomende problemen, of gebruik onze assistent om sneller informatie in de handleiding te vinden of uitleg te krijgen over specifieke functies.
Productinformatie
| Merk | ClearOne |
| Model | Converge Pro 840T |
| Categorie | Niet gecategoriseerd |
| Taal | Nederlands |
| Grootte | 58248 MB |
Caratteristiche Prodotto
| Gewicht | 3.3375 g |
| Aantal Ethernet LAN (RJ-45)-poorten | 2 |
| RS-232 port | 1 |
| Ingangsspanning | 100 - 240 V |
| Frequentie | 50/60 Hz |
