128

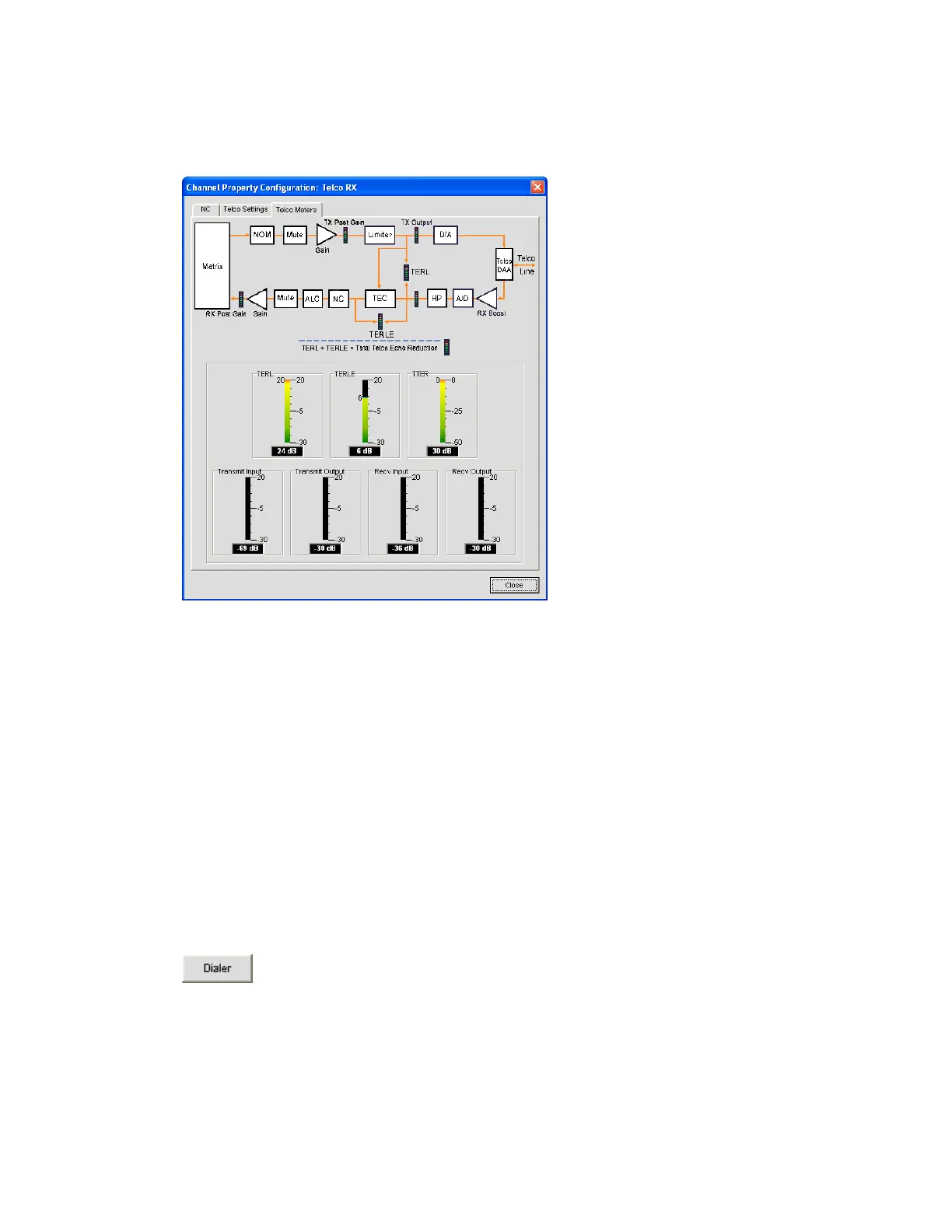

Telco Meters Tab (Not available on the VH20)
The Telco Meters tab displays a round-trip signal flow diagram for the selected Telco Rx, as well as real-time level
meters for the signal at each stage of processing. The settings on this tab cannot be modified.
NOTE: When you click the Close button (bottom right corner of screen), or close the window
manually, any changes you make in the tabs of the Channel Property Configuration:
Telco RX screen are automatically saved.
The Telco meters include:
• Telephone Echo Return Loss (TERL): This meter shows the amount of echo loss from the telephone line
to the unit.
• Telephone Echo Return Loss Enhancement (TERLE): This meter shows the enhancement added by the
telephone hybrid to reduce echo below the audible level.
• Total Telephone Echo Reduction (TTER): This meter shows the sum of TERL and TERLE.
• Transmit Input: This meter shows the audio level input from the matrix to the telephone line.
• Transmit Output: This meter shows the transmit audio level output to the telephone line.
• Receive Input: This meter shows the audio level input received from the telephone line.
• Receive Output: This meter shows the receive audio level output to the matrix.
Dialer Button
The Dialer button opens the telephone dialer, allowing you to place conference calls.
