120

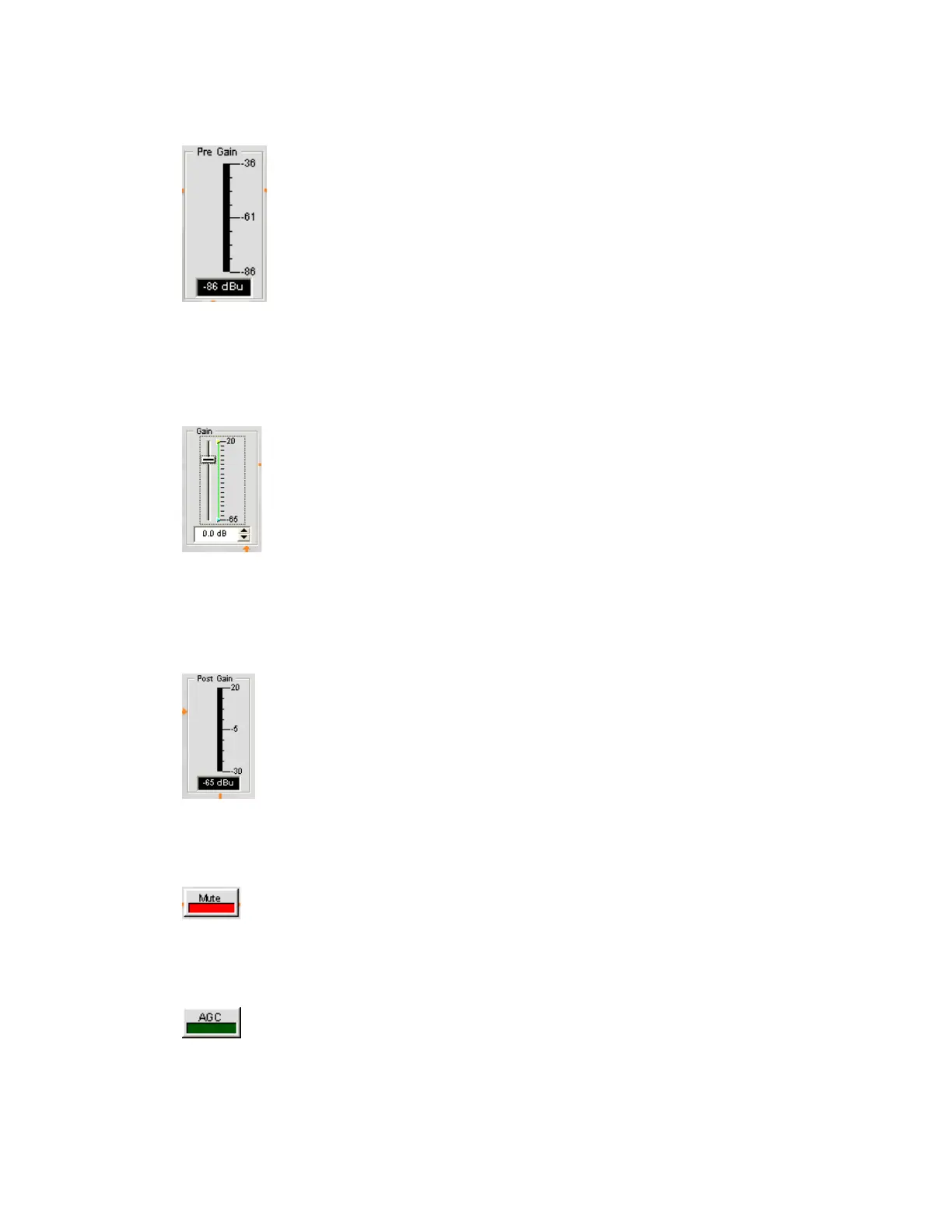

Pre Gain Meter
The Pre Gain Meter shows the line input level before gain adjustments.
NOTE: All meters in Console are peak-level meters.
Gain Slider
The Gain Slider adjusts the line input volume level. The MIN/MAX fine gain sliders are used to set minimum and
maximum gain settings, and to report min/max gain settings via serial commands. You can also set the gain in .5dB
increments using the Up/Down buttons, or enter a value directly in the field.
Post Gain Meter
The Post Gain Meter shows the input level after gain adjustments.
Mute Button
Clicking the Mute button toggles muting. The default is Off.
AGC (Automatic Gain Control) Button
Clicking the AGC (Automatic Gain Control) button displays the Channel Property Configuration dialog for the
selected input channel as shown below.
