5
SHARPY X FRAME / FD
2
1
1
2
3
7
5
0
V
A
F
u
s
e
T
1
0
A
2
5
0
V
6

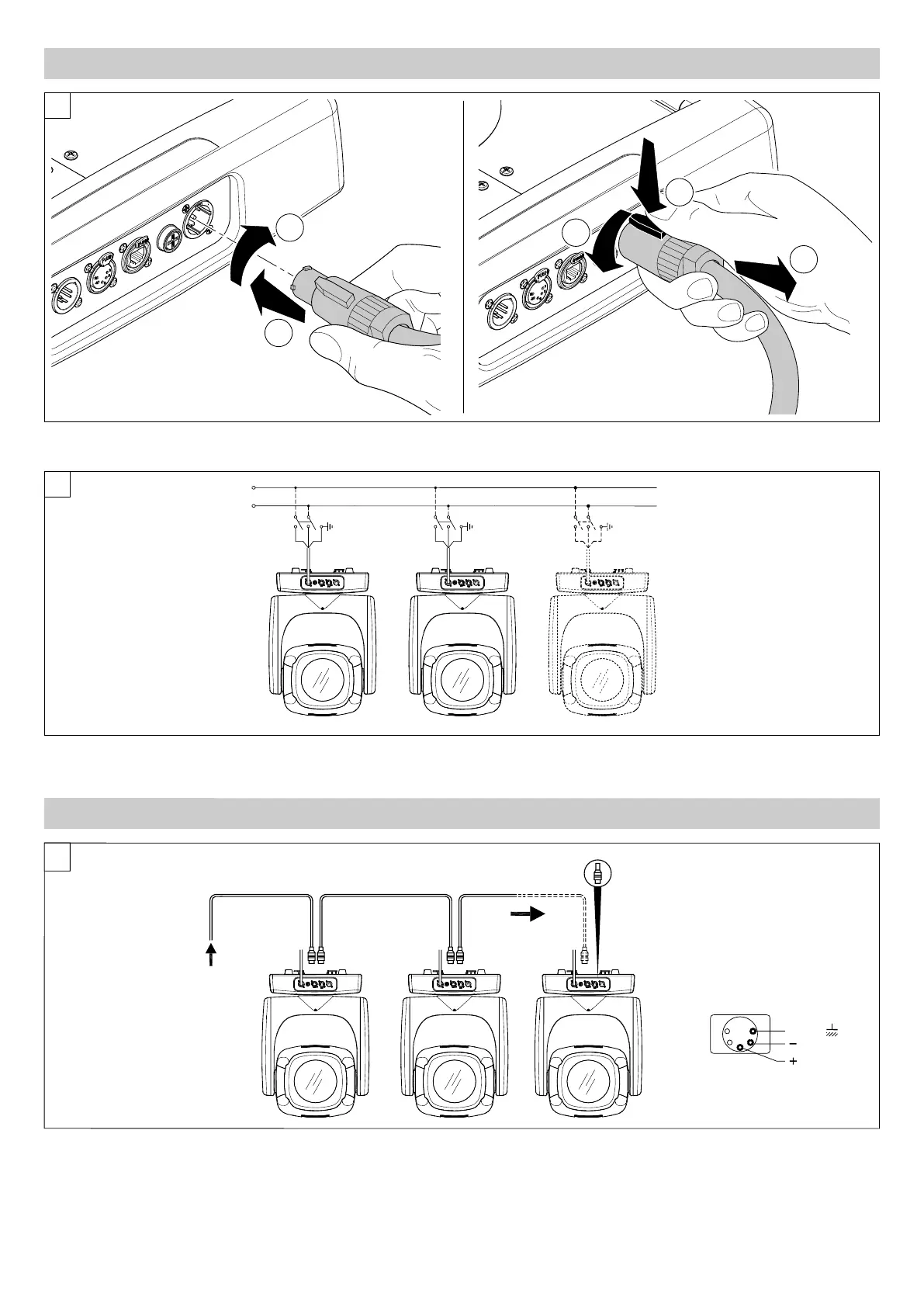

Connecting and disconnecting power cable - Fig. 6
3.2 Connecting to manis supply
Connecting to the mains supply - Fig. 7
Mains
7
Connecting to the control signal line (DMX) - Fig. 8
Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use
microphone cable or other cable with characteristics differing from those specified. The end connections must be made using XLR type 5 pin male/female
connectors. A terminating plug must be inserted into the last projector with a resistance of 120Ohm (minimum 1/4 W) between terminals 2 and 3.
IMPORTANT: The wires must not make contact with each other or with the metal casing of the connectors. The casing itself must be connected to
the shield braid and to pin 1 of the connectors.
SIGNAL
SCREEN
DMX 512
5 PIN
1
2
3
4
5
SIGNAL
8
3.3 Connecting the control signal line: DMX / Art-Net
