AXCOR SPOT 400 - 400 HC
1
3
2
1.1
ø22.9
Immagine ø17.5
20

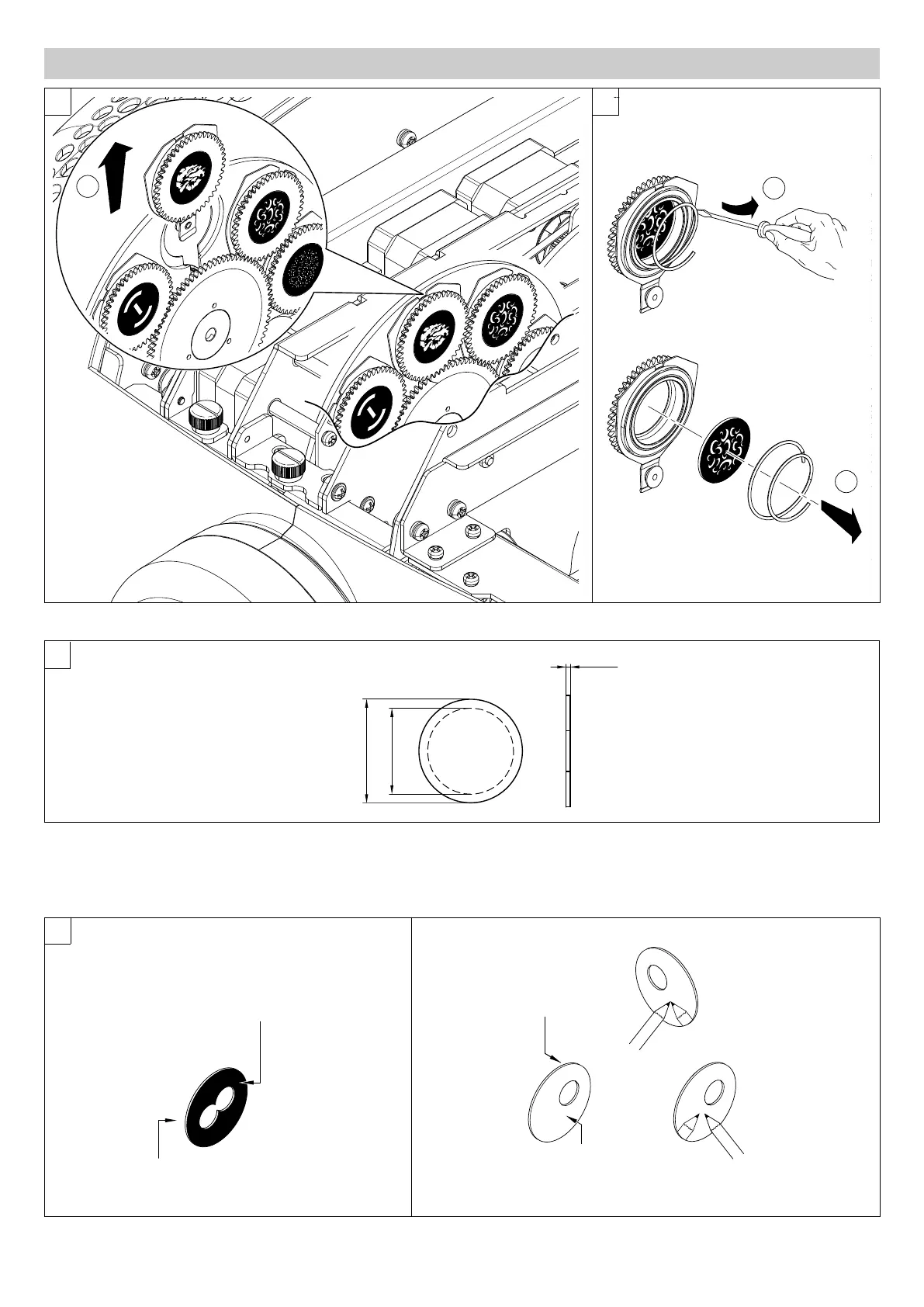

Replacing rotating gobos - Fig. 20
- The original gobos have a special coating designed specifically to resist to the high temperatures;
- The rotating gobo wheel only use dichroic glass gobos (it is not possible to use metal gobos);
- For more information contact Claypaky;
Bearing group replacement - Fig. 18-19
18 19
4.5 - Rotating gobos
Gobo orientation - Fig. 21
The pictures shown the correct gobos orientation.
GOBO DI VETRO DICROICI TIPO 1 GOBO DI VETRO DICROICI TIPO 2
21
To determine which side of a godo is coated, hold an odject up to it. On the
uncoated side, there is a space between the object and its reflection.
COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2
Grey/Black side
away from light source
Coated side towards
light source
Coated side
Uncoated side
Uncoated side
Reflective side towards light source
