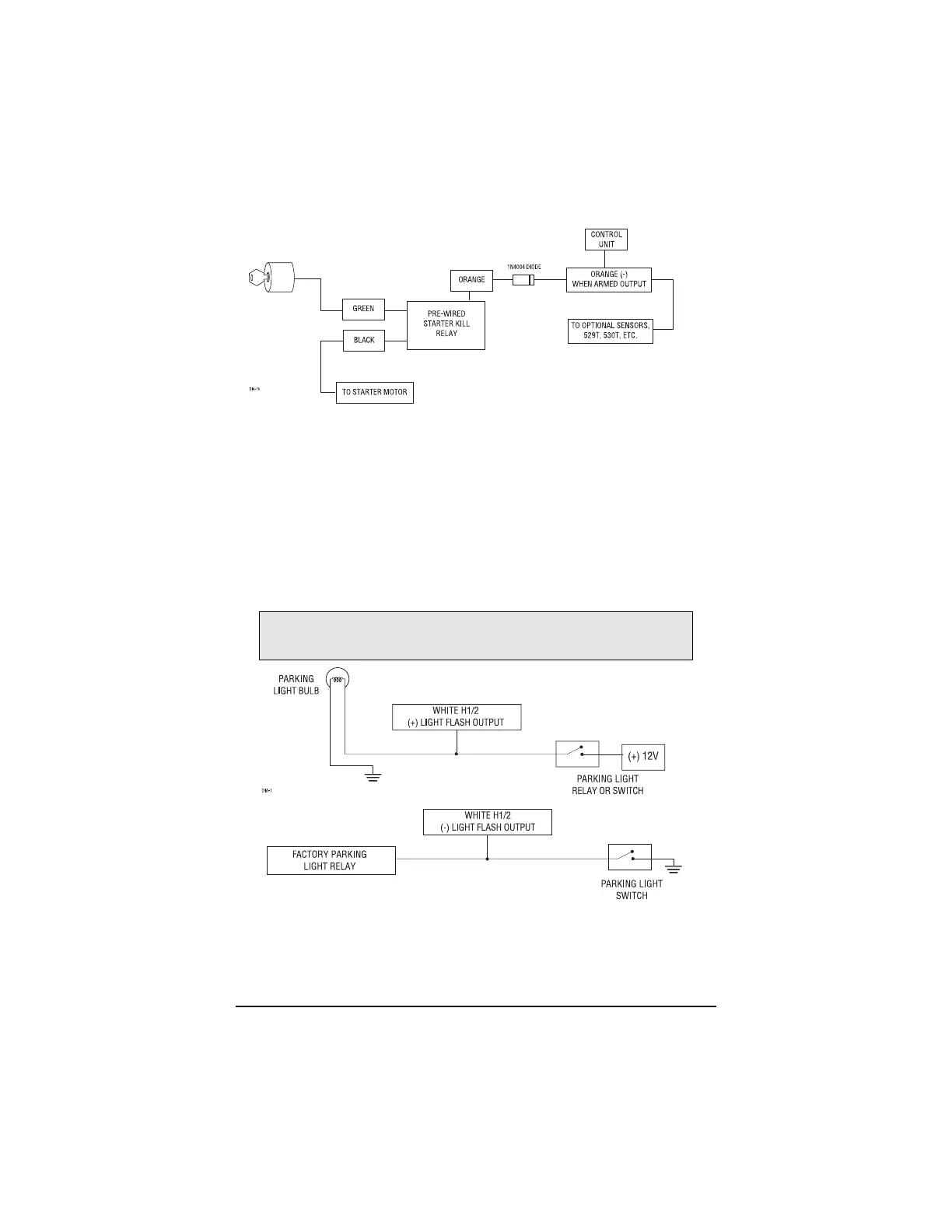

H1/2 WHITE (+/-) light flash output
As shipped, the H1/2 WHITE wire should be connected to the (+) parking light wire. If the light flash
polarity jumper is moved to the (-) position (see the Programming Jumper section of this installation
guide), this wire supplies a (-) 200 mA output. This is suitable for driving (-) light control wires in Toyota,
Lexus, BMW, some Mitsubishi, some Mazda, and other models.
NNoottee::
For parking light systems that draw 10 amps or more, the jumper must be switched to a (-) light flash
output (see the Programming Jumpers section of this guide). A standard automotive SPDT relay must be
used on the H1/2 light flash output wire.
IIMMPPOORRTTAANNTT!!
DO NOT connect this wire to a negative vehicle light flash wire before
changing the programming jumper to the negative polarity position or damage to vehicle
light circuit may occur.
