INSTALLATION/SETUP TRANSMIG 4RT
Manual 0-5245 3-27 INSTALLATION/SETUP
Art # A-11288
Ensure that the gas
cylinder is secured to
a building pillar, wall
bracket or otherwise
securely fixed in an
upright position.

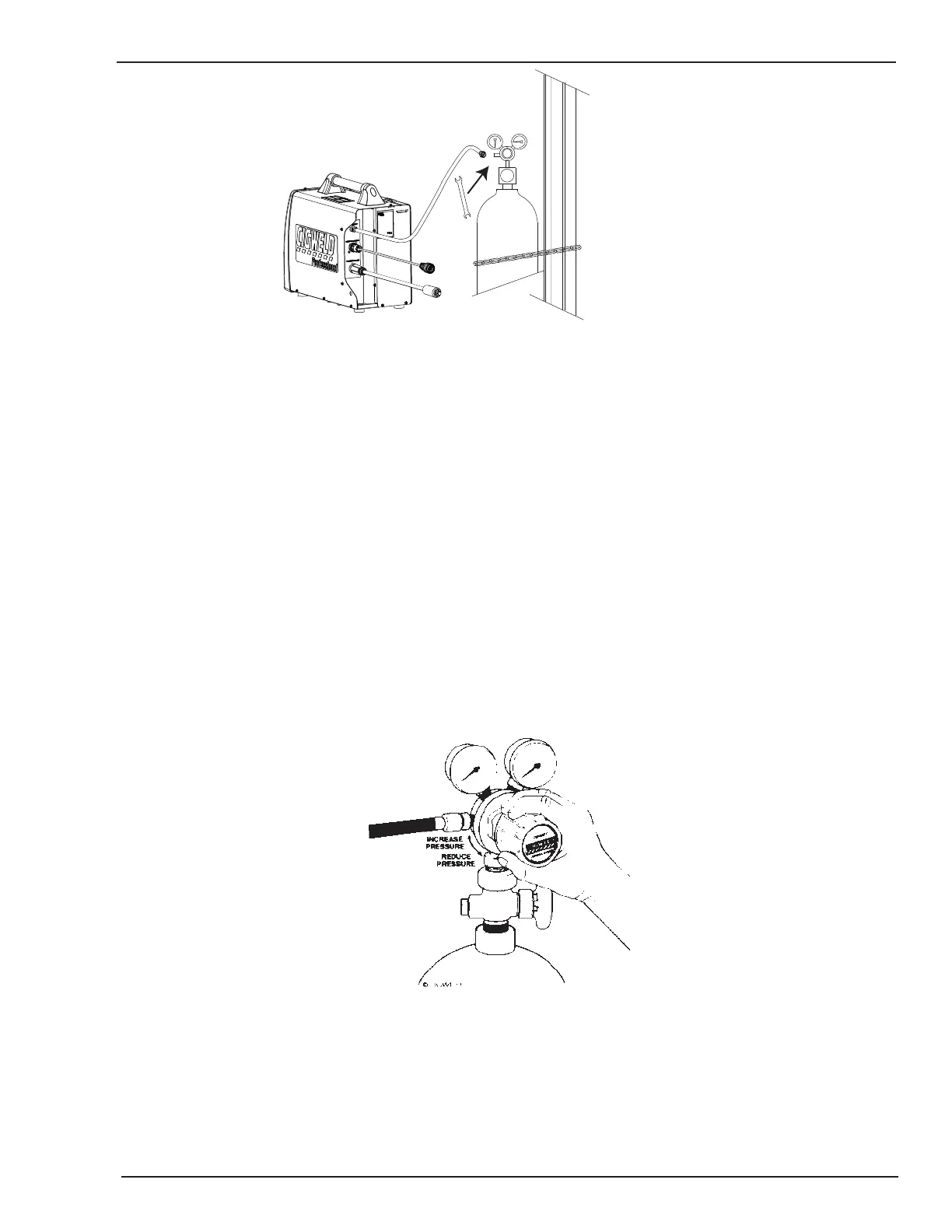

Figure 3-20: Attach gas line to proper inlet
5. To protect sensitive down-stream equipment a separate safety device may be necessary if the regulator is not
fitted with a pressure relief device.
Operation
With the regulator connected to cylinder or pipeline, and the adjustment screw/knob fully disengaged, pressurize as
follows:
1. Stand to one side of regulator and slowly open the cylinder valve. If opened quickly, a sudden pressure surge
may damage internal regulator parts.
2. With valves on downstream equipment closed, adjust regulator to approximate working pressure. It is recom-
mended that testing for leaks at the regulator connection points be carried out using a suitable leak detection
solution or soapy water.
3. Purge air or other unwanted welding grade shielding gas from equipment connected to the regulator by indi-
vidually opening then closing the equipment control valves. Complete purging may take up to ten seconds or
more, depending upon the length and size of the hose being purged.
Adjusting Flow Rate
Art: A-05088_AB
Figure 3-21: Adjust Flow Rate
With the regulator ready for operation, adjust working flow rate as follows:
1. Slowly turn adjusting screw/knob in (clockwise) direction until the outlet gauge indicates the required flow
rate.
