TRANSMIG 4RT INSTALLATION/SETUP
INSTALLATION/SETUP 3-26 Manual 0-5245
User Responsibilities
This equipment will perform safely and reliable only when installed, operated, maintained, and repaired in accordance
with the instructions provided. Equipment must be checked periodically and repaired, replaced, or reset as necessary
for continued safe and reliable performance. Defective equipment should not be used. Parts that are broken, missing,
obviously worn, distorted, or contaminated should be replaced immediately.
The user of this equipment will generally have the sole responsibility for any malfunction, which results from improper
use, faulty maintenance, or by repair by anyone other than an accredited repairer.
CAUTION
Match regulator to cylinder. NEVER CONNECT a regulator designed for a particular gas or gases to a cyl-
inder containing any other gas.

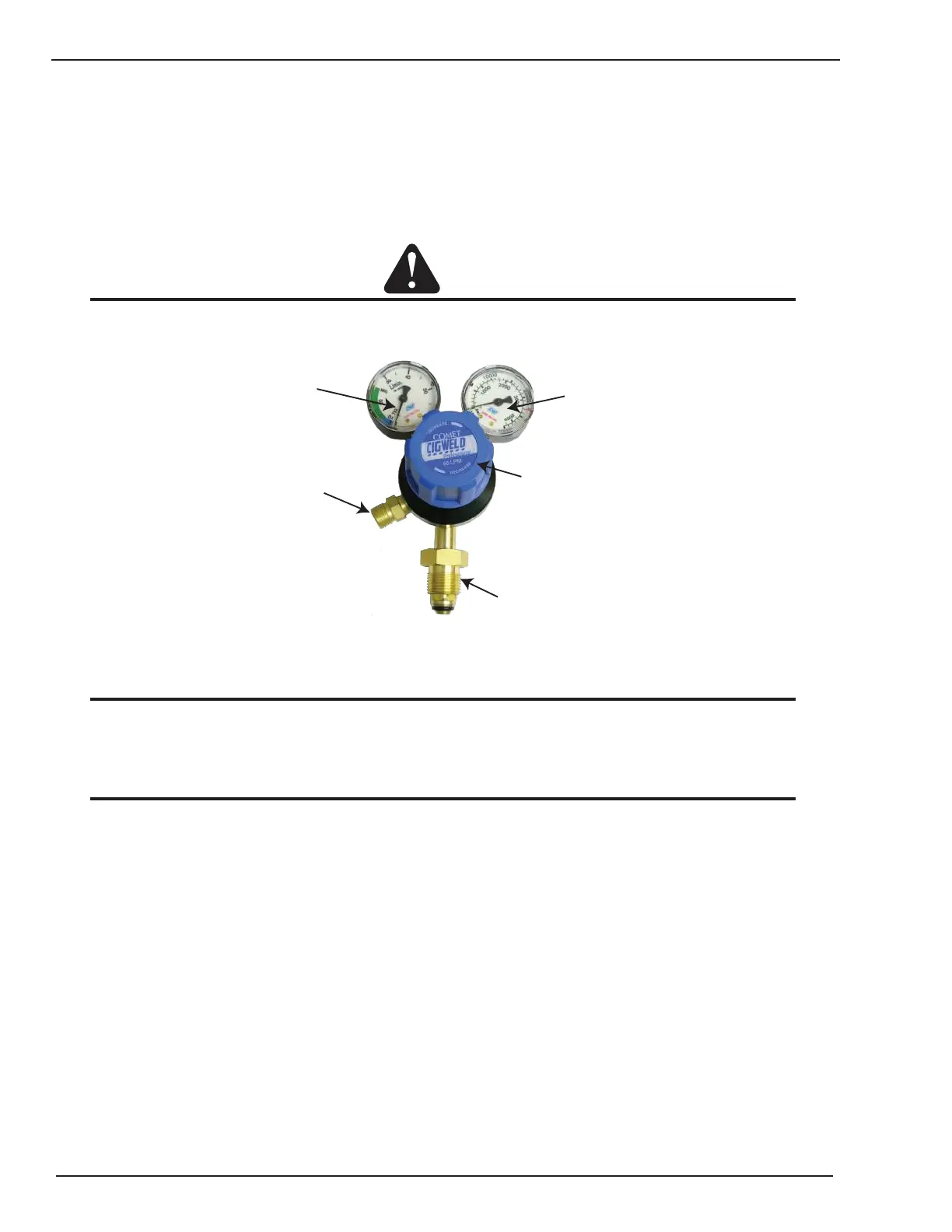

LOW PRESSURE
GAUGE (DELIVERY)
HIGH PRESSURE
GAUGE (SUPPLY)
INLET
CONNECTION
OUTLET
CONNECTION
PRESSURE
ADJUSTING
SCREW
Art # A-10108
Figure 3-19: Adjusting Flow Rate
NOTE
The regulator/flow meters used with argon based and carbon dioxide shielding gases are different. The
regulator/flow meter supplied with certain welders is for argon based shielding gases. If carbon dioxide is
to be used a suitable carbon dioxide regulator/flow meter will need to be fitted.
NOTE
All valves downstream of the regulator must be opened to obtain a true flow rate reading on the outlet
gauge. (Welding power source must be triggered) Close the valves after the pressure has been set.
Installation
1. Remove cylinder valve plastic dust seal. Clean the cylinder valve outlet of impurities that may clog orifices and
damage seats before connecting the regulator.
Crack the valve (open then close) momentarily, pointing the outlet away from people and sources of ignition.
Wipe with a clean lint free cloth.
2. Match regulator to cylinder. Before connecting, check that the regulator label and cylinder marking agree and
that the regulator inlet and cylinder outlet match. NEVER CONNECT a regulator designed for a particular gas
or gases to a cylinder containing any other gas.
3. Connect the regulator inlet connection to cylinder or pipeline and tighten it firmly but not excessively, with a
suitable spanner.
4. Attach the gas line from the back of the 4RT to the regulator output.
