INSTALLATION/SETUP TRANSMIG 4RT
Manual 0-5245 3-25 INSTALLATION/SETUP
3.18 Wire Reel Brake
The wire reel hub incorporates a friction brake which is
adjusted during manufacture for optimum braking. If it
is considered necessary, adjustment can be made by
turning the tri-lobe nut inside the open end of the wire
reel hub. Clockwise rotation will tighten the brake. (Refer
to Figure 3-18).
Art # A-11287
Pressure
Adjustment
Knobs
Wheel Brake adjusting tri-lobe nut

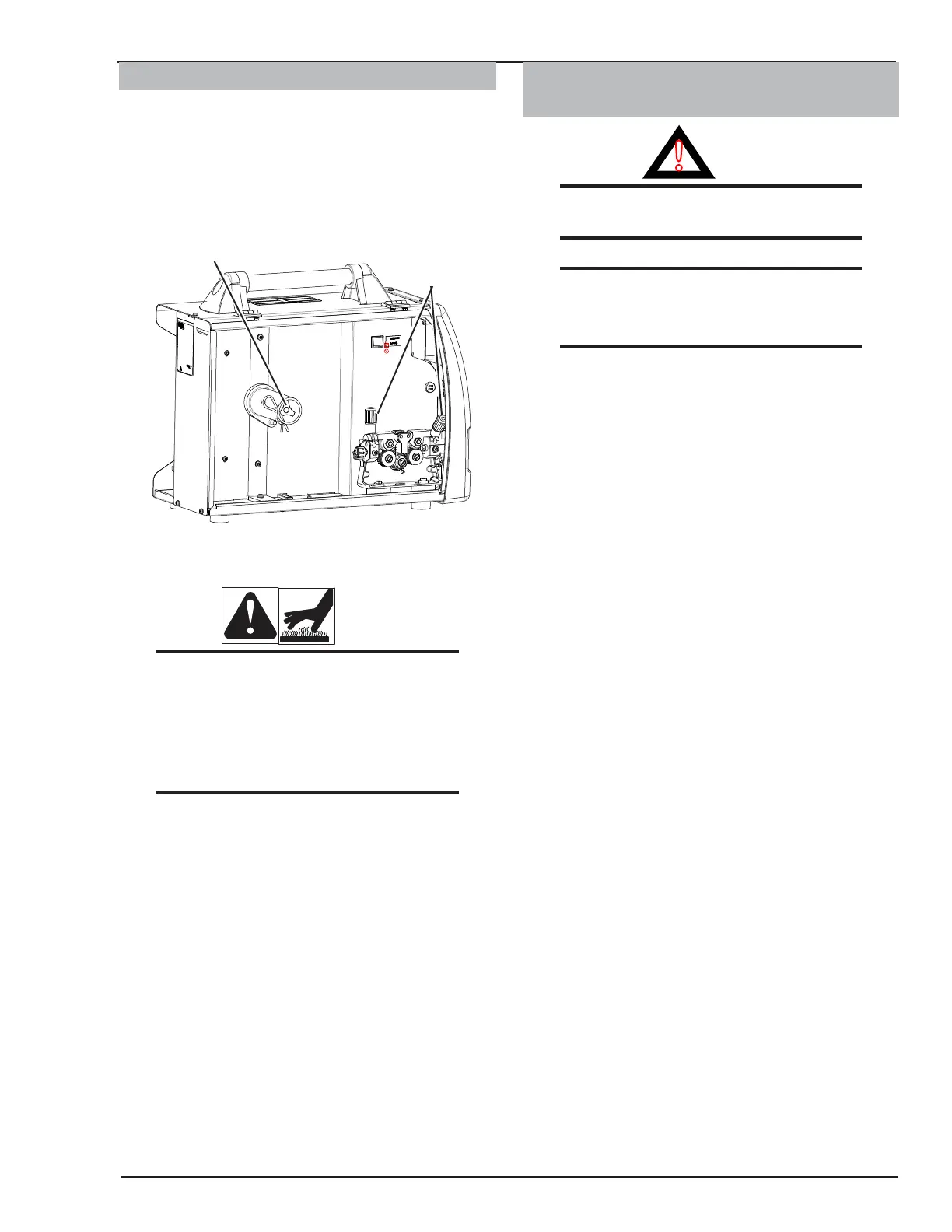

Figure 3-18: Wheel Brake (Wire not installed)
CAUTION
Excessive tension on the brake will cause rapid
wear of mechanical wire feed parts, over heat-
ing of electrical componentry and possibly an
increased incidence of wire Burnback into the
contact tip.
NOTE
Correct adjustment will result in the wire reel
circumference continuing no further than
20mm after release of the MIG Torch trigger
switch. The wire should be slack without be-
coming dislodged from the reel.
3.19 Shielding Gas Regulator Operating
Instructions
!
WARNING
This equipment is designed for use with weld-
ing grade (Inert) shielding gases only.
NOTE
Shielding Gas Regulator not included in the
Transmig 4RT.
NOTE
Shielding Gas is not required if the unit is
used with self shielded FCAW (flux cored arc
welding) wires.
Shielding Gas Regulator Safety
This regulator is designed to reduce and control high
pressure gas from a cylinder or pipeline to the working
pressure required for the equipment using it.
If the equipment is improperly used, hazardous
conditions are created that may cause accidents. It is
the users responsibility to prevent such conditions.
Before handing or using the equipment, understand and
comply at all times with the safe practices prescribed in
this instruction.
SPECIFIC PROCEDURES for the use of regulators are
listed below.
1. NEVER subject the regulator to inlet pressure
greater than its rated inlet pressure.
2. NEVER pressurize a regulator that has loose or
damaged parts or is in a questionable condition.
NEVER loosen a connection or attempt to remove
any part of a regulator until the gas pressure has
been relieved. Under pressure, gas can danger-
ously propel a loose part.
3. DO NOT remove the regulator from a cylinder
without first closing the cylinder valve and releas-
ing gas in the regulator high and low pressure
chambers.
4. DO NOT use the regulator as a control valve. When
downstream equipment is not in use for extended
periods of time, shut off the gas at the cylinder
valve and release the gas from the equipment.
5. OPEN the cylinder valve SLOWLY. Close after use.
